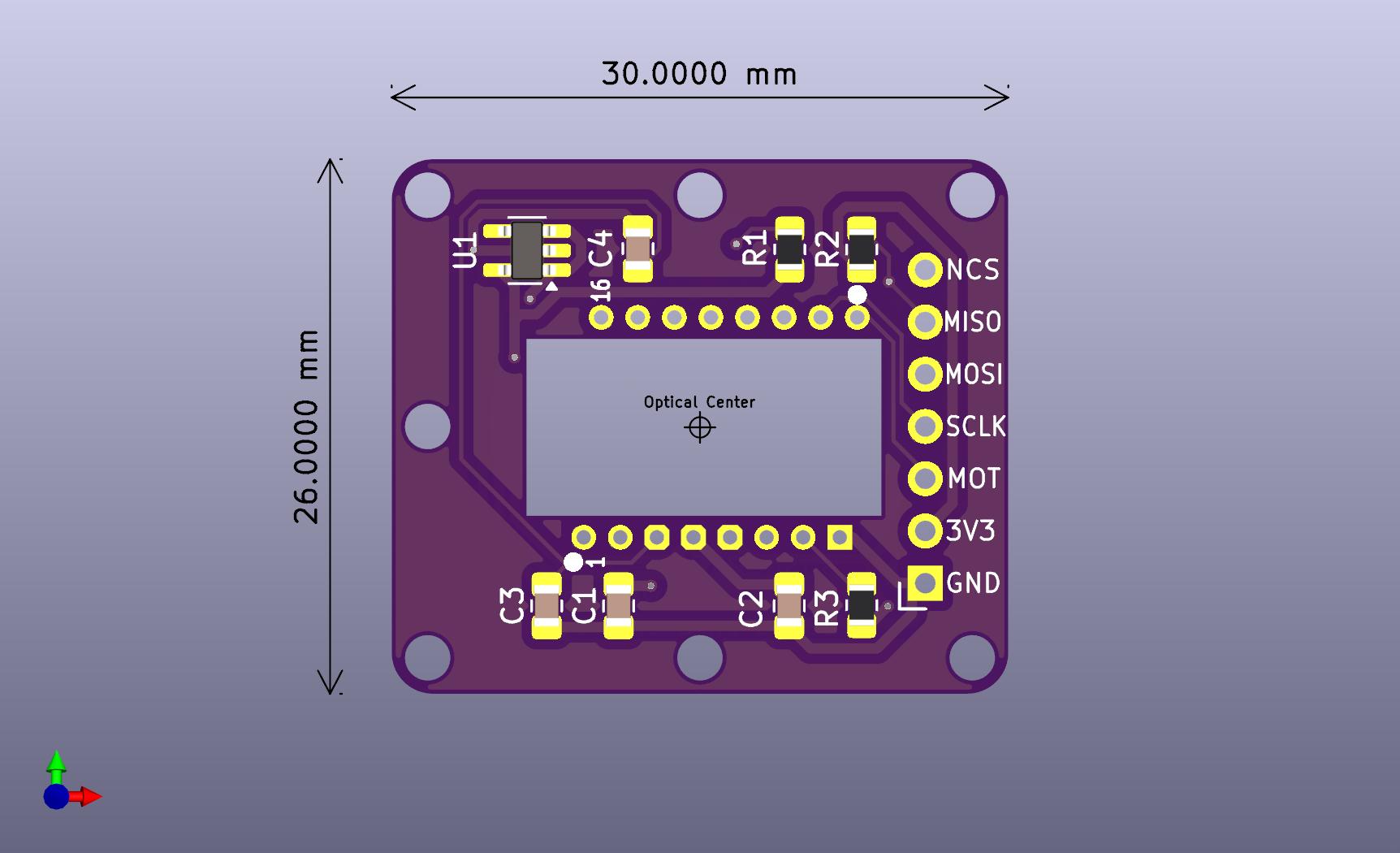

| 1 | 2 | 3 | 4 | 5 | 6 | 7 |
|---|---|---|---|---|---|---|
| NCS | MISO | MOSI | SCLK | MOTION | 3V3 | GND |
| Reference | Value | Footprint | Qty |
|---|---|---|---|
| C1, C4 | 0.1uF | 0805 | 2 |
| C2 | 1uF | 0805 | 1 |
| C3 | 4.7uF/10V | 0805 | 1 |
| R2, R3 | 10k | 0805 | 2 |
| R1 | 39R | 0805 | 1 |
| U1 | TLV70019DDCR | SOT23-5 | 1 |
| U2 | PMW3360DM-T2QU | 1 |
This project is licensed under the CERN OHL-P v2. You may use, distribute, and modify this design under the terms of the CERN OHL-P v2. Original design by snize.
