Thingamaboard

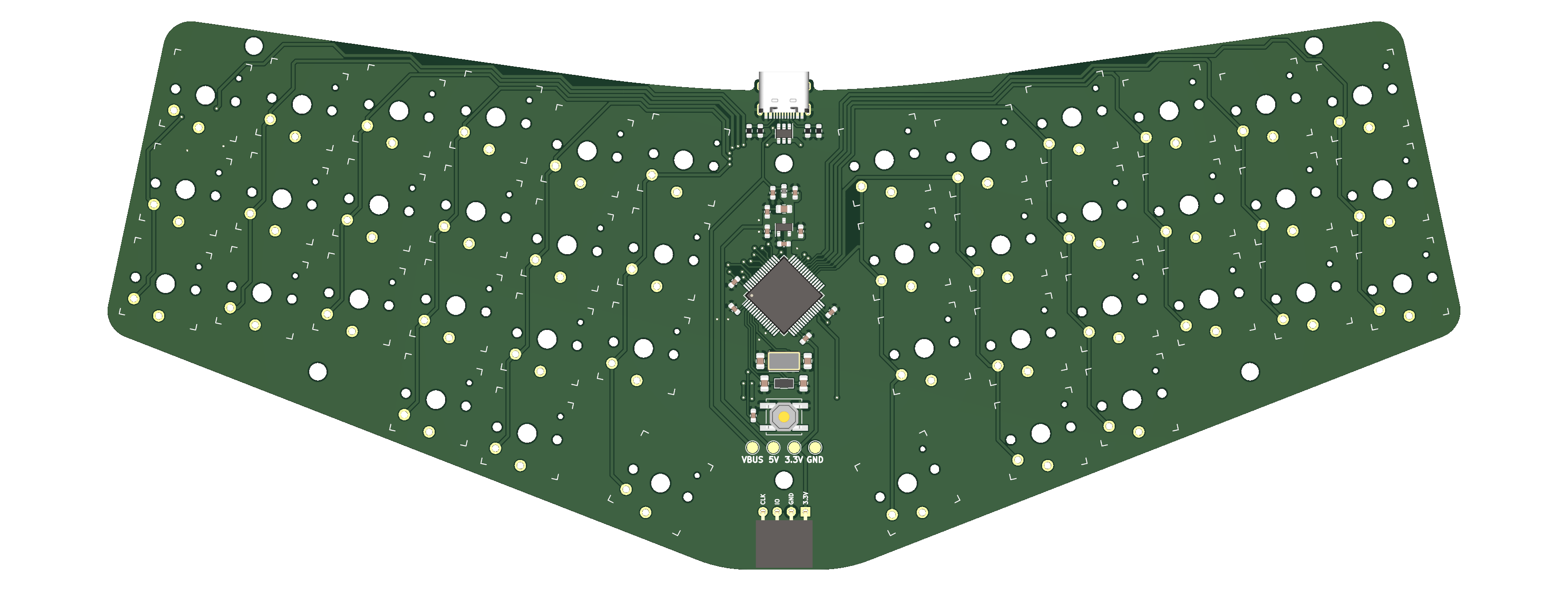

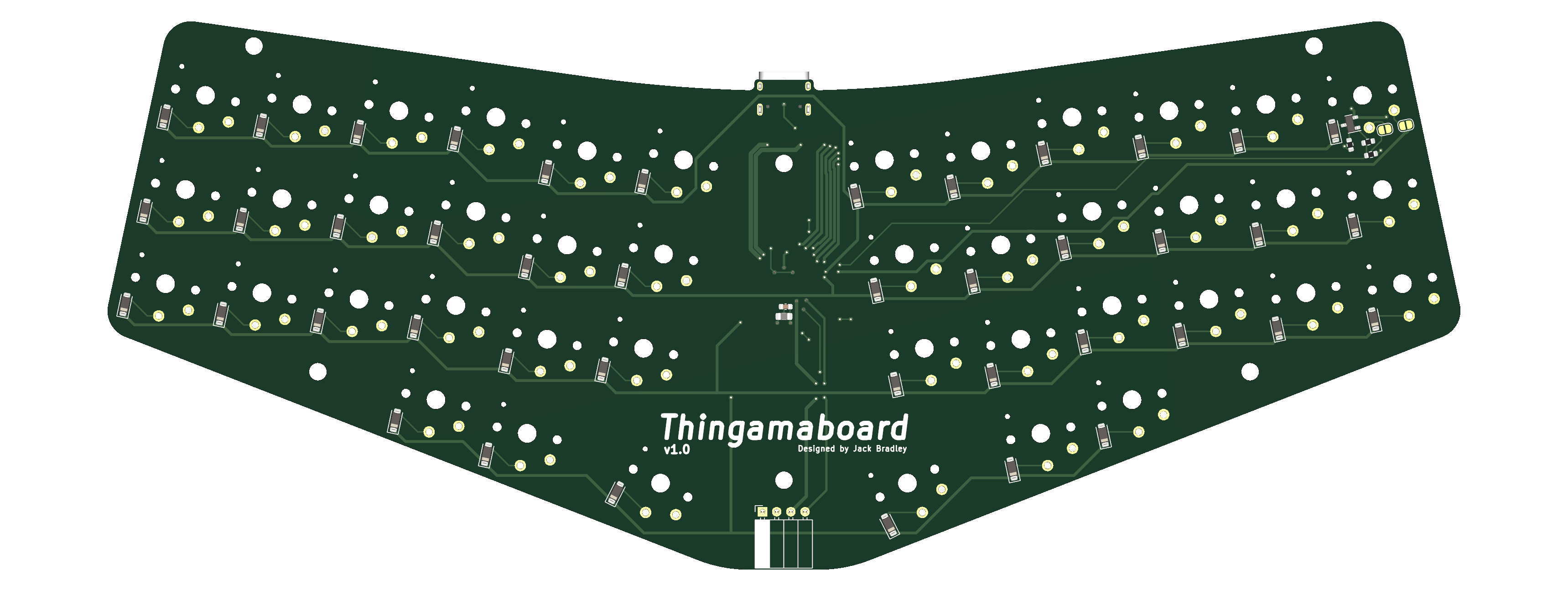

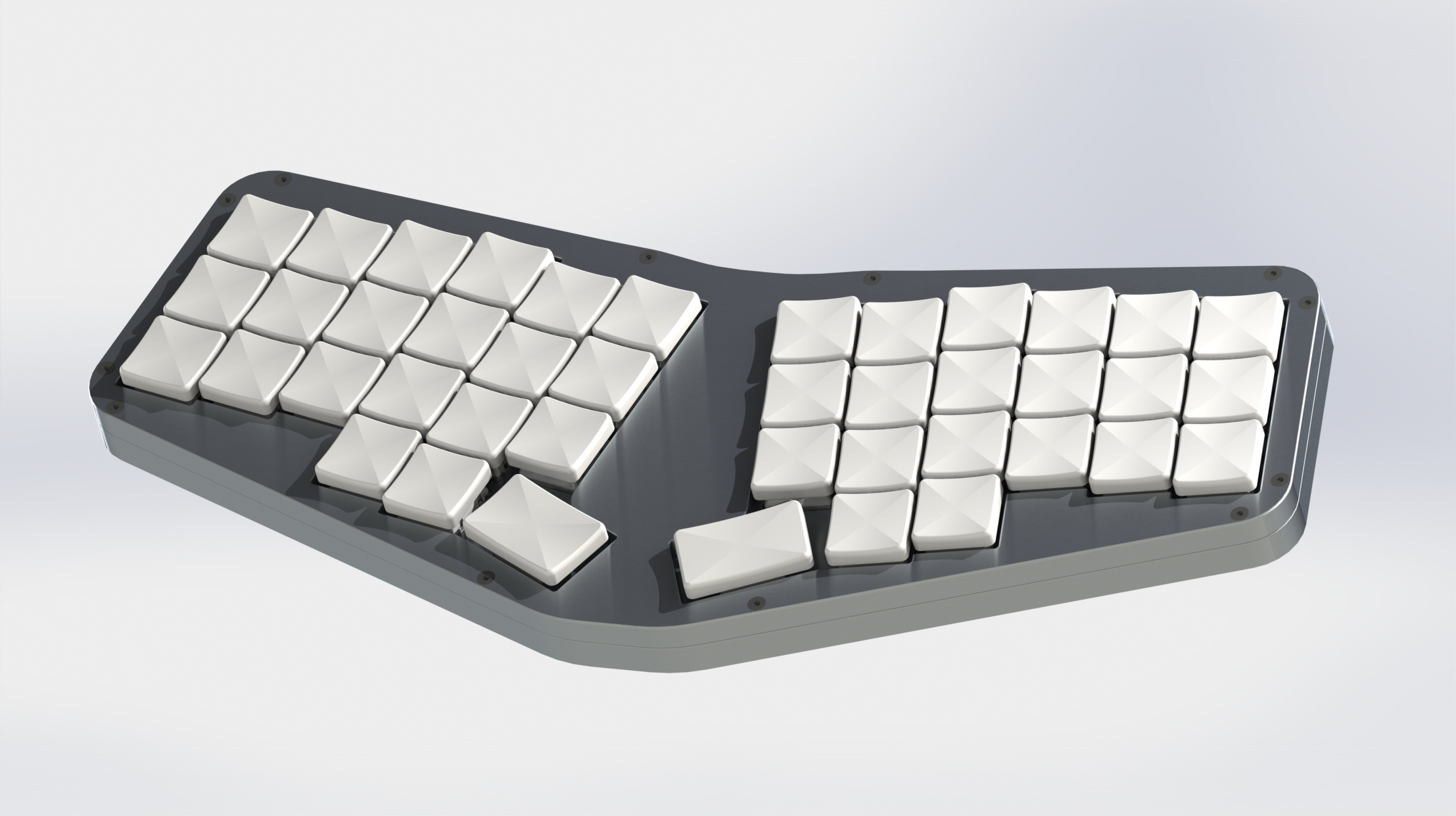

A custom keyboard designed and manufactured for myself. Programmed using STM32CubeIDE and Jetbrains Fleet, designed using Ergogen, AutoCAD and Solidworks. This board was developed with portability and ergonomics in mind. It adopts a columnar, alice-like layout with three-key thumb clusters, allowing for ergonomic typing in a relatively small and portable form factor.
