README

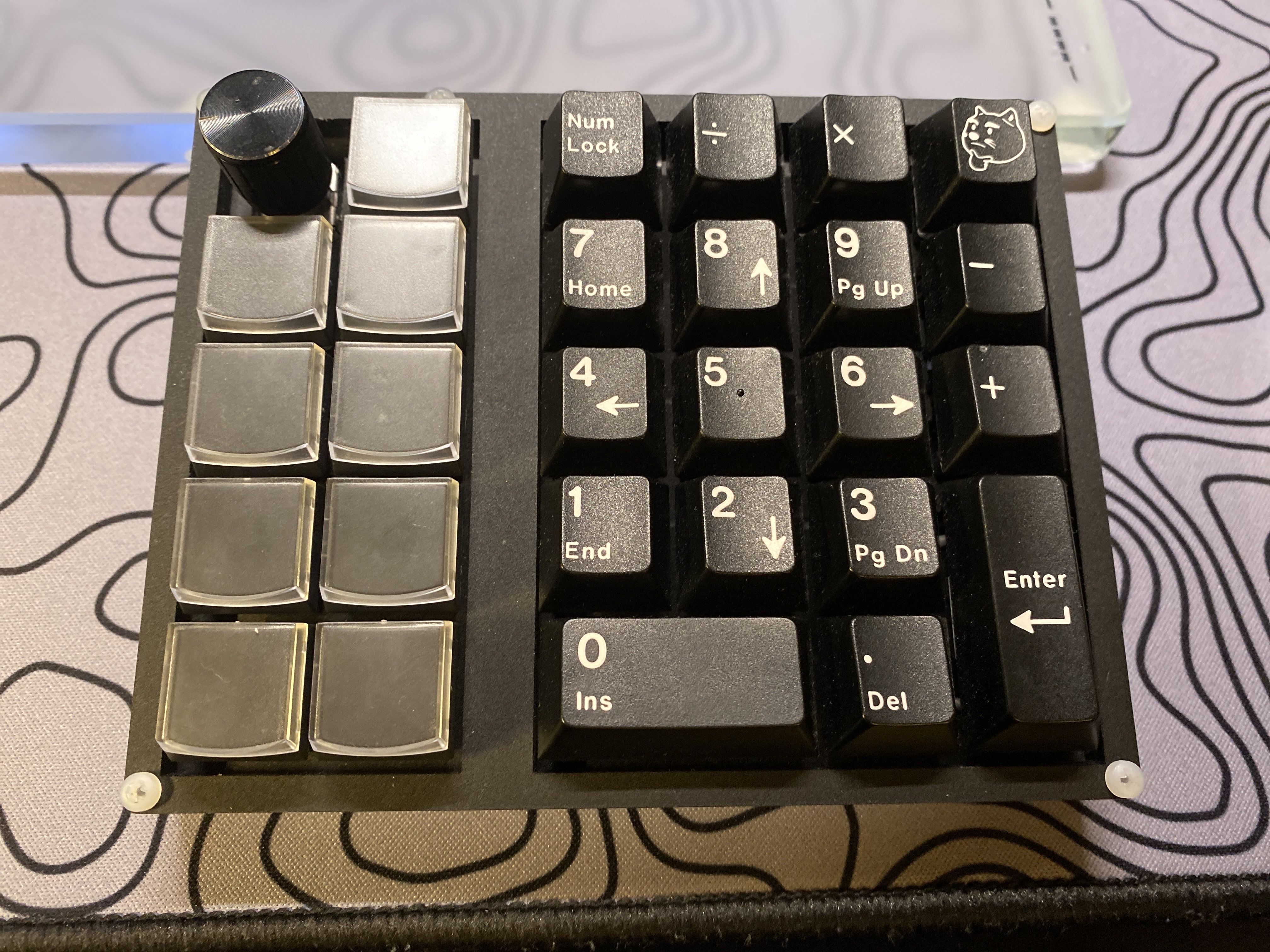

Ahoy -- XT Macropad

Ahoy is a simple but functional macropad designed for people who need both a numpad and a macro column for work/productivity. The features include:

  • Numpad with split mod support
  • 10 additional keys for macros
  • Rotary encoder support on top left key
  • 8 addressable RGB LEDs
  • Num, Caps, Scroll Lock Indicator LEDs
  • USB C (USB 2.0)

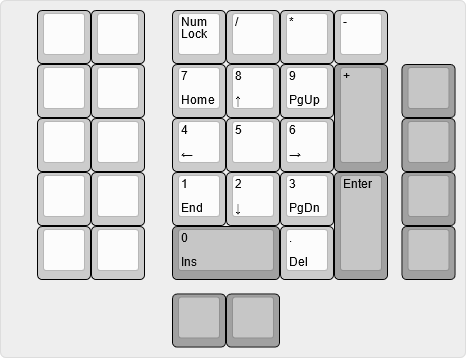

The layout for the macropad can be seen below:

Instructions

To replicate the PCB and the case, the guide can be found below:

Project Status

  • Design PCB
  • Design Case
  • Order Prototypes
  • Create bootloader
  • Create QMK/VIA firmware
  • Revise prototypes

Todo List

  • Revise LED cutouts on acrylic case
  • (Optional) add art/silkscreen
  • Clear @todo 's
  • Update to modern QMK standards!

Licensing

The following project was built on Gondolindrim's Acheron Project and ai03's PCB guide and design files. As such, the licensing will follow their licensing arrangement on top of this project's licensing, which can be found here.
