UberClock PCB

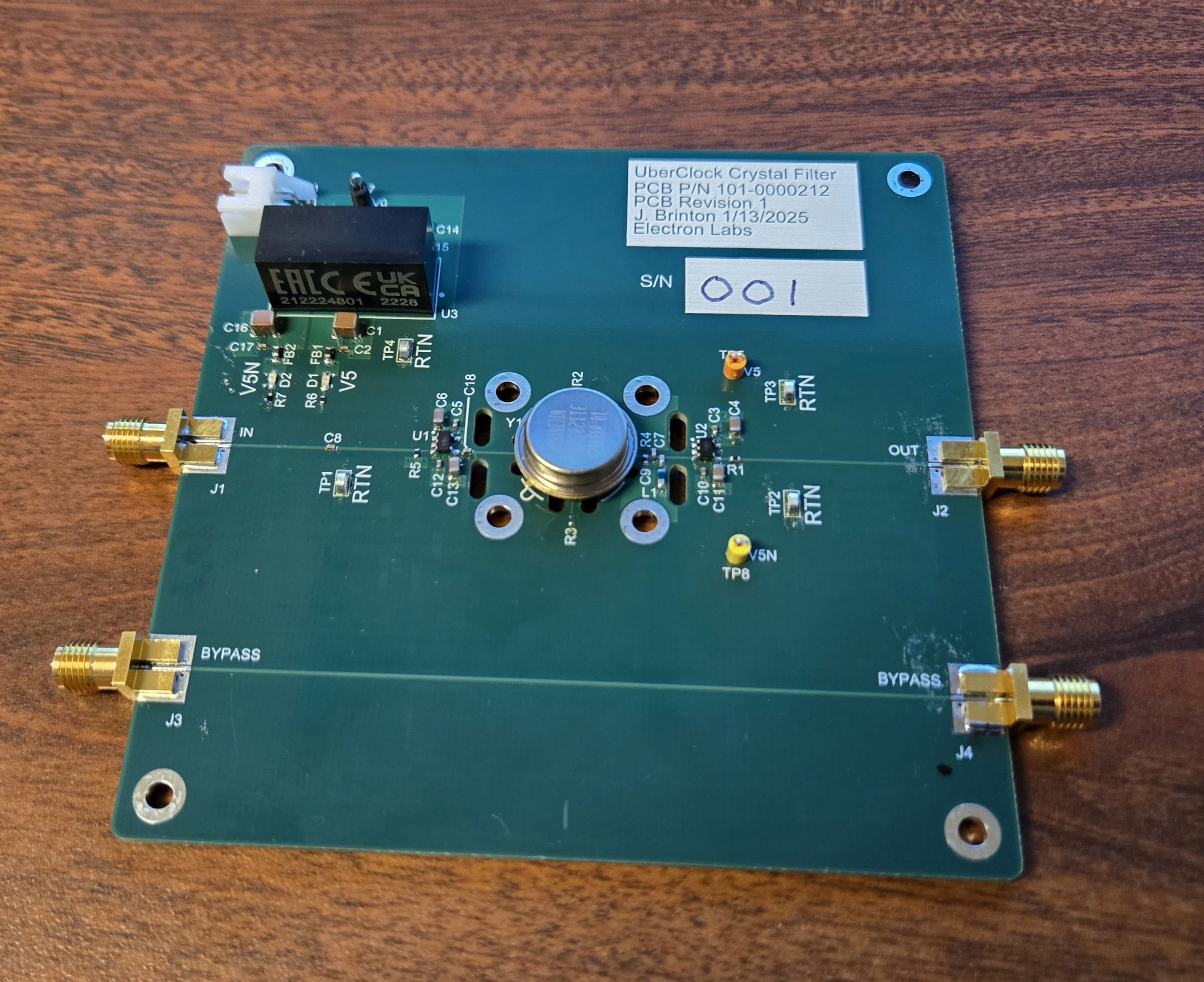

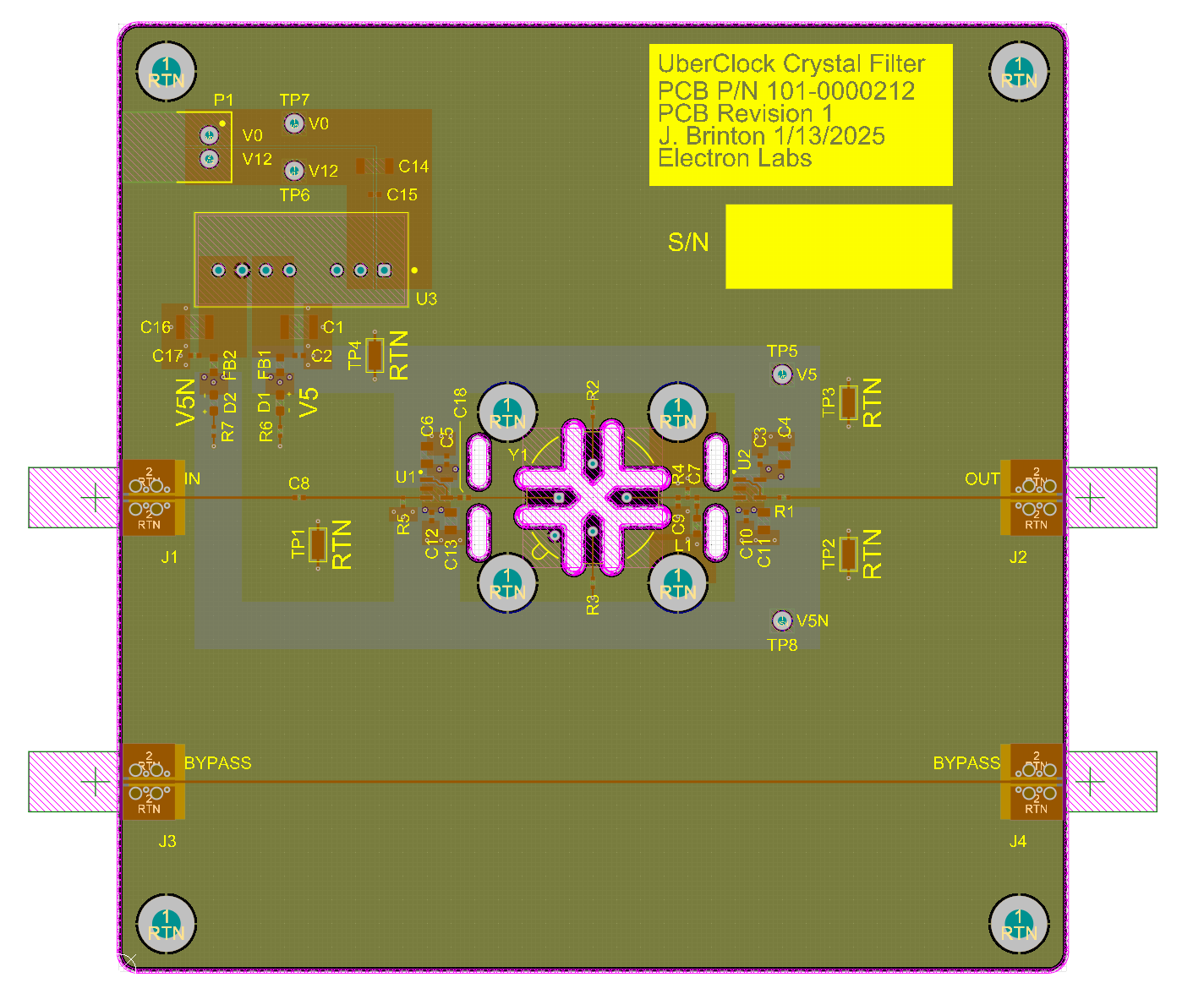

This is the PCB design for the Crystal Filter for the UberClock multi-mode oscillator.

To download gerber files, schematics, or other documentation, see Latest Release.

Details

Board dimensions: 100x100mm

Tools: Altium Designer Professional (23.11.1)

Errata

1. See issue #1 for details and resolution. Crystal resonator footprint wrong. Pin numbers are mirrored.

Measurements

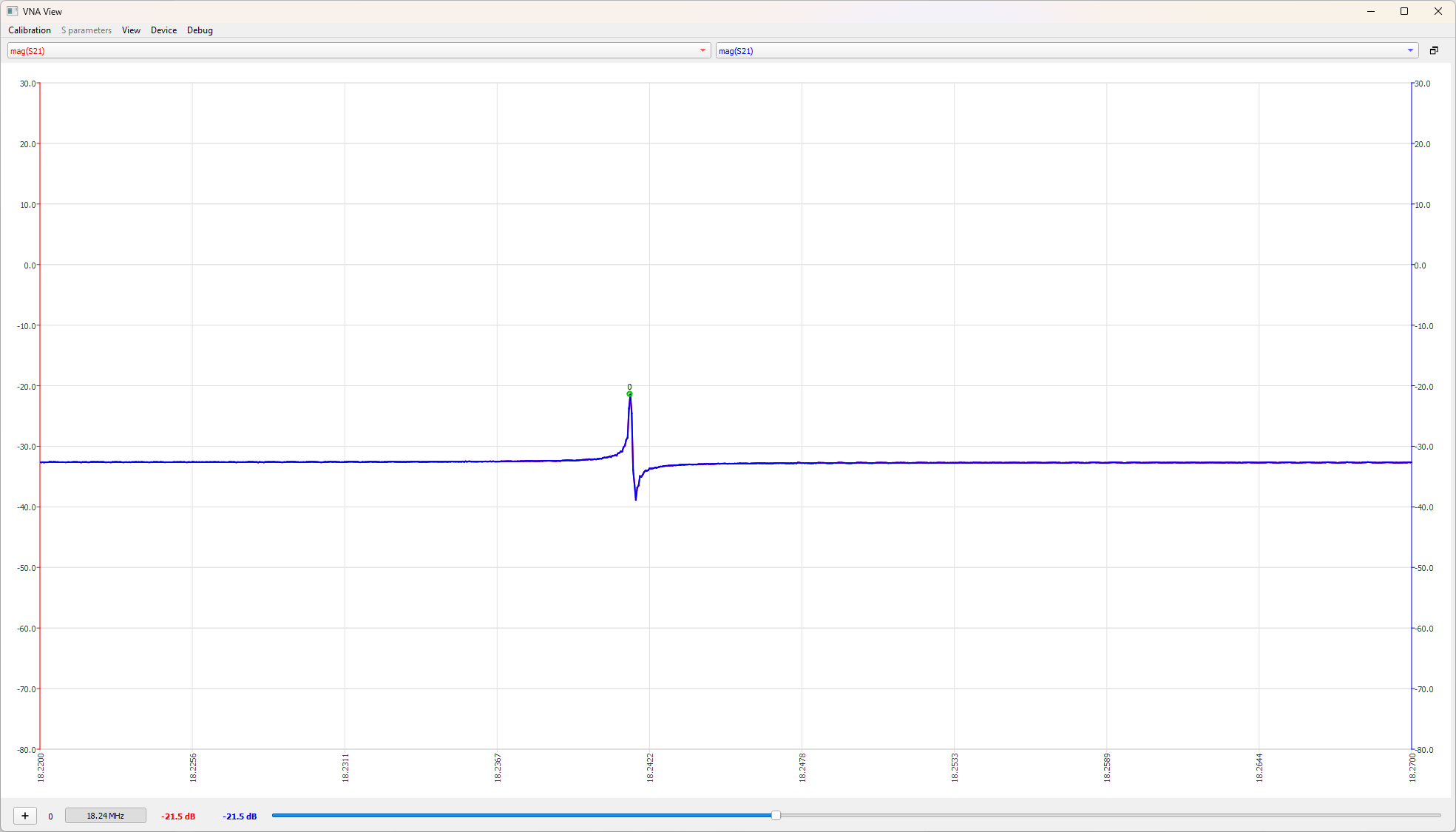

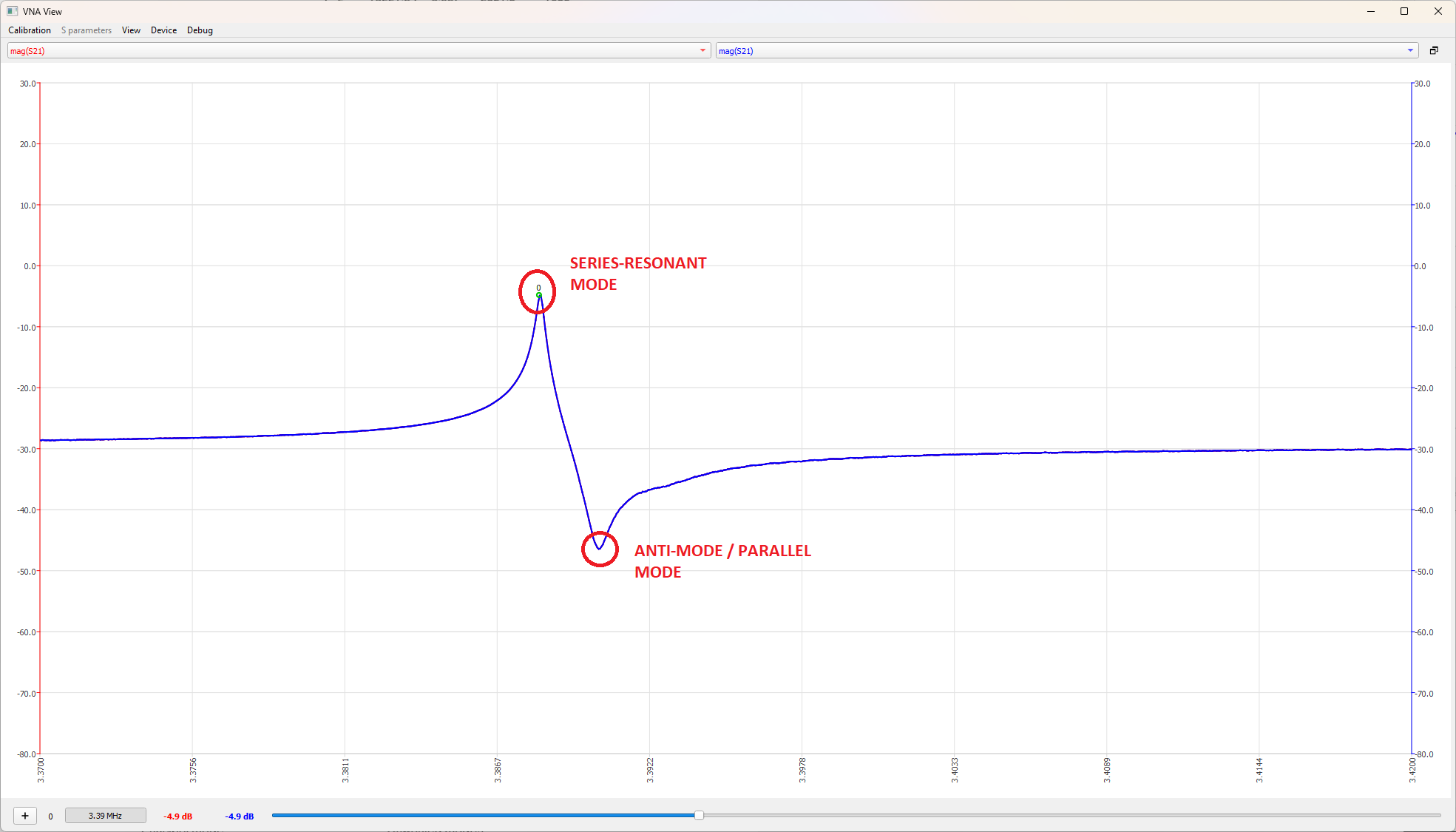

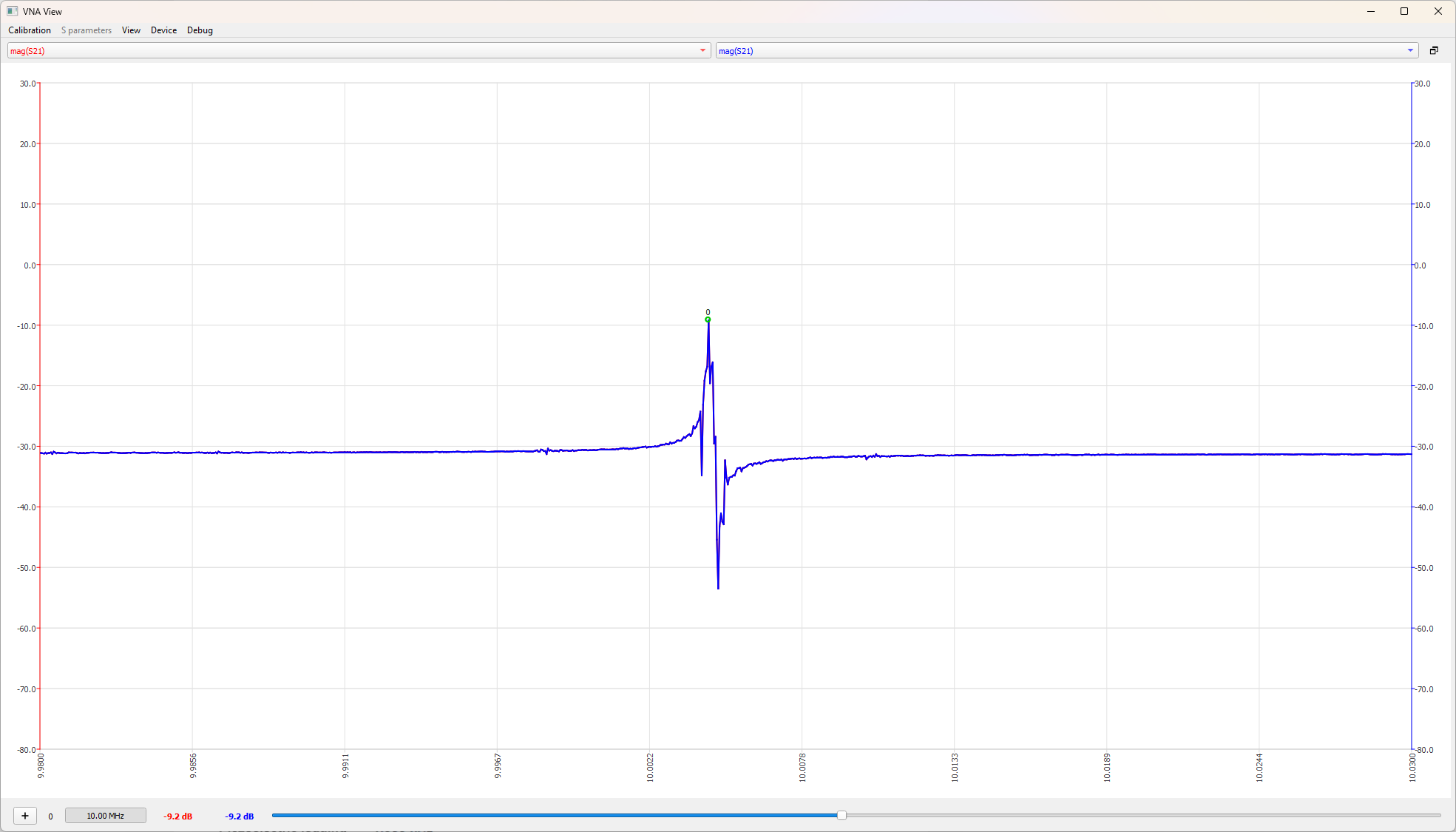

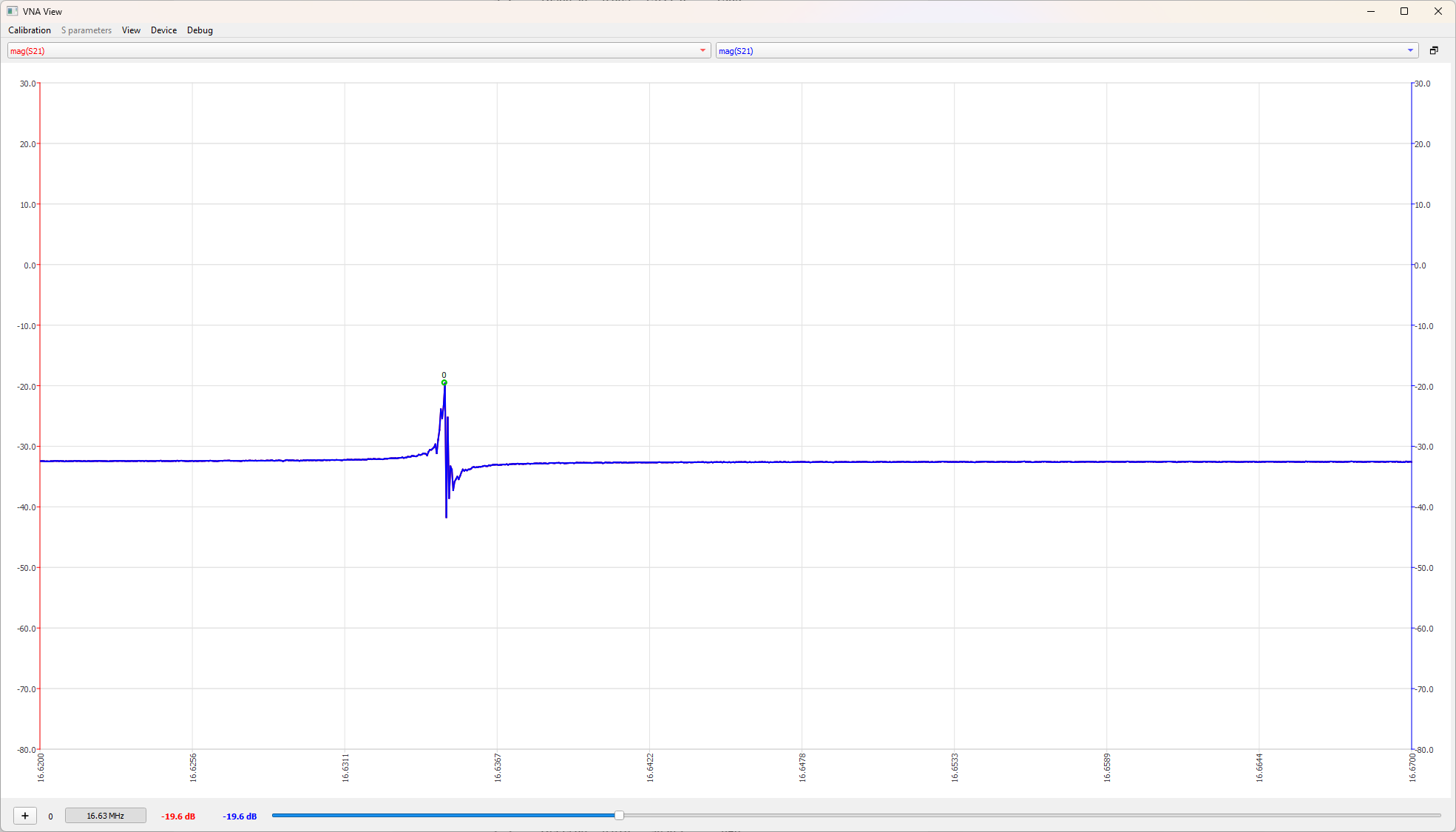

Measurements taken on NanoVNA V2 (https://nanorfe.com/nanovna-v2.html)

Sponsor

This work received donation from: https://nlnet.nl/project/uberClock/
