Description

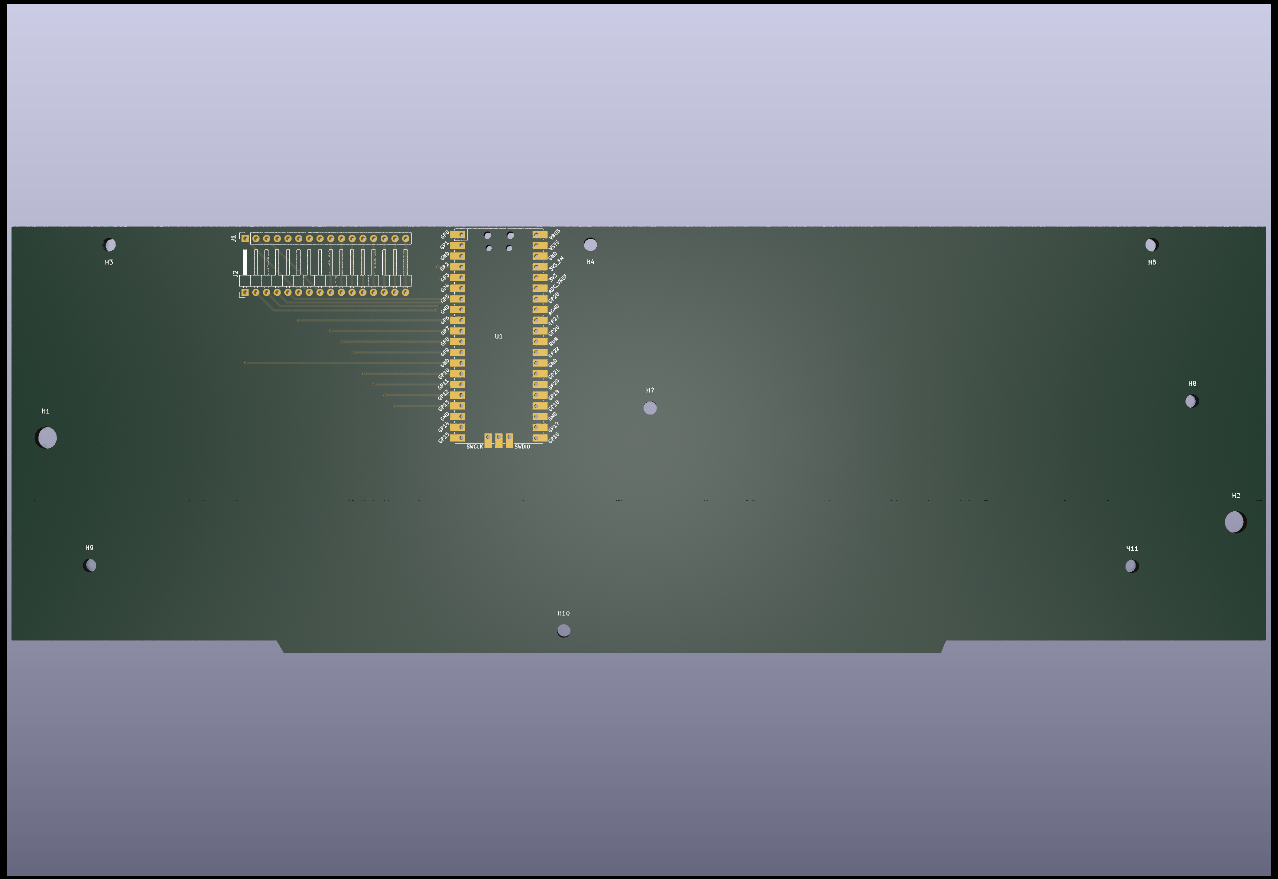

Bottom layer board providing mounting points and conversion capabilities

README

Reproduction Keyboard for Dragon 32 and 64

This project provides the design for a reproduction keyboard to fit the Dragon 32 and 64 home computers. The design here is a complement to the main keyboard PCB. This provides mounting points to the case and additional wiring to convert the board to the CoCo connector

The conversion works by letting the top board plugin vertically while letting the CoCo connector plugin underneath horizontally

Future Plans

To further increase functionality the plan is to add support to make the keyboard HID compliant by the addition of a cheap microcontroller board such as an arduino or a pico
