fat8

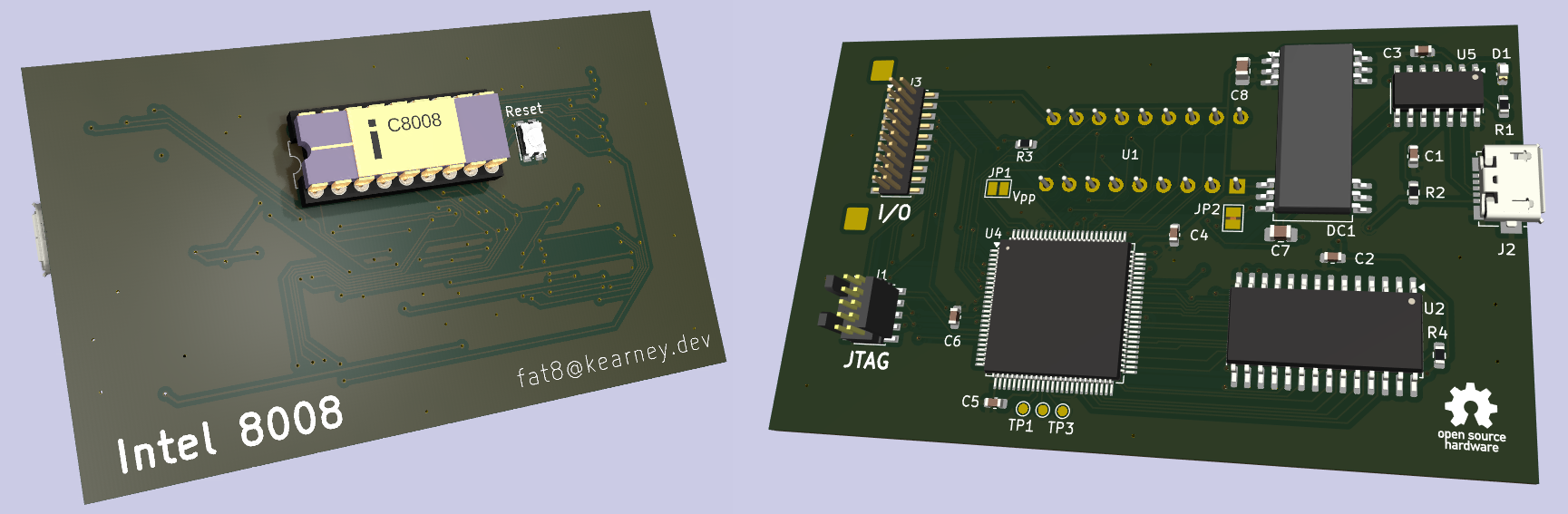

A physically tiny, but fat in capability Intel 8008 SBC. Smaller than a business card although quite a bit thicker.

This is not pure vintage design, rather its intent is to keep the flavor of one by pairing a real 8008 CPU with its maximum RAM footprint as a vehicle for running larger software like Scelbi's SCELBAL and GALAXY, emulators, and other fun projects.

• 8008 CPU running at ~ 50K instructions per second (500 KHz clock).
• 32KB of nonvolatile RAM (16KB addressable at a time)
• Connects to a PC as a USB serial terminal
• 3 input and 3 output ports available on an expansion connector
• Machine-level monitor program
• Prebuilt images for SCELBAL and GALAXY

Hardware page
Software page
Tools page

Operation

1. Connect to USB
2. Open serial terminal program, for example minicom
3. Select the new port (probably /dev/ttyACM0) and set for to 2400 8N1
4. Press 'Reset' button
5. You should see the monitor prompt. Press '?' for a list of commands.

Licenses

Software and tools : BSD-3-Clause
Hardware and CPLD programming : CERN Open Hardware Licence Version 2 - Weakly Reciprocal

SPDX-License-Identifier: BSD-3-Clause
SPDX-License-Identifier: CERN Open Hardware Licence Version 2 - Weakly Reciprocal
