cm4-carriers

About

This repository contains various Raspberry Pi Compute Module 4 (CM4) carrier boards designed with specific applications in mind.

It also contains "template" boards from which application-specific boards can be quickly derived.

Boards

cm4-carrier-net

About

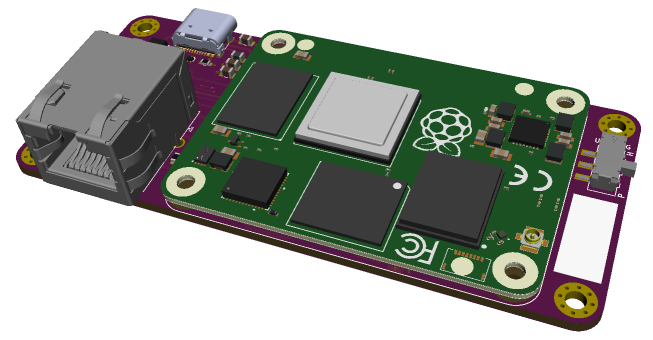

A carrier board that provides the CM4 with an Ethernet interface.

This board can also be used to program the eMMC memory for use on other carrier boards.

Features
  • Gigabit Ethernet
  • USB Type-C 5V power and data (USB 2.0)
  • Micro SD card slot
