some HATs for the glasgow

okay there's just one so far but i've got another one i just haven't put together yet. it's pretty simple, too.

kicad library

in the 'kicadlib' directory, and the Releases area of github, there's a downloadable library you can install into kicad which includes two symbols and a footprint for making glasgow HATs. see the README in that directory for more details.

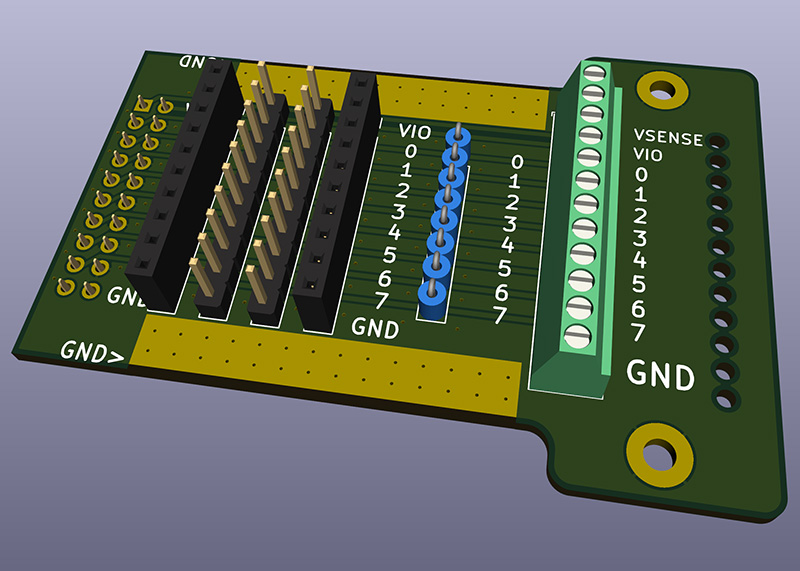

super breakout screw terminal hat

the name could use some work. brings the pins multiple ways, ending in screw terminals with some holes through the PCB for optional strain relief.

this was created when i was working on interfacing with something through a cable i'd cut in half. i needed to bring the individual wires into screw terminals, ideally keeping them from pulling out. i also had to put a logic analyzer and a scope on some of the lines to figure out what was going on. this would've been really handy.

related content

• my glasgow fork has the various applets i've written, in it.
• x16glasgow is a HAT which adapts the glasgow to the Commander X16's bus as an MMIO device.
