The Mender Shield illustrates the capability to run a Mender client on heterogeneous platforms such as RaspberryPi (Linux based) and MCUs (RTOS/bare metal).

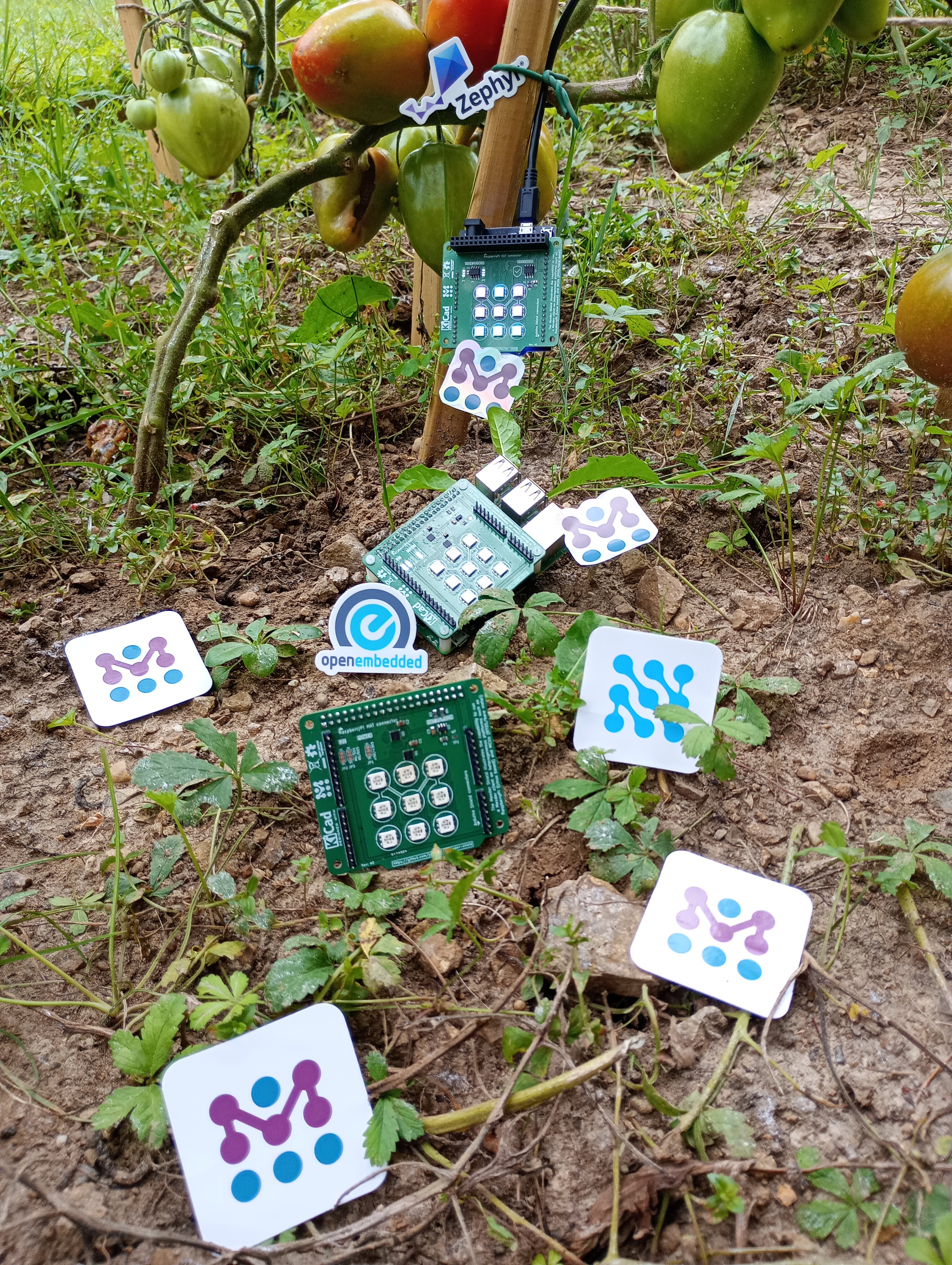

The following picture shows the Mender devices in the field with the mender-shield on the front, RaspberryPi and ESP32 platforms in the back:

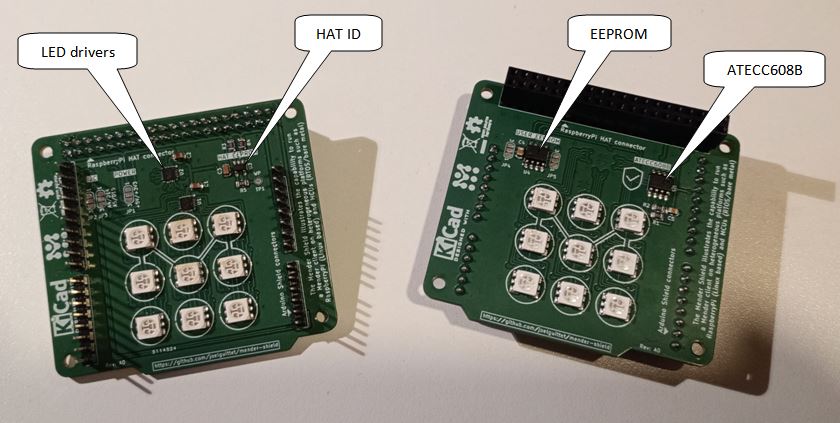

The following picture shows both sides of the mender-shield:
Mender MCU client is an open source over-the-air (OTA) library updater for MCU devices. Check-out the source and demonstration examples!
The project has been created with Kicad, you can browse the project on KiCanvas. Gerber files used to manufacture the board are provided.
The software supports includes a script to perform a very simple demonstration on Raspberry Pi 3 device and an ESP-IDF based application used with the Wemos D1 r32 ESP32-based evaluation board.
