Description

VCO core built around the SSI2130 chip

README

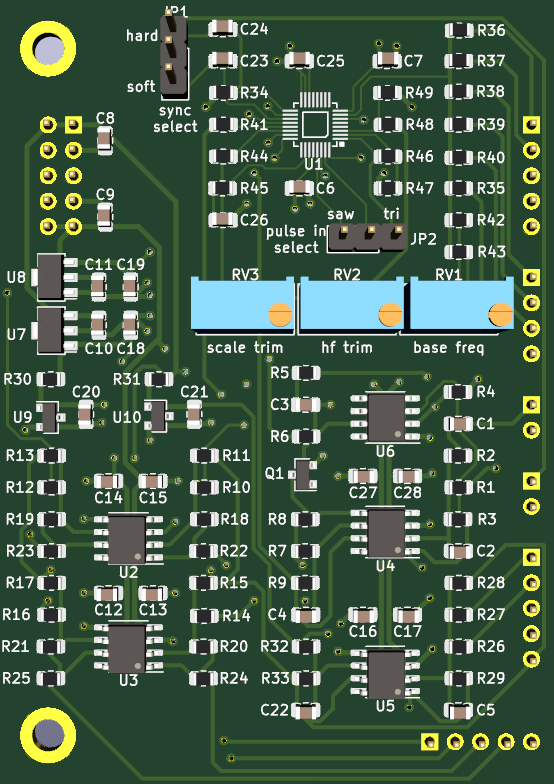

SSI2130 based VCO PCB

Features:

• Sine, Triangle, Sawtooth, and variable Pulse waves simultaneously available.
• All waveforms +/- 5vpp.
• Three 1 volt/octave inputs
• Through-zero linear FM
• Sync (choose hard or soft)
• PWM modulation inputs (choose triangle or saw input for the pulse wave)

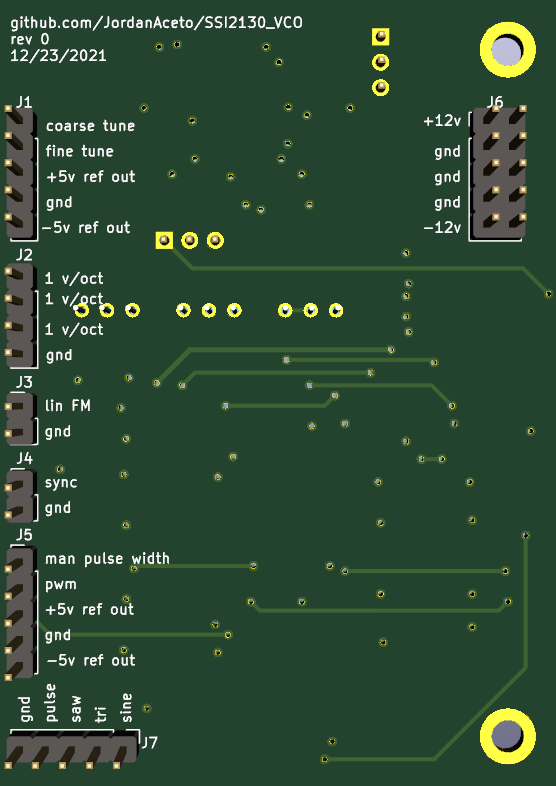

• Designed to plug into a separate carrier pcb which houses the pots and jacks.

SCHEMATIC

Power rail	Current consumption
+12v	30mA
-12v	30mA

Status of the project:

Task	Status
Schematic capture	☑
PCB layout	☑
Test build	☑
Safe to order boards	☑
