Description

44-key 16-column wireless split RGB keyboard in a 100x100 mm PCB

README

Jorian

44-key 16-column wireless split keyboard in a 100x100 mm PCB

Disclaimer

The keyboard layout is derived from Jian layout (just visually, there was no actual copying involved). There are multiple issues in my version. Please buy Jian from its author, /u/KgOfHedgehogs, he's running a high quality commercial batch.

Download

You can download Gerber files and schematic in the releases section.

Instructions

Please refer to the public Jorian wiki.

Pictures

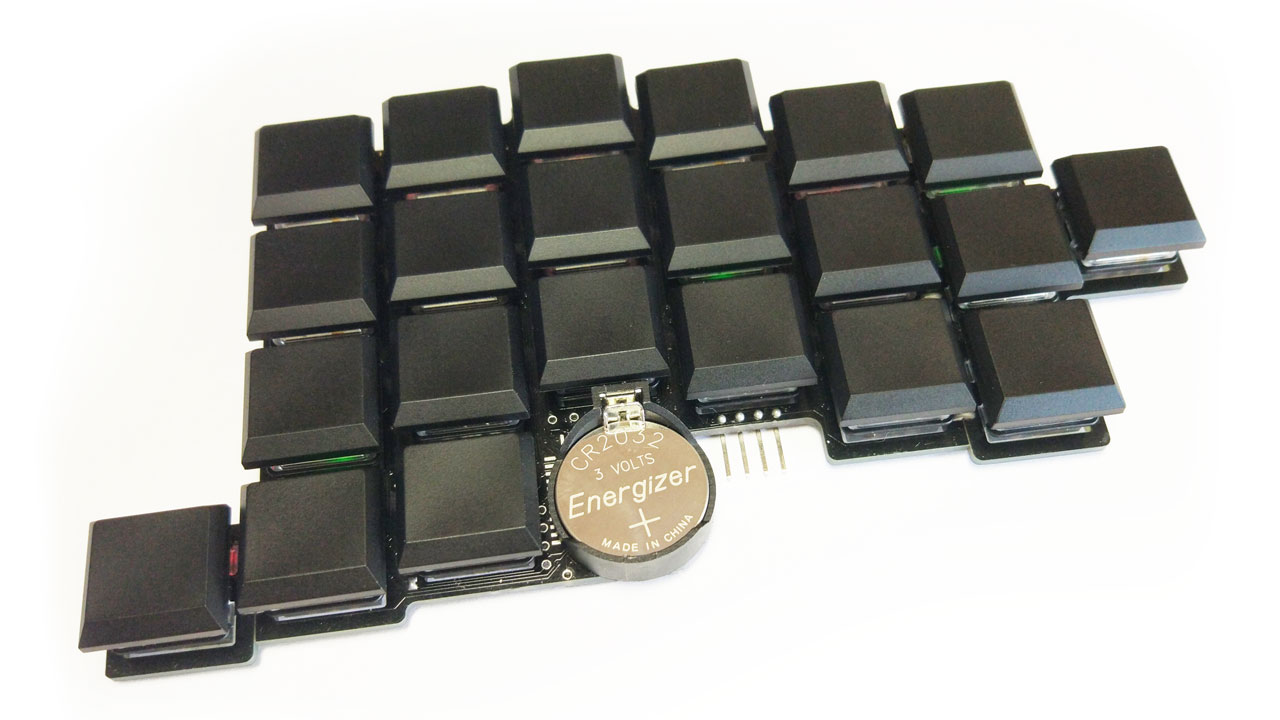

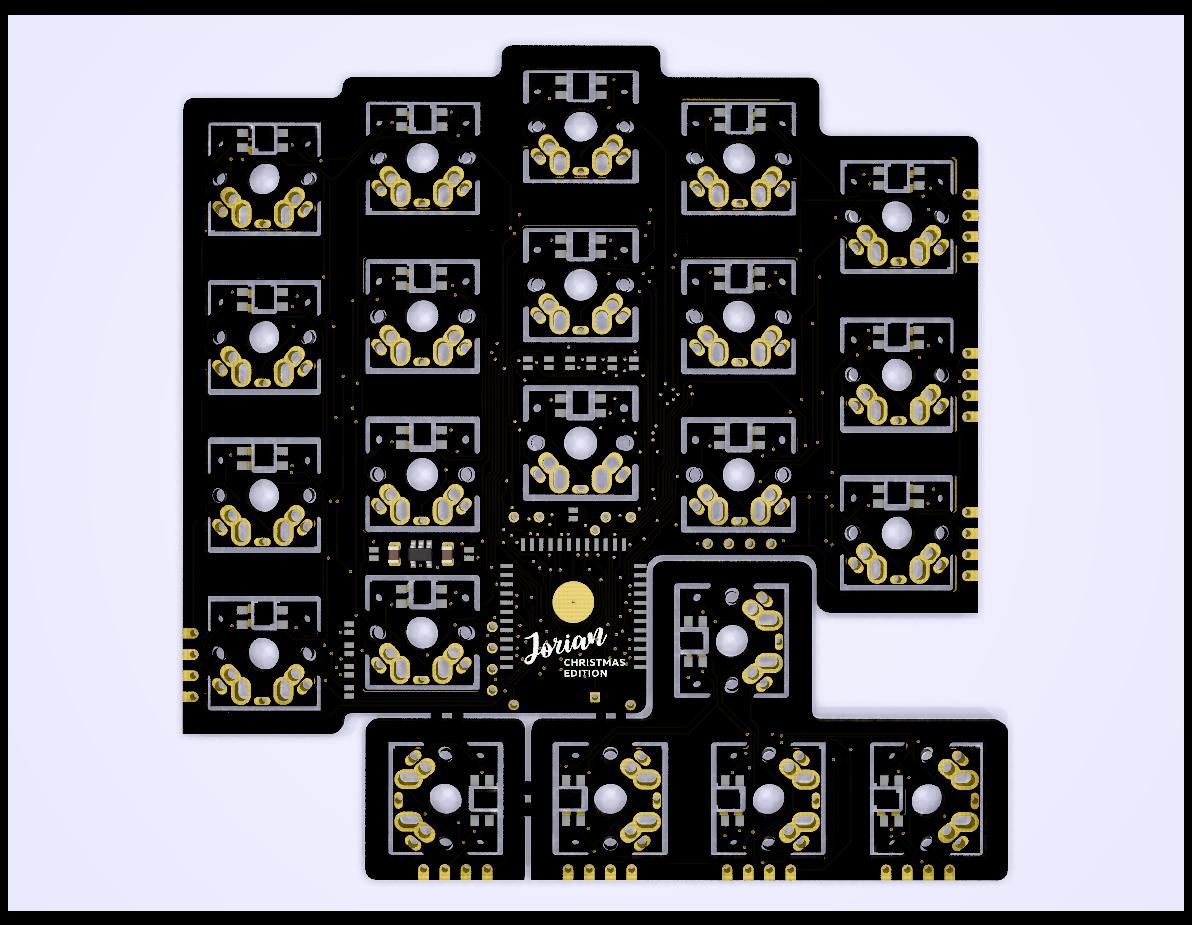

Version 1.0

References

• Reddit thread: https://www.reddit.com/r/MechanicalKeyboards/comments/aj0mos/jorian_christmas_edition
• My nRF5x QMK fork: https://github.com/joric/qmk_firmware/commits/nrf52
