Arduino Uno template project for KiCad EDA

README

Arduino Uno template project for KiCad EDA

This is a KiCad template to quickstart creating shields for Arduino Uno. The template is created according to the KiCad documentation on templates. There are probably better versions somewhere on the internets or even one build in however, I wanted to get some more KiCad experience, so here you go!

Installation

Download or clone this GitHub repository to your KiCad user templates directory

Usage

1. Open KiCad
2. Choose: "create a new project from template"
3. In the "Project Template Selector" choose "User Templates" tab
4. Browse to the directory where your user templates are
5. Select the template and go design!

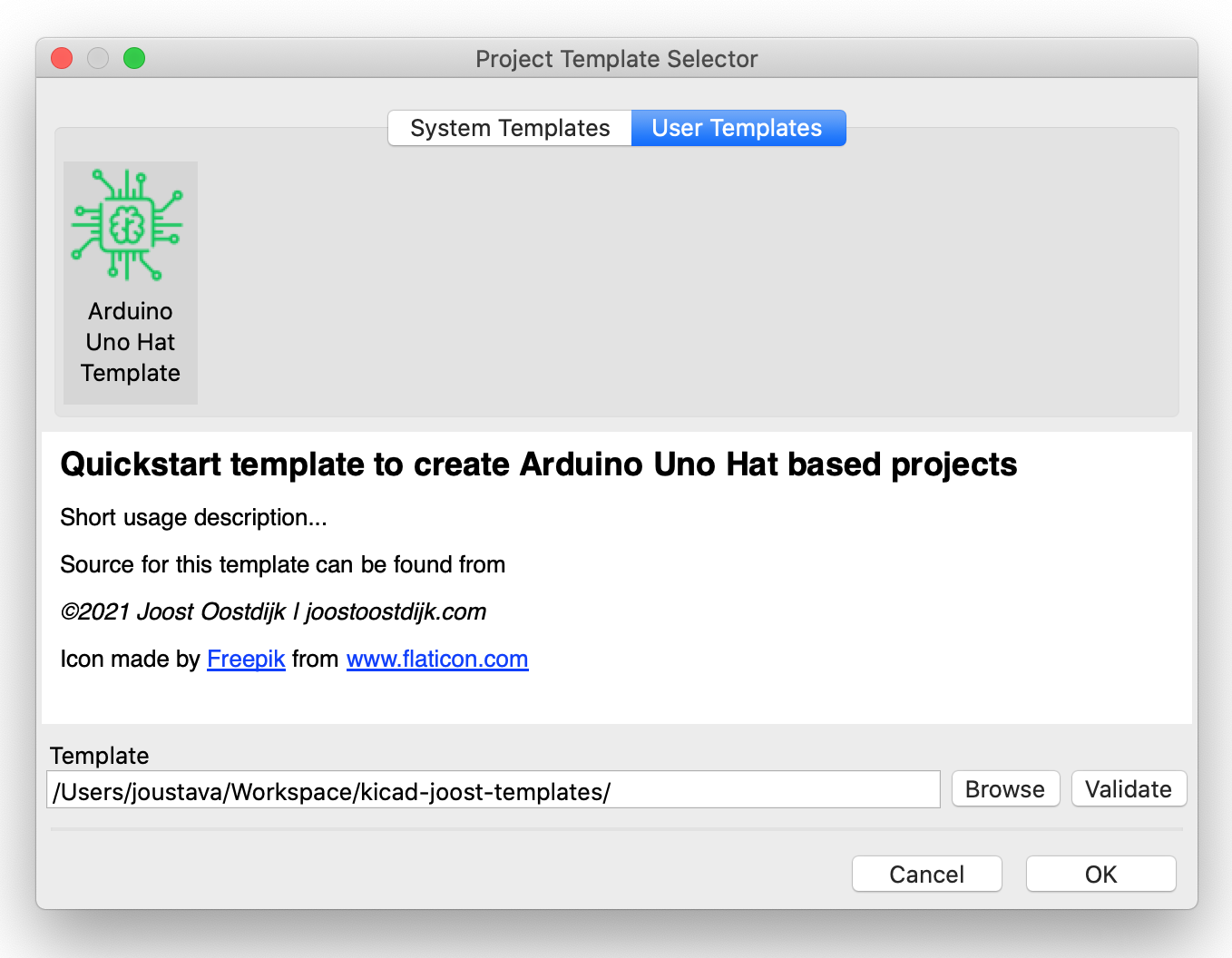

Project Template Selector

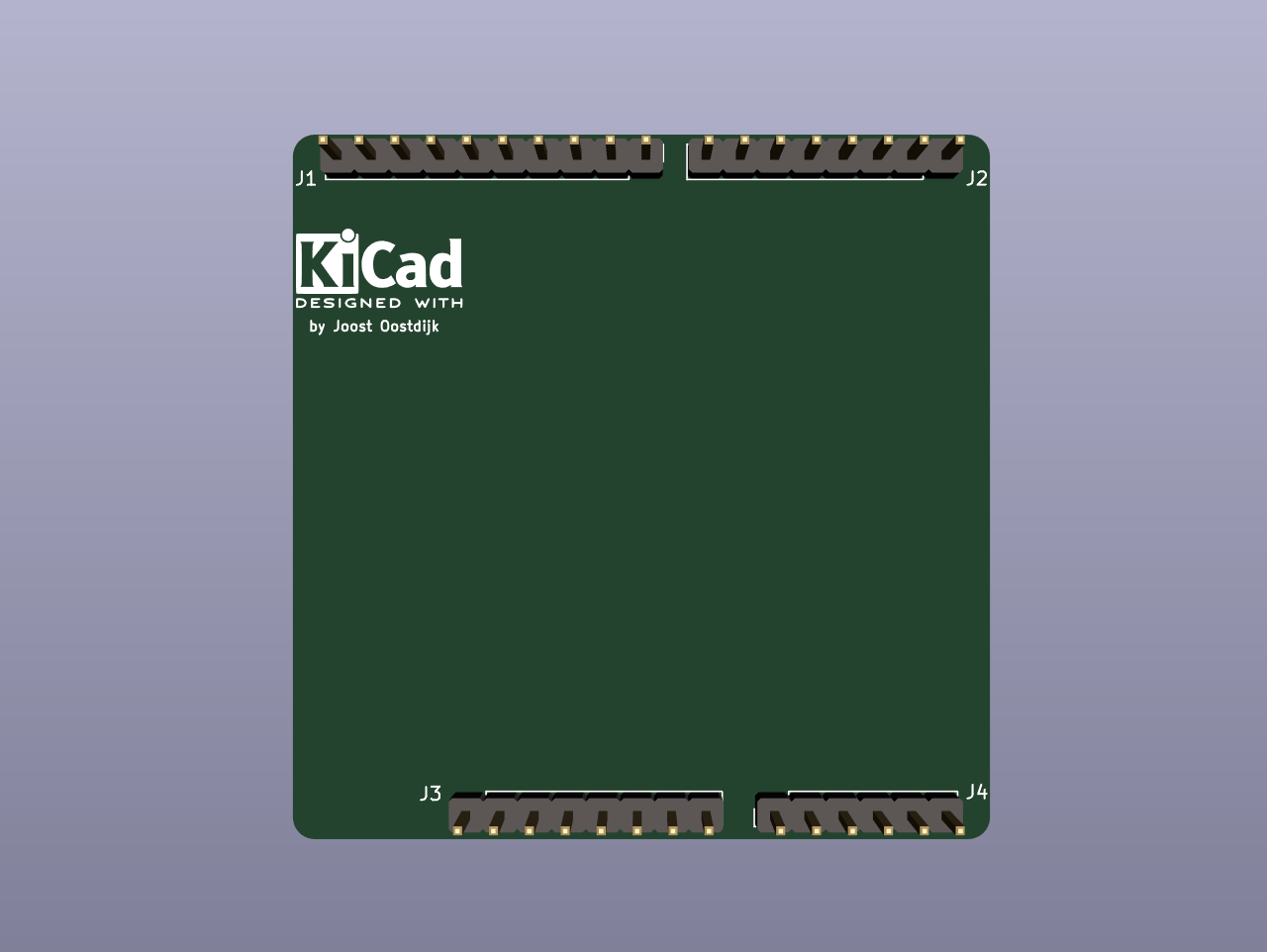

Template in 3D Viewer

Note This GitHub project itself can also be used as a template to create new GitHub repositories, see creating-a-repository-from-a-template for details.
