SX8634-Breakout

A breakout board for Semtech's SX8634 capacitive touch sensor.

Hackaday.io Page

Order from Tindie

Arduino driver

---

What is in this repository:

./doc: Location for documentation

./KiCAD: Hardware design files

./lib: Third-party libraries

./main: The optional provisioning program

./downloadDeps.sh A script to download dependencies

---

Building the provisioning program

The provisioning program is intended to be run on an ESP32 devkit-C or comparable. It can be built by doing...

./downloadDeps.sh
make

Then, flash it to the ESP32 board....

make flash monitor

---

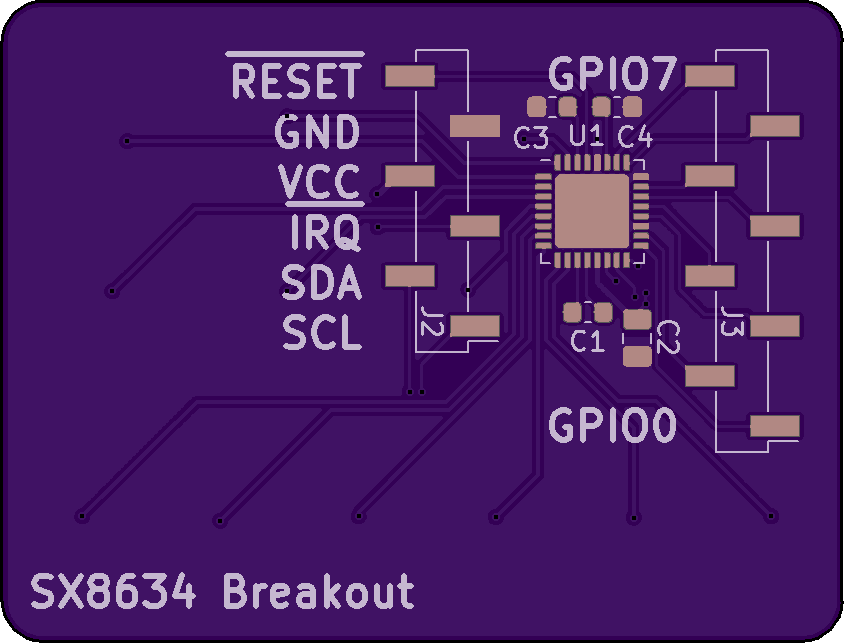

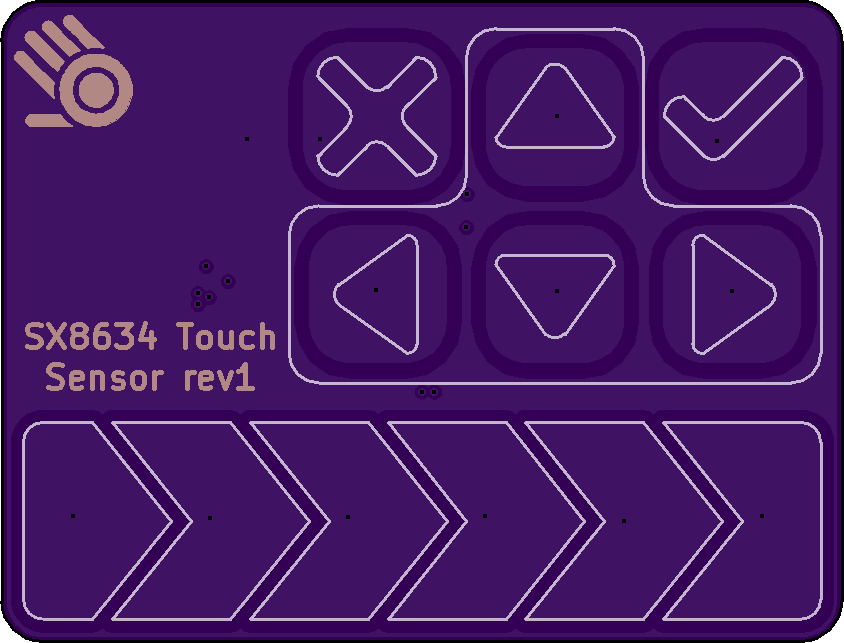

Front	Back
