README

Keyboards

This repository contains the code, cases and co. of the keyboards I have built.

All keyboards in chronological order:

NameImageDescription

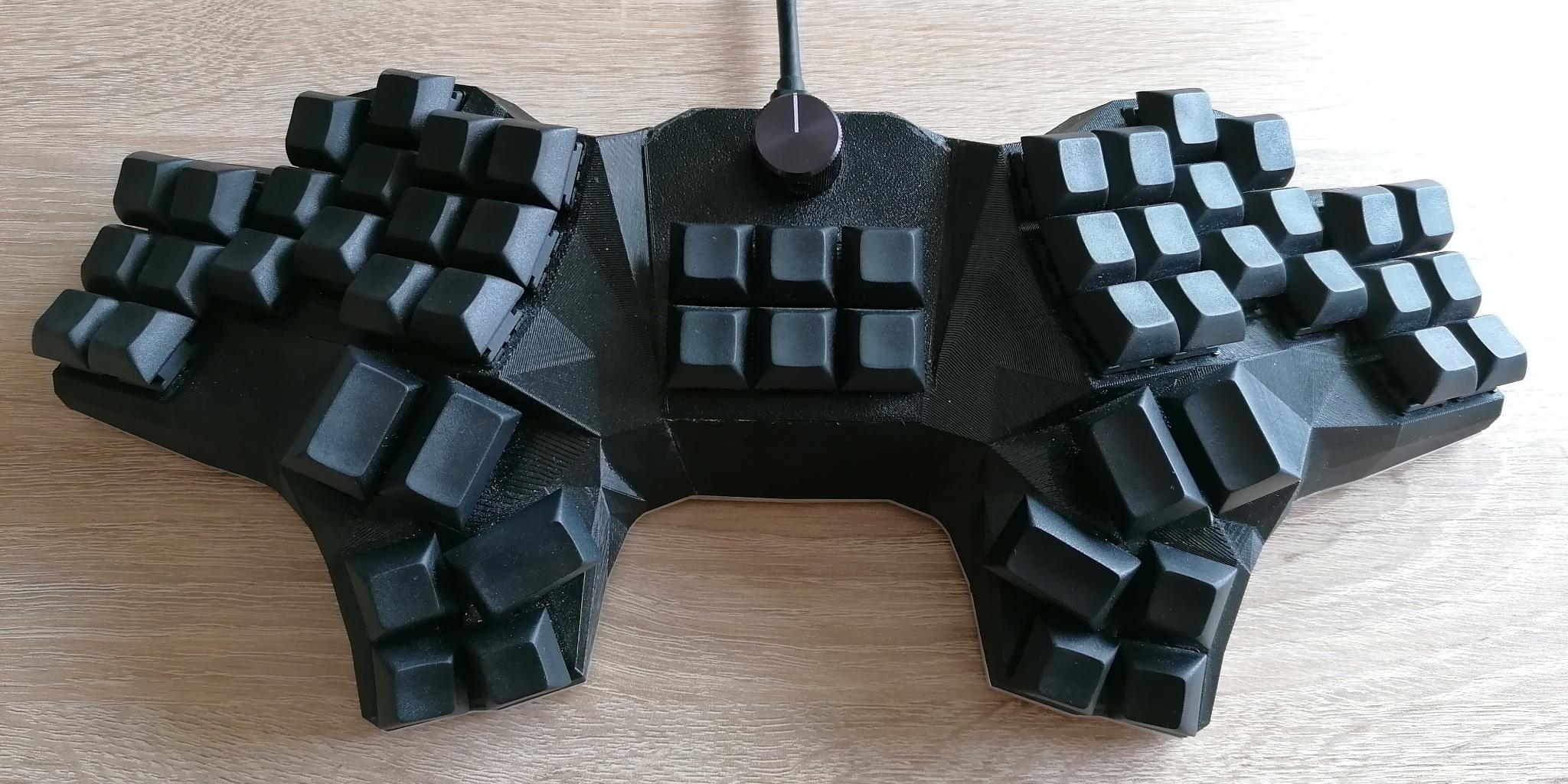

Manuform50% hand-wired keyboard focussed on ergonomic typing with ortholinear columns
Ergomin40% PCB based split keyboard focussed on ergonomic typing with ortholinear columns

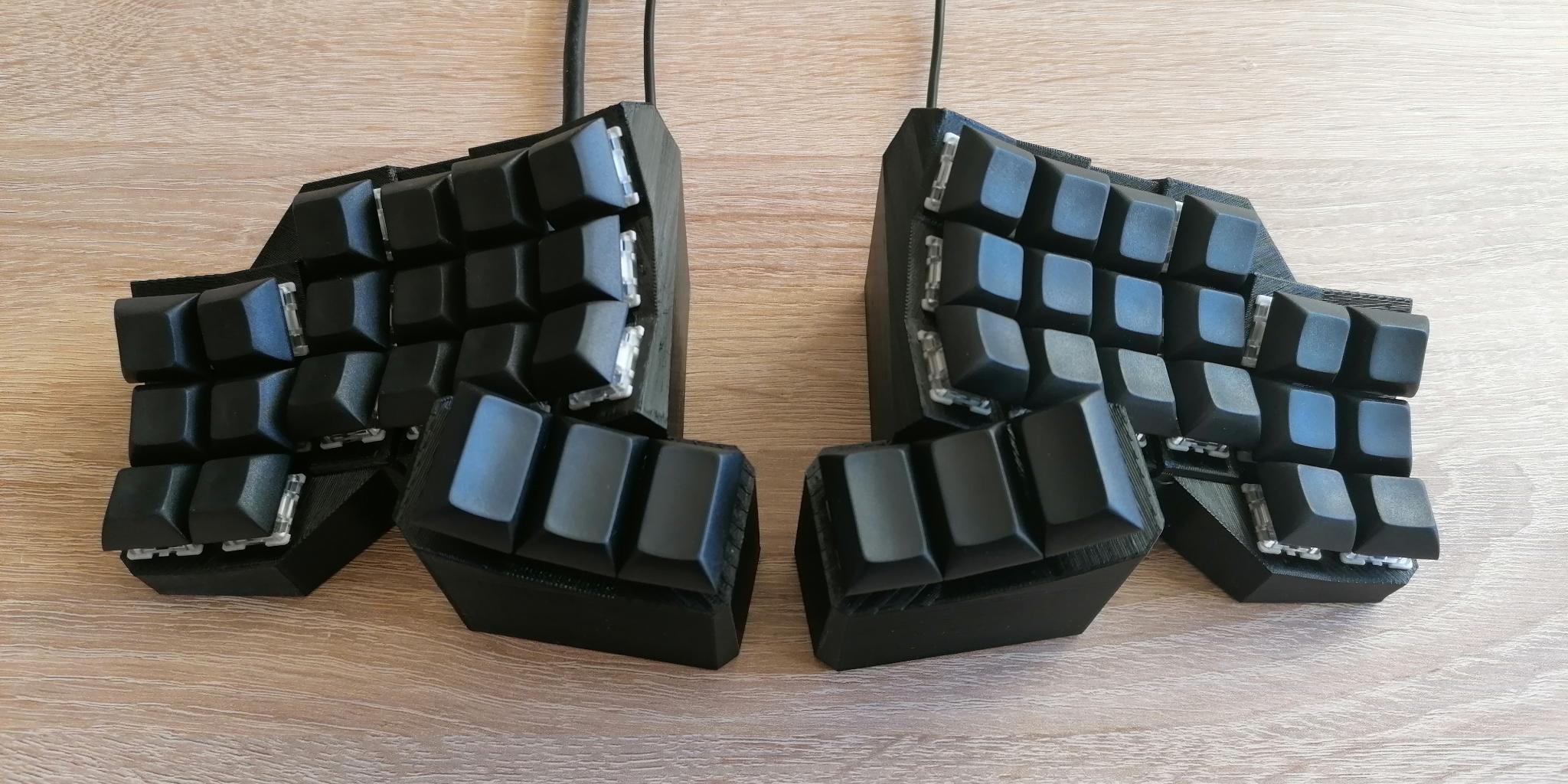

ConcavumFully parametric ergonomic split keyboard with automatically generated matrix PCB

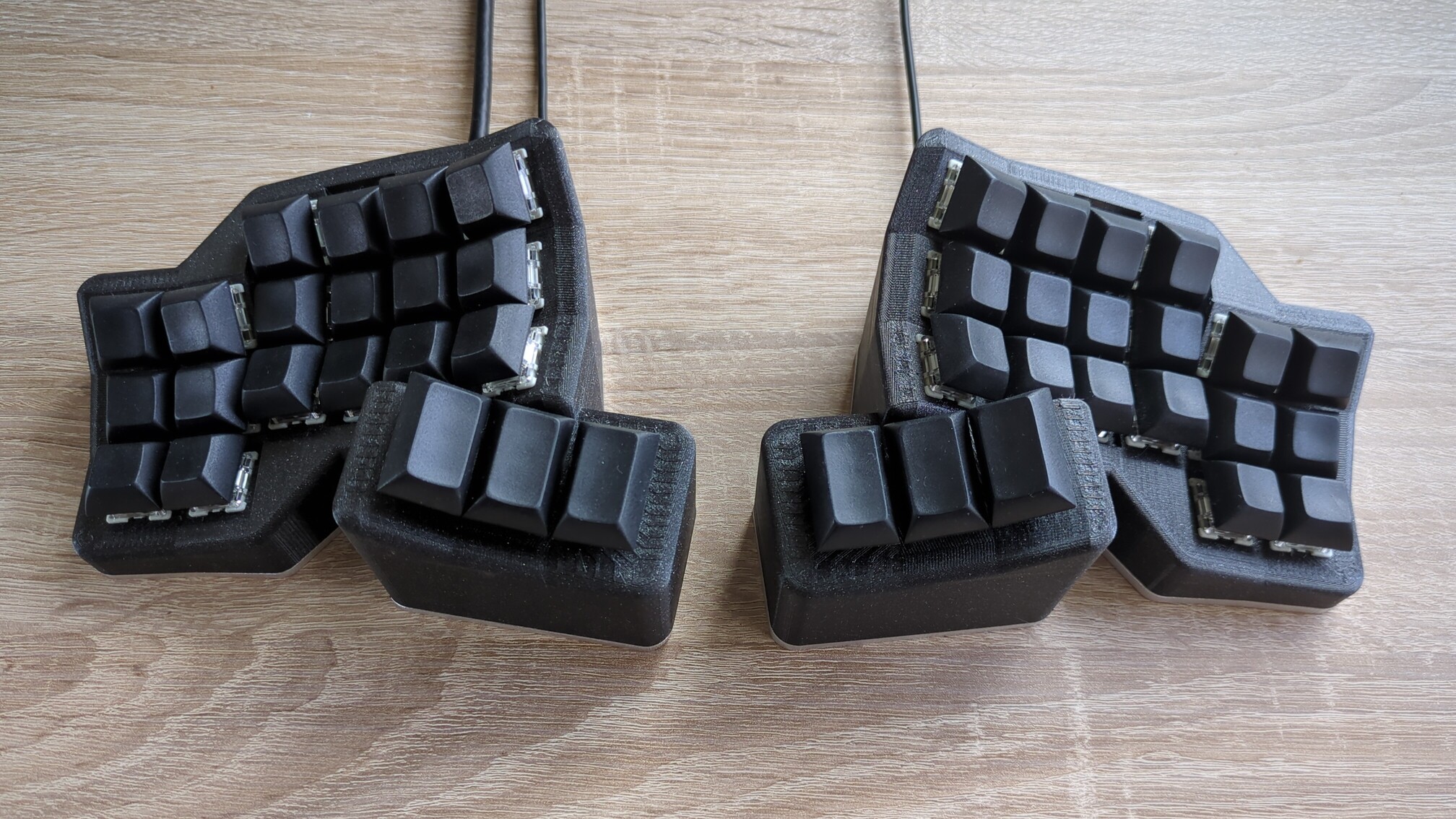

Concavum v2Second revision of the Concavum keyboard with an easy to use customizer

License

This project is licensed under the MIT license, see LICENSE.txt for further information.
