Three high-Q state variable filters with clipping. Used for filter pingning.

README

The Ping Ting

This repository contains the KiCad files and the design files for The Ping Ting.

The Ping Ting is a single PCB with three different high-Q state variable filters, which are intended to be used for "filter pinging". The board can be supplied from a typical 9V-12V DC center positive power supply.

Images

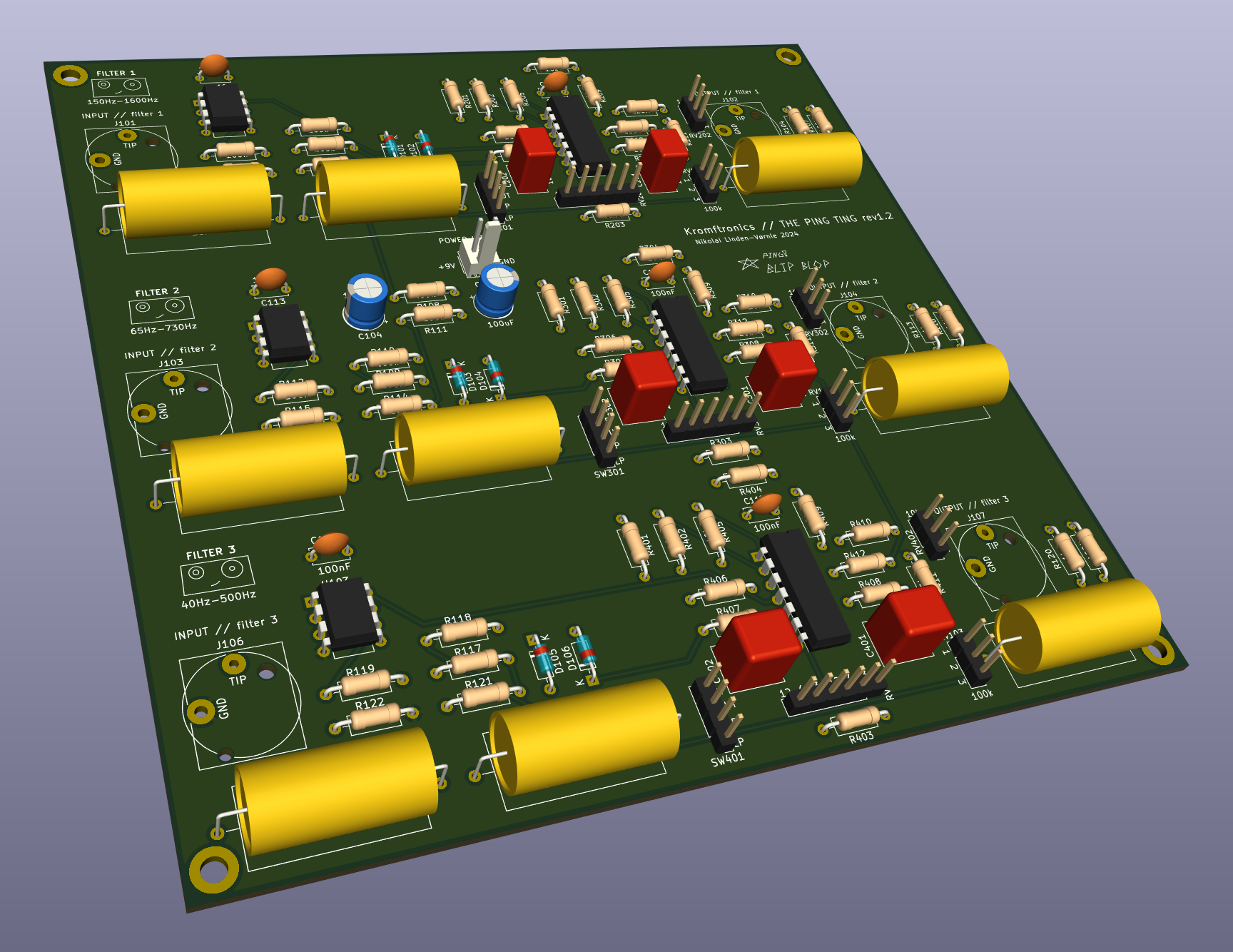

3D Model

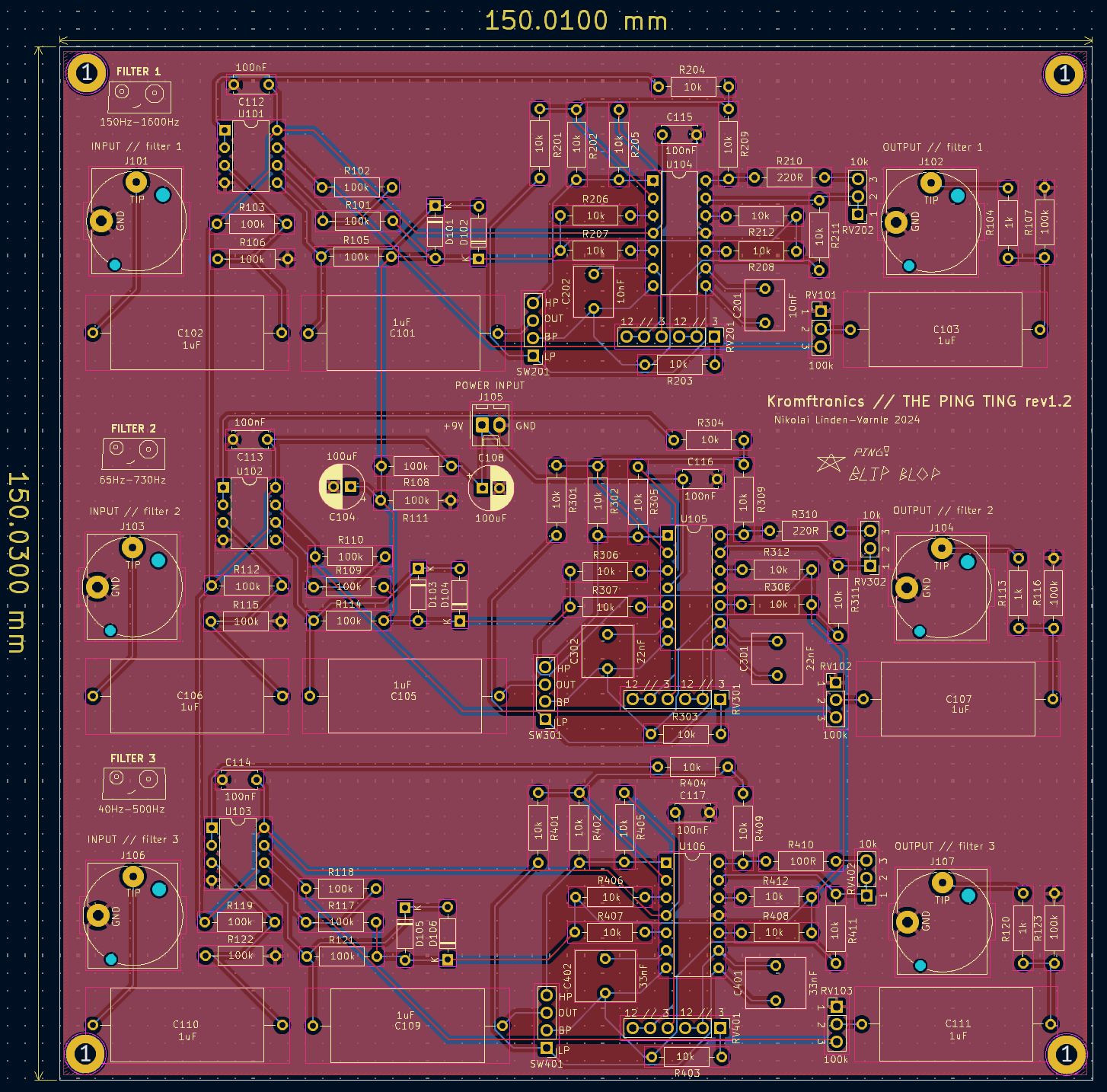

PCB

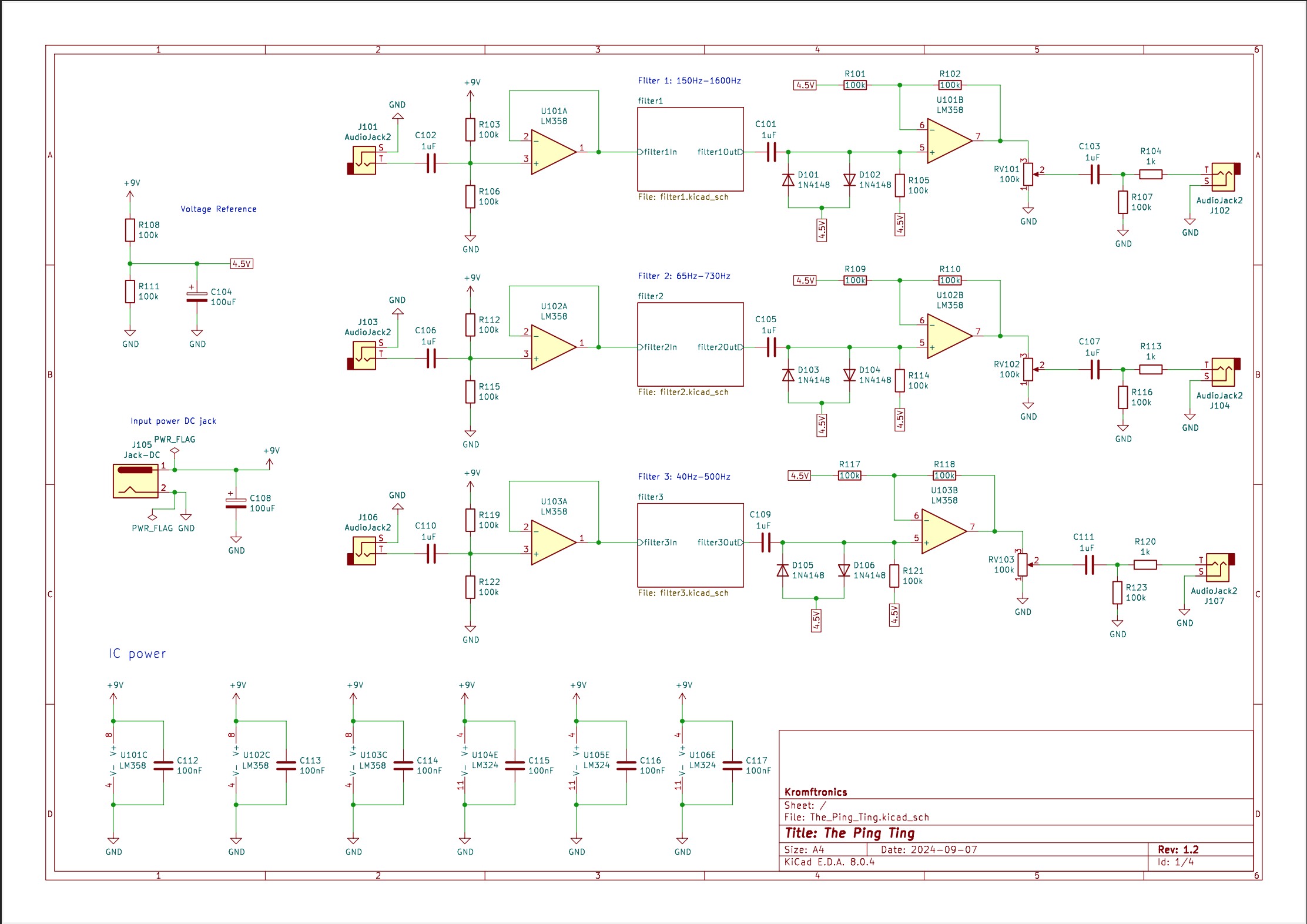

Schematic
