Pixy - Single board computer projects

What is this?

My owned single board computer projects.

Pixy-68000

Pixy-68000-1 project readme

Pixy-68000-0 project readme

  • Motorola MC68SEC000-20 (Static low-powered m68k arch.)
  • ATMEL AVR ATMega-328PB
    • Co-processor for 7segLEDs, LEDs, switches and serial interface.
  • LATTICE MachXO2 LCMXO2-640
    • Bus controller, captured all signals from the CPU.
  • SRAM 1MB (512kbit * 2)
  • Flash PROM 1MB (512kbit * 2, PLCC)

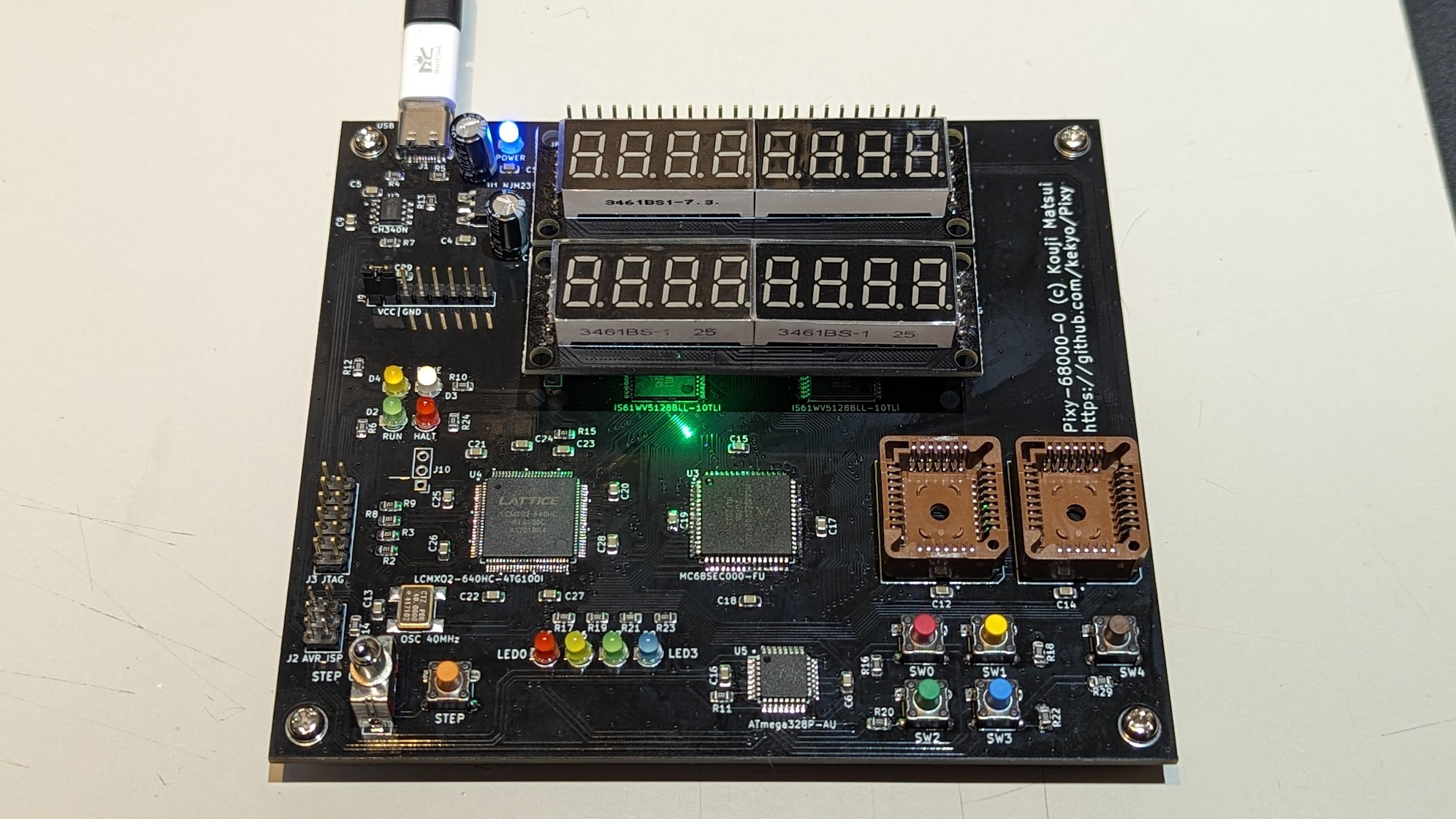

Assembled (Pixy-68000-0):

Pixy-mega128

Project readme

  • ATMEL ATMega128-16AU (Simplest 48+ GPIO)
  • Enabled Arduino IDE with MegaCore.

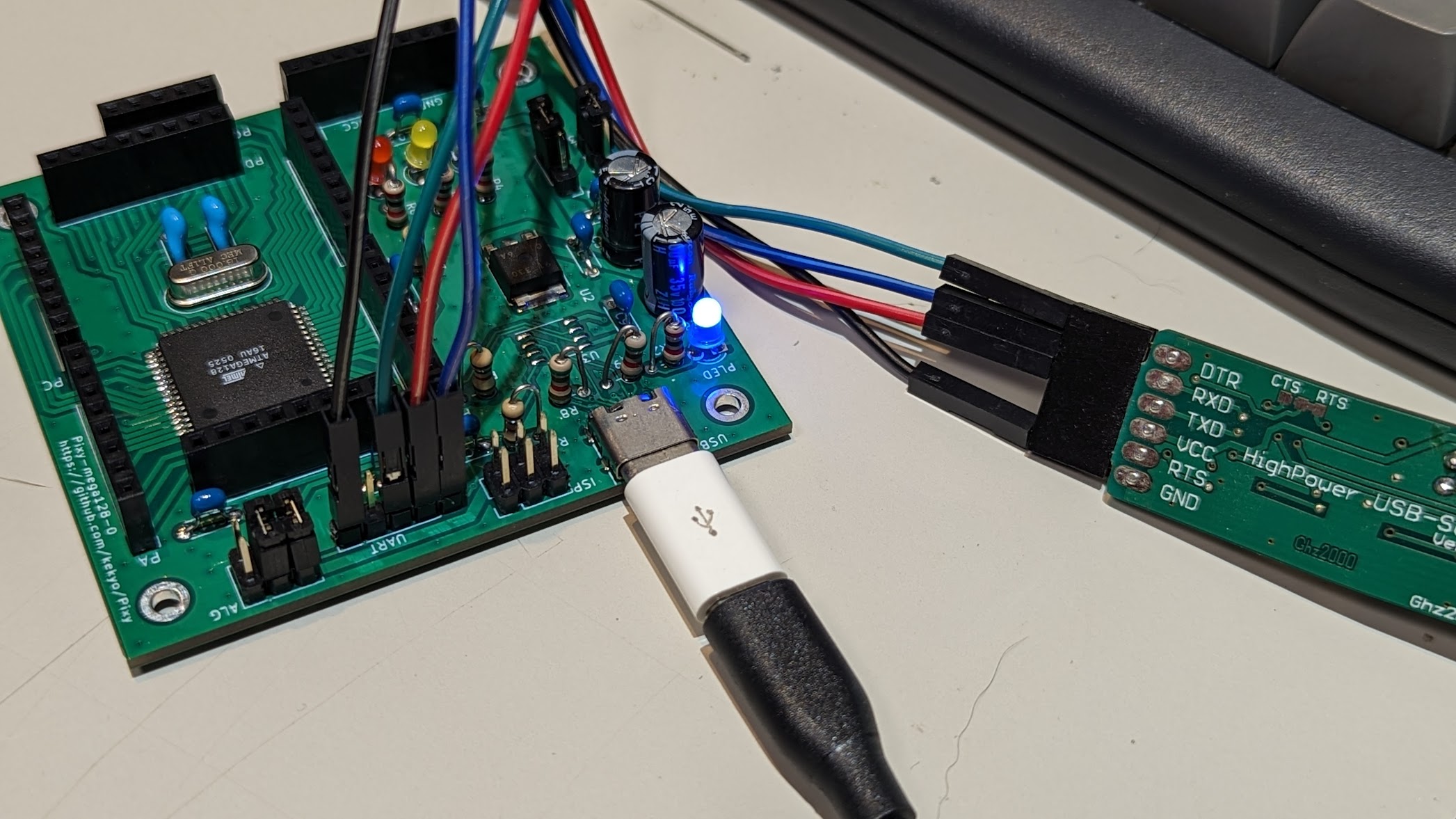

Assembled (Pixy-mega128-0):

Pixy-mega128-sdram-hat

Project readme

  • SDRAM: ELPIDA EDS1216AGTA (16MB: 8Mwords * 16bit)
  • EXPERIMENTAL circuit board for learning how to use SDRAM.

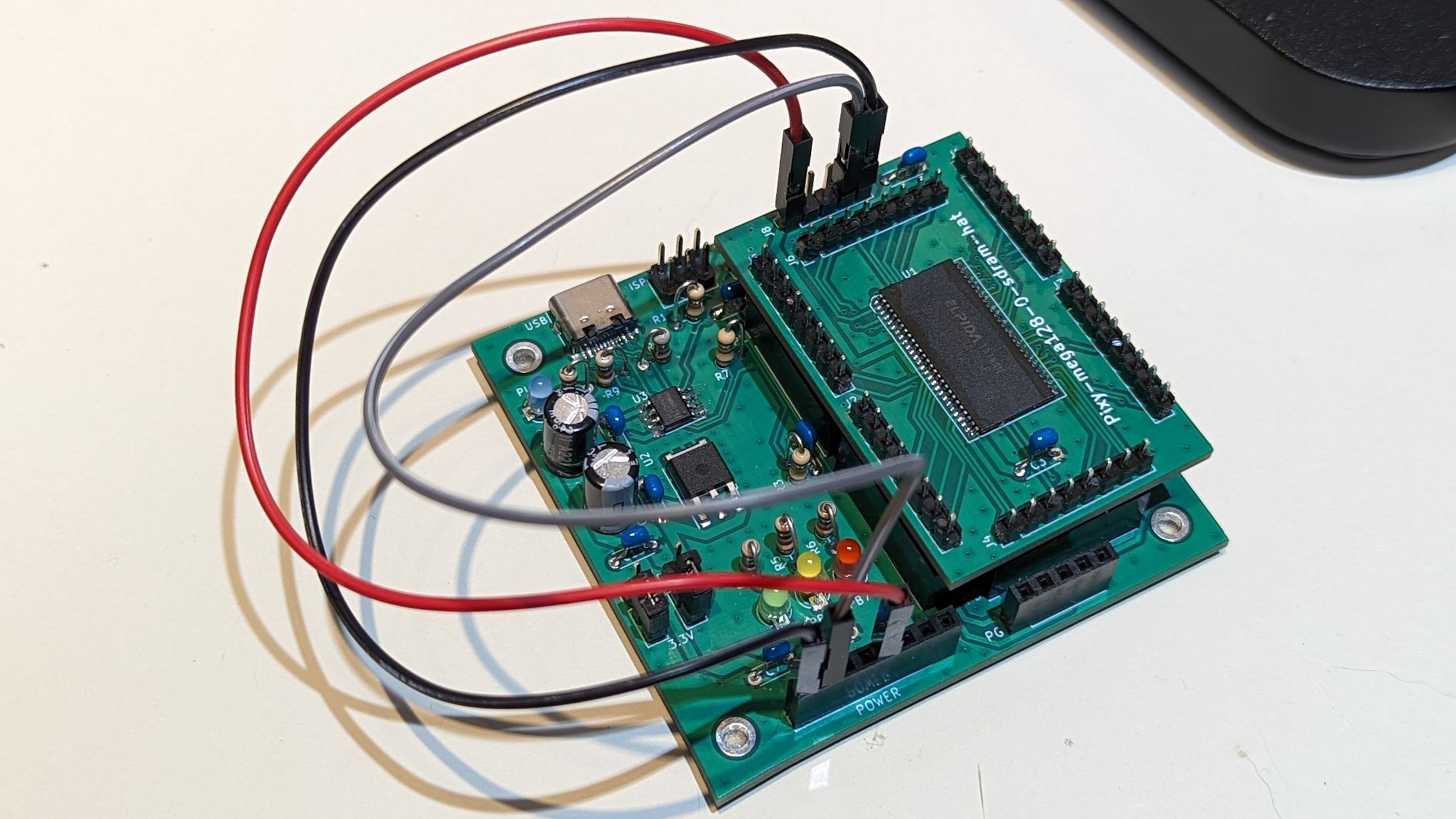

Assembled (Pixy-mega128-sdram-hat-0):

License

Apache-V2
