README

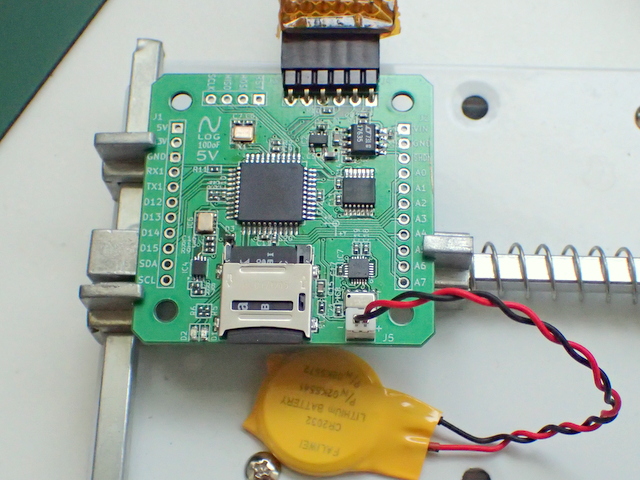

nlog_10DOF-2018-

arduino compatible embedded microSD data logger (2018)

Features

  • minor update of nLog_9DoF (added Air Pressure sensor)
  • 5V and 3.3V Regurator
  • ATmega644P (4kB RAM 64kB ROM) 5V 16MHz
  • Size and pin pitch compatible with UP-204GSR Universal PCB
  • microSD hinge socket
  • MPU-9250
  • MS5611 Baromater
  • RX8900 RealTime Clock (TCXO) (Backup Battery Option)
  • 3.3V I2C bus, 5V UART,SPI, ADC/GPIO

PIN Map

  • VIN has Reverse current protection

Applications

  • analog & Motion Datalogger

Project Environment

  • KiCad (4.0.1)
  • Arduino 1.0.6
  • Sanguino bootloader
  • SDfatlib

Project Status

  • end of life (EOL)
