Description

Portal Split Keyboard with trackpoint and rotary encoder support

README

Portable Split Keyboard

Features

• Tenting design - good for RSI symptoms
• Stackable - portable
• 36 keys columnar layout - less movement when typing
• Trackpoint support

Designs

• pskeeb1 gateron ks27: Mainly designed for Gateron KS27 low profile switches, Blackpill controller, Diodeless
• pskeeb2 express: All Kinds of switches, Blackpill controller, Diodeless, 9.2x9.2cm PCB
• pskeeb3 cherry hotswap: Cherry MX Switch, Raspberry Pi Pico, Diodeless
• pskeeb4 gateron low profile ks27 hotswap: Gateron Low Profile Switch, RP2040-Zero
• pskeeb5 bluetooth kaihl choc v1/v2 hotswap: Kaihl Choc v1/v2 Low Profile Switch, nice!nano v2

Assembly

Trackpoint

1. Follow this great guide and this topic to identify the trackpoint pinout
2. Solder GH cable to the trackpoint by refering to the socket wiring sequence: RST/DAT/CLK/GND/VCC (top to bottom)

Developement

git clone https://github.com/klesh/pskeeb.git
git submodule update --init --recursive

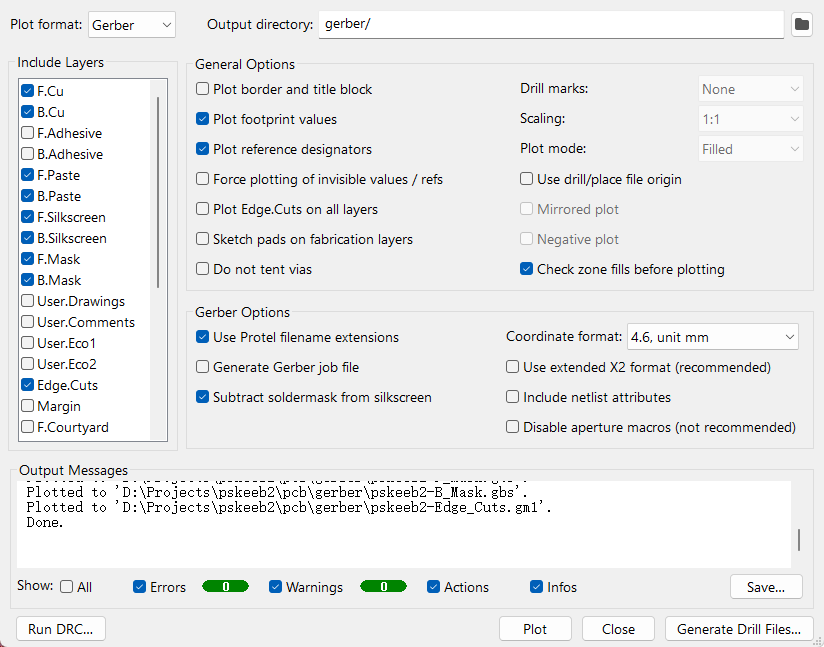

Use the following options when exporting gerber for JLCPCB manufactoring.

License

This work is licensed under a Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International License.
