Description

RP2040 board with USB-C, 8MB flash and 22 GPIOs

README

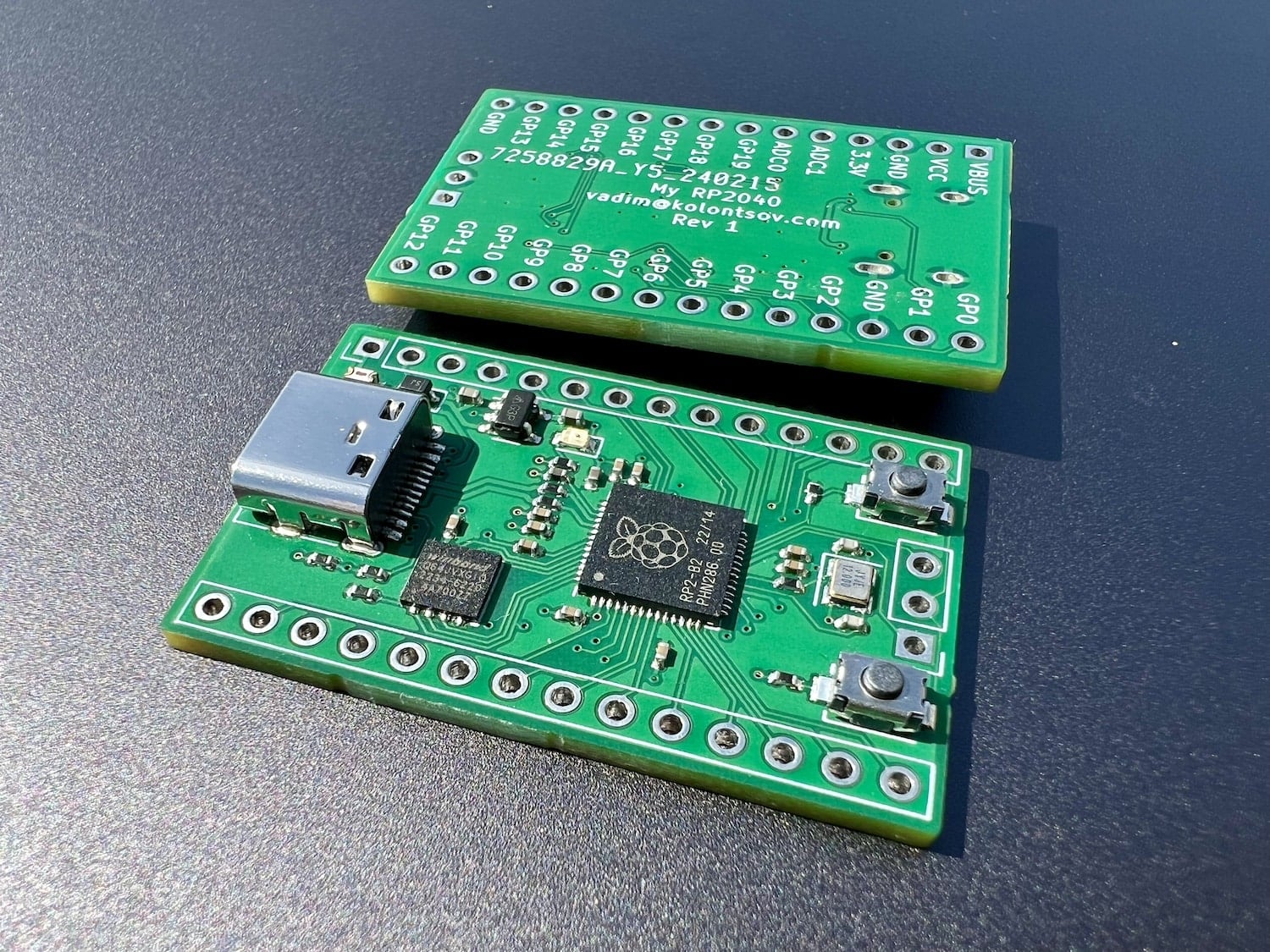

My-RP2040

A small RP2040 board, with USB-C, 8MB of flash, SWD interface, 22 GPIO, and a LED. Size: 24x37mm.

This board serves no special purpose other than being an exercise in designing an RP2040 board.

• Designed in KiCad 8, manufactured and assembled at JLCPCB, confirmed to work.
• Follows recommendation from the Hardware design with RP2040.
• Some footprints and 3D models are from my personal library.
• Uses design rules to match JLCPCB capabilities.
• Production files (Gerbers, BOM, and CPL) are generated with the help of the KiCad JLCPCB plugin.

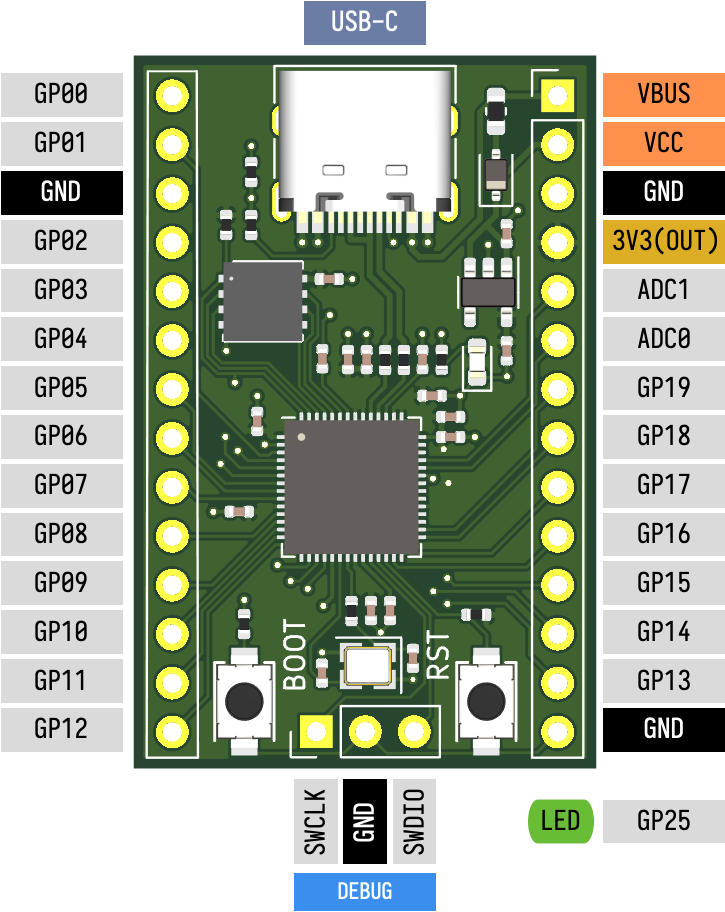

Pinout

License

Creative Commons (CC0-1.0). For the license text, see LICENSE.
