Open Source Alice Keyboard

README

OpenErgo

Open Source Alice Keyboard

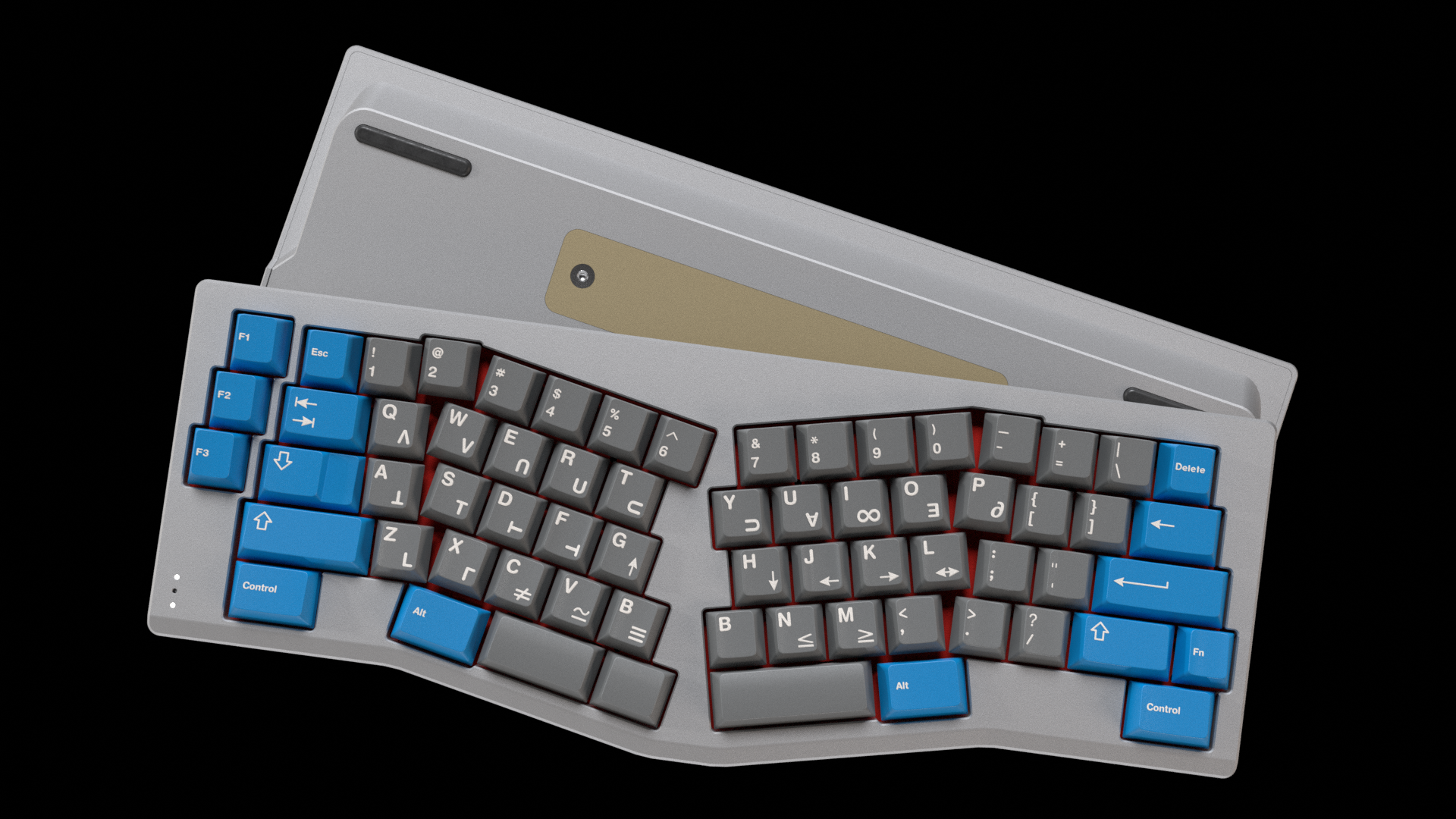

Alt text

Use as a base for your own designs, renders or order as is (read important info at the bottom).

Details:

  • Alice layout
  • Supports OG Alice plate
  • Chonky external weight
  • 7.5 degree typing angle.
  • Flush USB-C connector built into the PCB
  • Skuf feet.
  • 3 Piece construction for no external screws (aside from weight)

Important Info (READ BEFORE ORDERING):

  • I do not offer any sort of warranty for this, nor can I be held liable if something goes wrong.
  • Renders are not fully representative of the final product
  • Please, PLEASE look over the design before you do anything with it, it's possible and very likely that there are some errors, I'm just a human.
  • Theoretically universal Alice pcb support (bottom side USB), though the connector is possibly slightly misaligned, still untested
