Tang Nano 9K TMS 9118A VDP

README

TMS9918A compatible VDP based on Tang Nano 9k - Compact (SMD) version

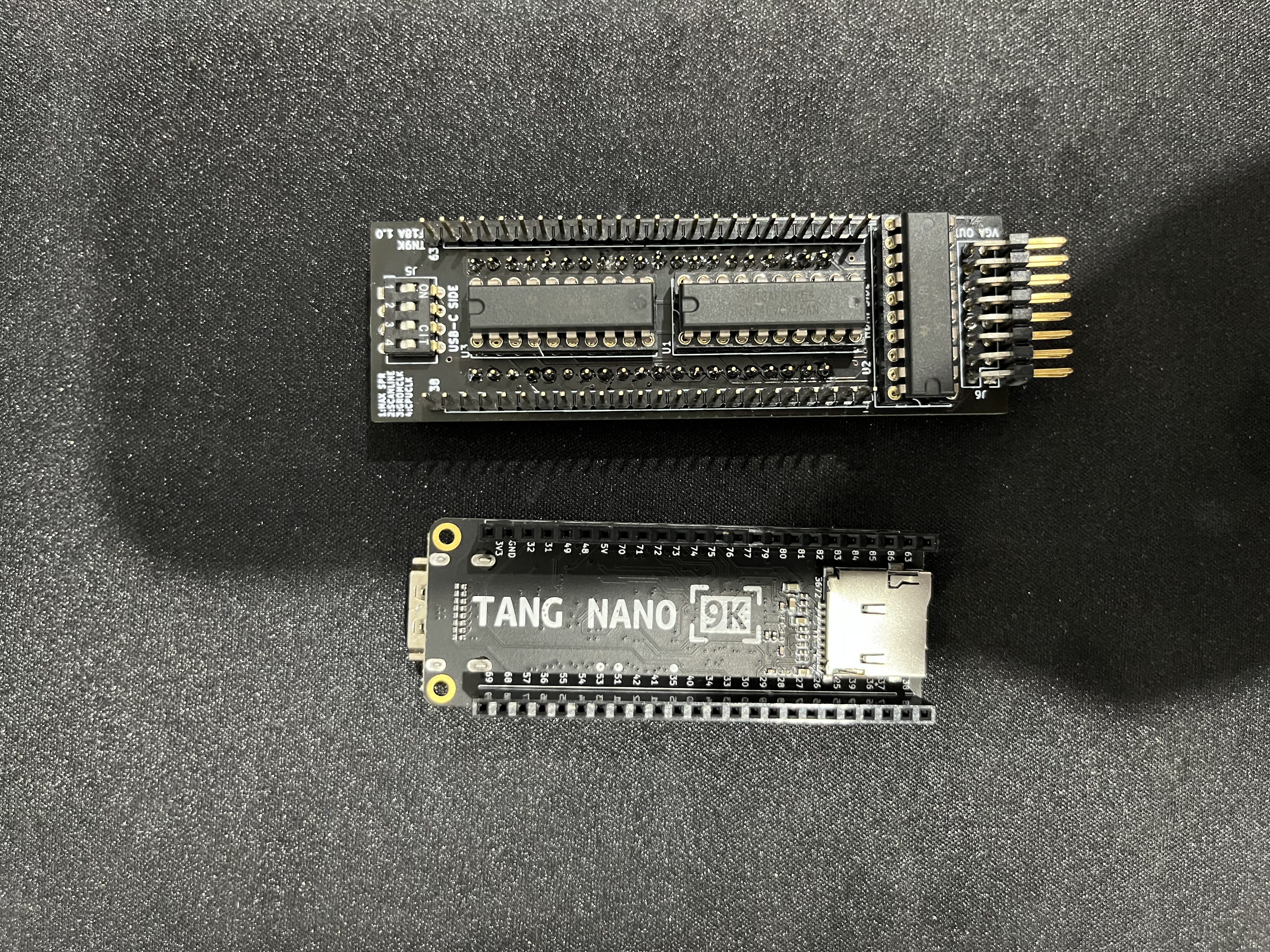

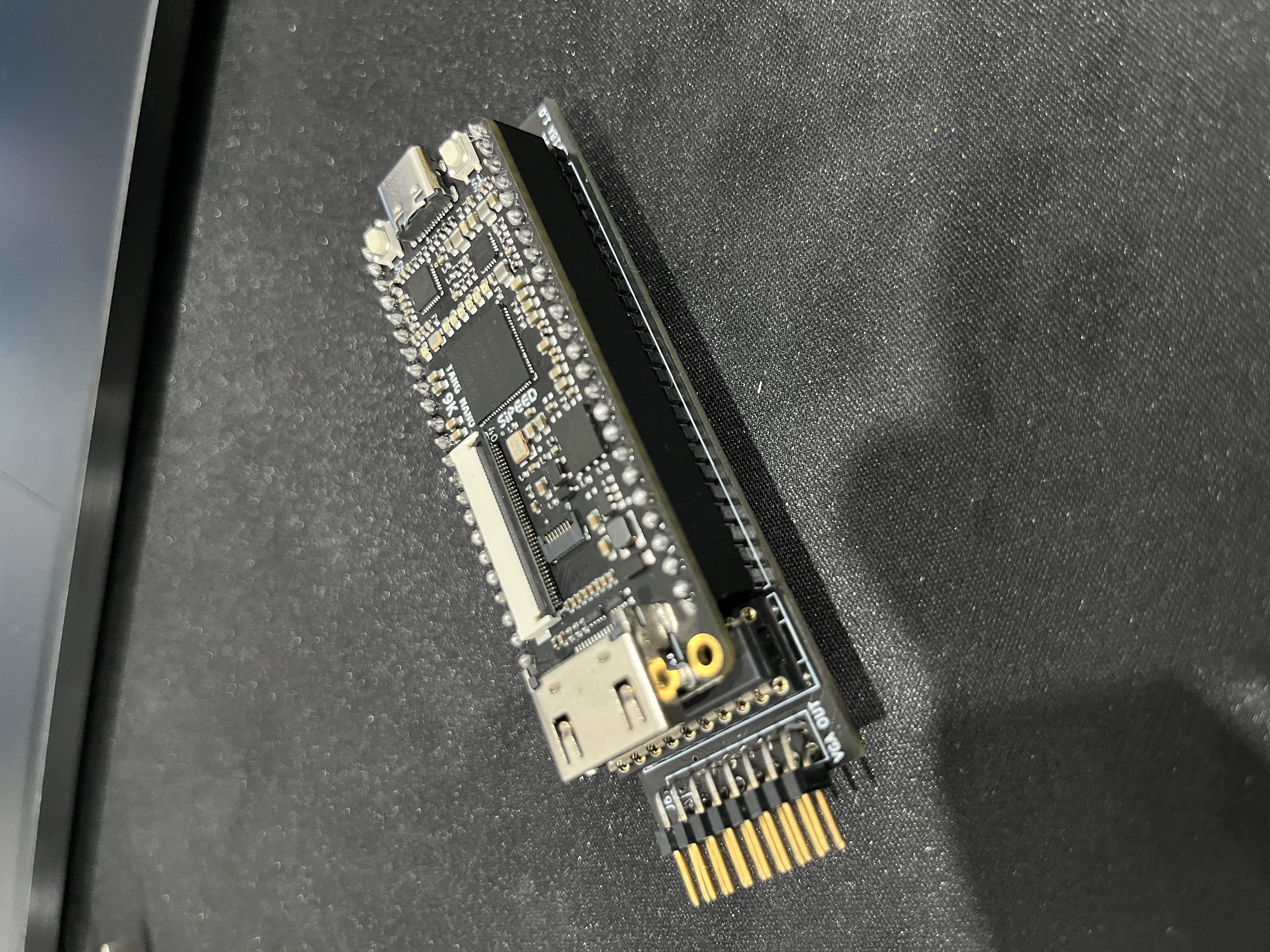

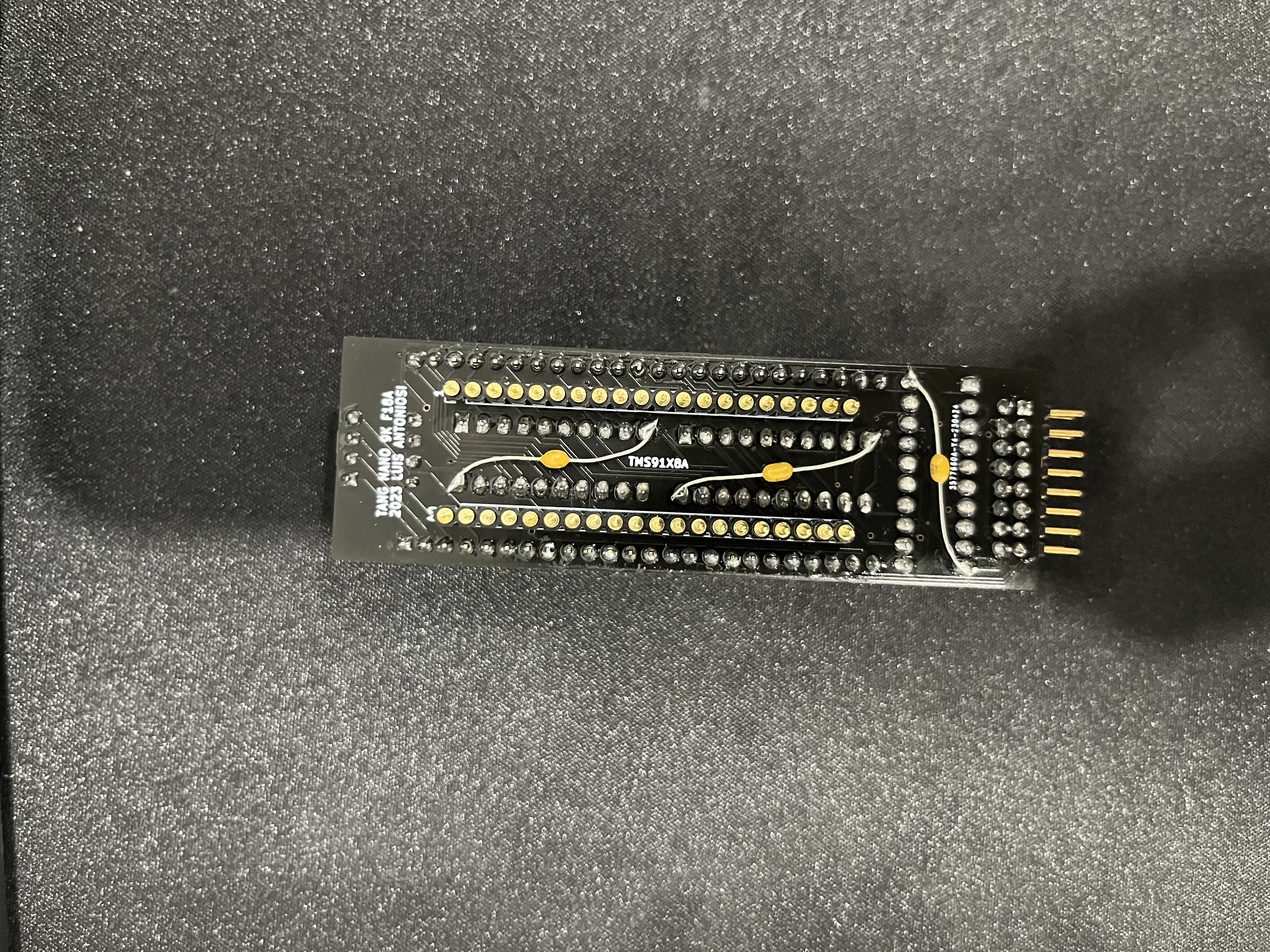

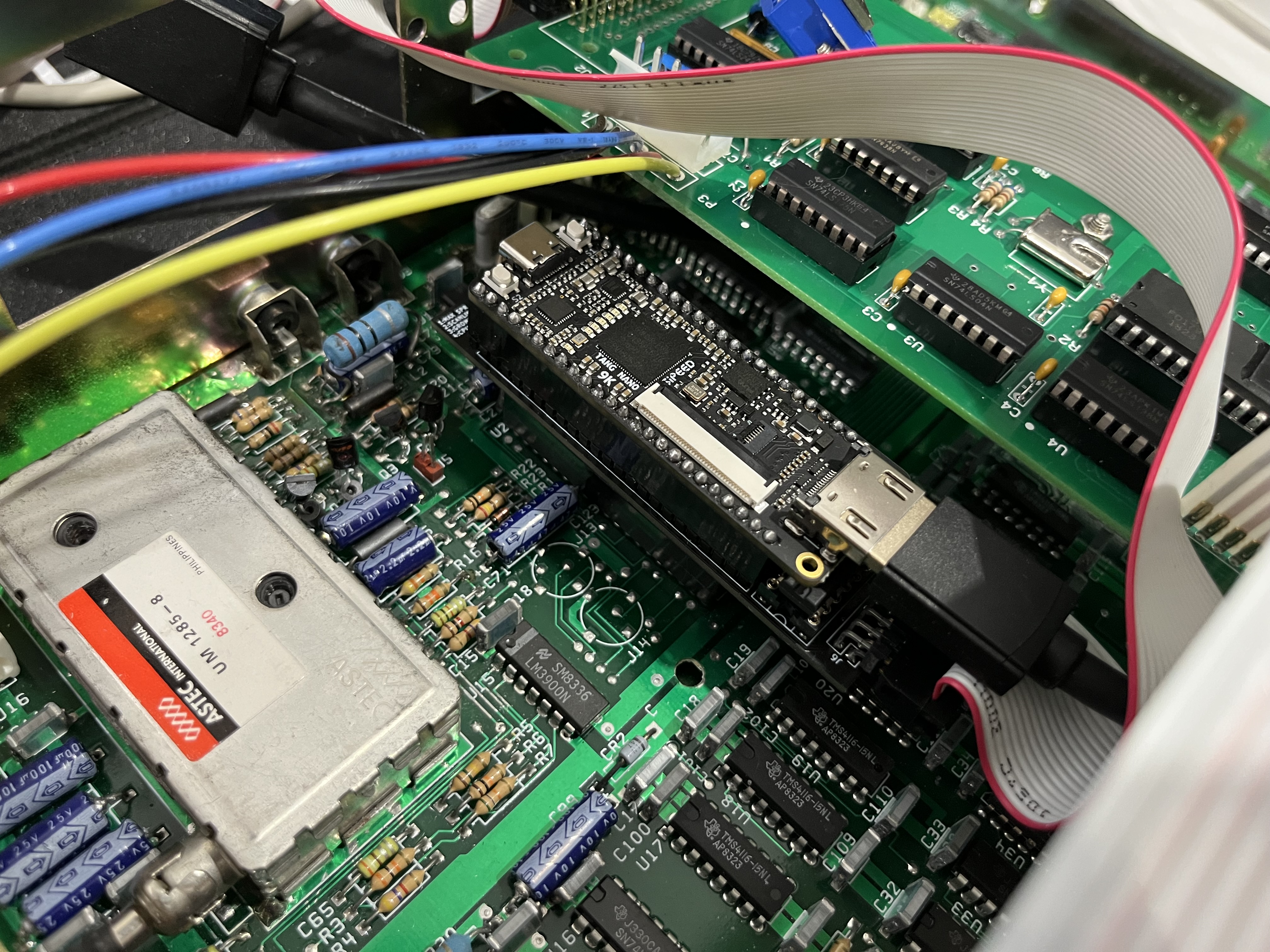

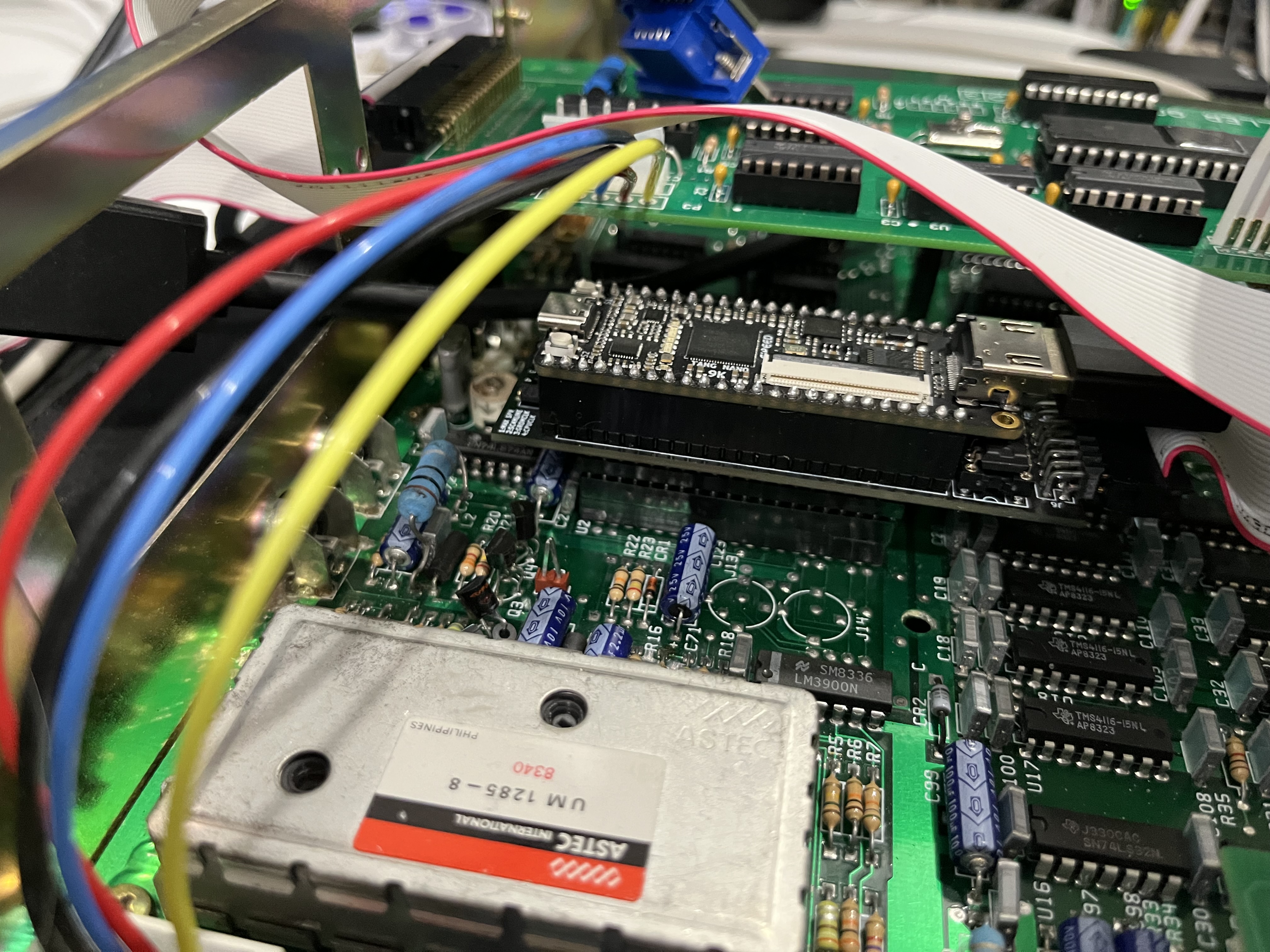

This version is a compact variant of the tn_vdp_v1 board that directly fits into the VDP socket of the TI-99/4A. It uses SMD components and has the same size as the Tang Nano 9k board. It comes with a VGA breakout connector that can be directly used if the space in the host machine allows it, or be snapped off, mounted on a breakout panel on the back of the host machine and be connected with a ribbon cable.

BOM

Item	Qty	Reference(s)	Value	Description	Part Number	Footprint	URL
1	1		Tang Nano 9k	FPGA development board			https://wiki.sipeed.com/hardware/en/tang/Tang-Nano-9K/Nano-9K.html
2	1	U1	1G08	Single AND gate	SN74LVC1G08	SOT-23-5	http://www.ti.com/lit/sg/scyt129e/scyt129e.pdf
3	1	U4	74LCX16245	16 bit buffer	74LCX16245MTD	TSSOP-48	https://www.onsemi.com/pdf/datasheet/mc74lcx16245-d.pdf
4	1	D1	D_Schottky	Schottky diode	MBR0530	SOD-123
5	3	R1, R5, R9	4.7K	Resistor SMD 0603		0603
6	3	R2, R6, R10	2.2K	Resistor SMD 0603		0603
7	3	R3, R7, R11	1K	Resistor SMD 0603		0603
8	3	R4, R8, R12	470	Resistor SMD 0603		0603
9	2	R13, R14	47	Resistor SMD 0603		0603
10	1	C1	100nF	Capacitor SMD 0603		0603
11	21	J1		PCB pin Mill-Max	3157-0-00-15-00-00-03-0
12	1	J6	VGA	Pin Header 2.54mm Horizontal 16pos	68021-116HLF
13	1	J2	VGA	Ribbon cable 16 pin 2x8 solder to 2x8 IDC			https://de.aliexpress.com/item/1005004165880347.html
14	1	J5	VGA	DB15HD connector, female
