Fully integrated 12V-24V BMS using ISL94202

README

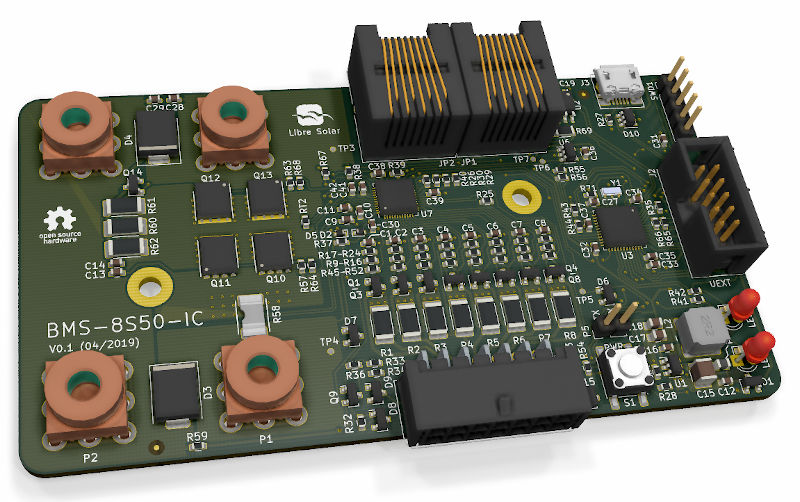

BMS 8S50 IC

First boards tested, some issues might still be open.

Schematic: PDF file

Bill of Materials: CSV file or interactive HTML BOM

Firmware repository: LibreSolar/bms-firmware

Features:

• 3 to 8 Li-ion cells (e.g. LiFePO4)
• Integrated high-side MOSFET switch and current sensor
• Balancing current approx. 150 mA
• STM32L452 ARM Cortex-M4 microcontroller
• Built-in CAN communication interface and UEXT extension connector

Firmware

The firmware is developed in a separate repository LibreSolar/bms-firmware.

Housing

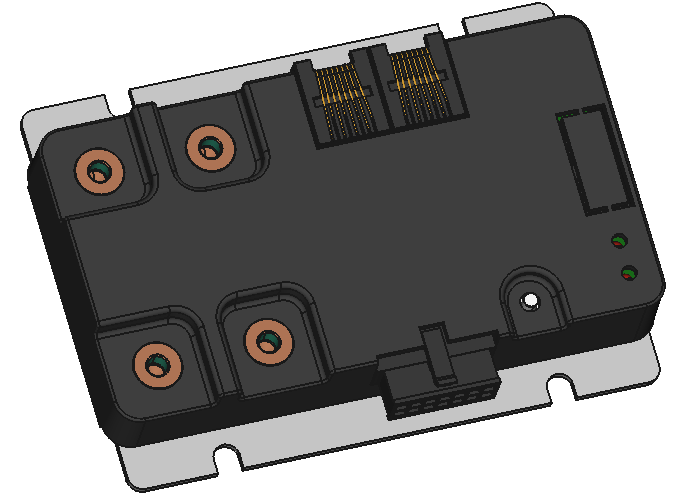

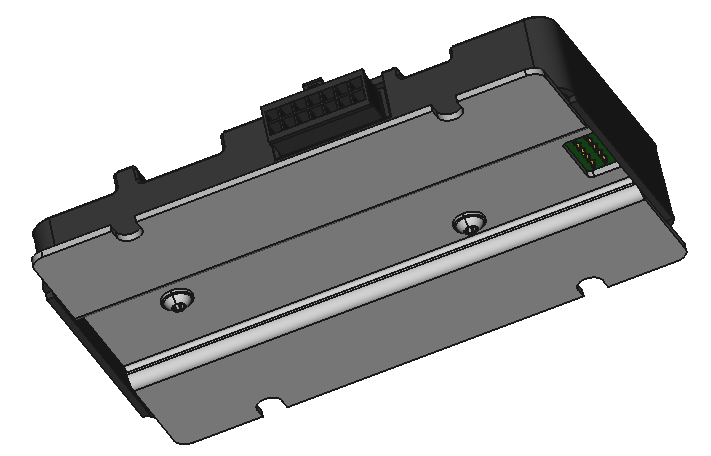

The PCB is designed such that a heat sink can be easily attached at the bottom. The following images show a draft idea for the housing. The files of the heat sink and the cover can be found in the housing folder as native FreeCAD files.

Important Notice

The PCBs have not been tested regarding EMC and other regulations. If you reproduce the boards, you use them at your own risk and responsibility.
