kg-display-adapter Schematic SVG view

Imported from GitHub: little-tesla/KG-Display-Adapter · commit 5f3eeff · license CERN-OHL-P-2.0

Description

KiCAD display replacement adapter PCB for Keisoku Giken electronic loads

README

KG Display Adapter

A KiCAD-designed replacement adapter PCB for Keisoku Giken electronic loads (tested with ELS-304, likely compatible with similar models).

Overview

This adapter allows the use of a modern 3.3V display module as a replacement for the original LCD.

Important Notes

  • The new display is slightly thicker; during assembly, the thin clear protective sheet originally in front of the display must be omitted.
  • The original backlight LEDs must be removed.
  • The adapter’s backlight should be connected using two wires to the front panel PCB.

Images

3D and PCB views of the adapter:

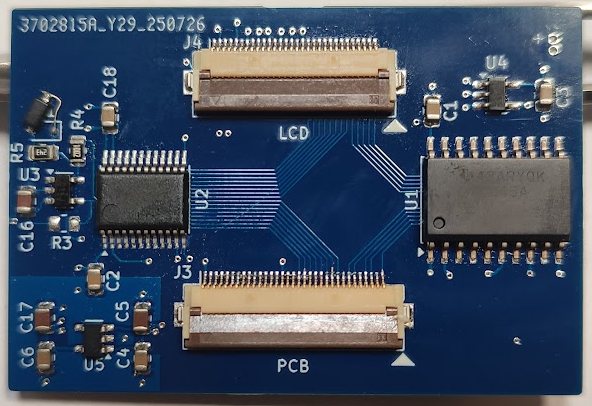

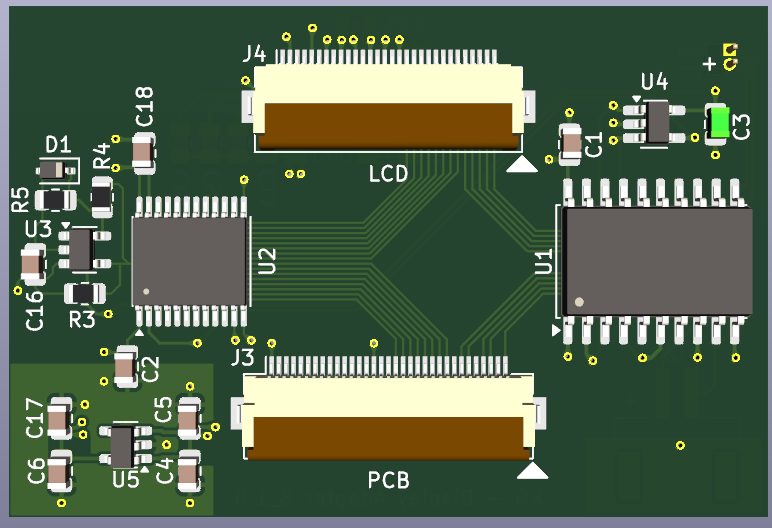

3D PCB PCB

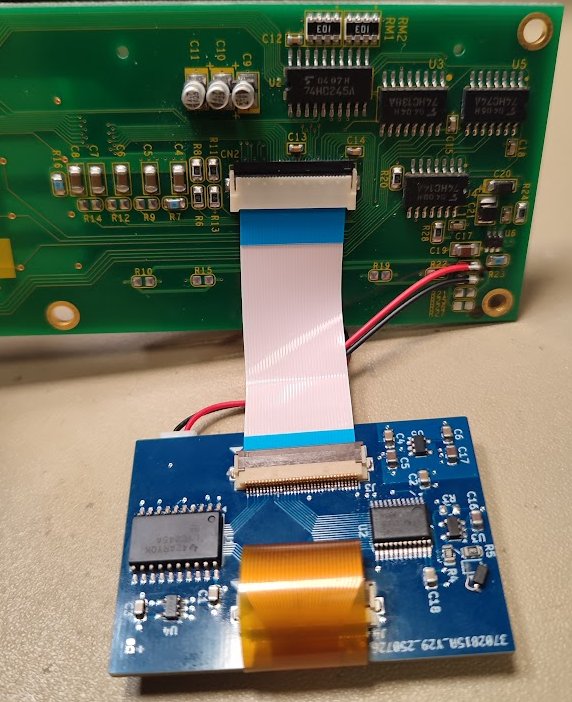

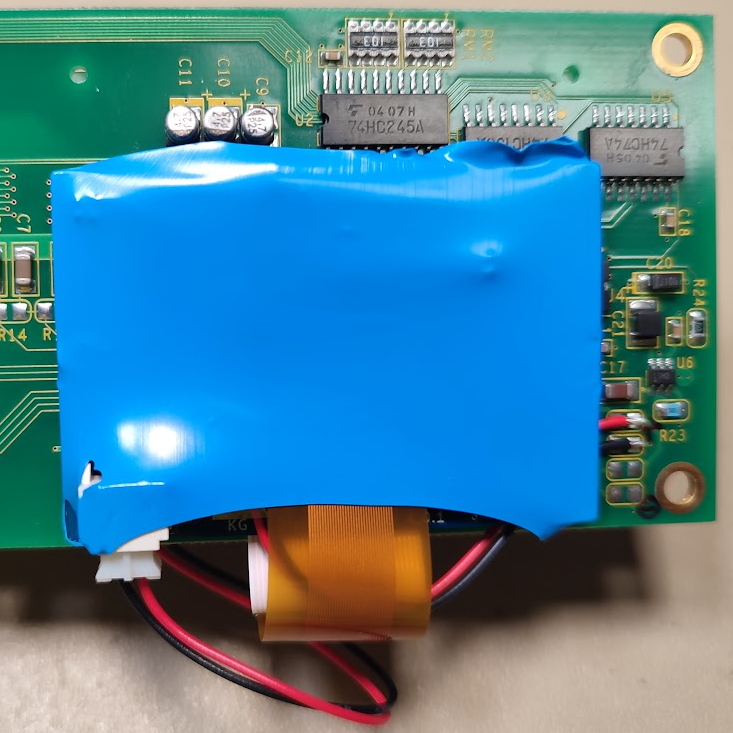

Integration and connection to the front panel PCB and display:

Connection Final Assembly

This project is shared for educational and hobbyist purposes. Use at your own risk.
