Real-Time Feedback DAQ Board
Project Description
This repository houses the KiCad schematic, layout, and BOM for a general-purpose data acquisition board (DAQ) that enables real-time feedback with latencies of < 2 us by direct interfaces of ADCs and DACs to the XEM7310 OpalKelly FPGA module. This DAQ board is designed for a digital feedback implementation of a clamp amplifier for the cut-open vaseline gap (COVG) electrophysiology method and may also find a use for other scientific studies requiring low latency control.

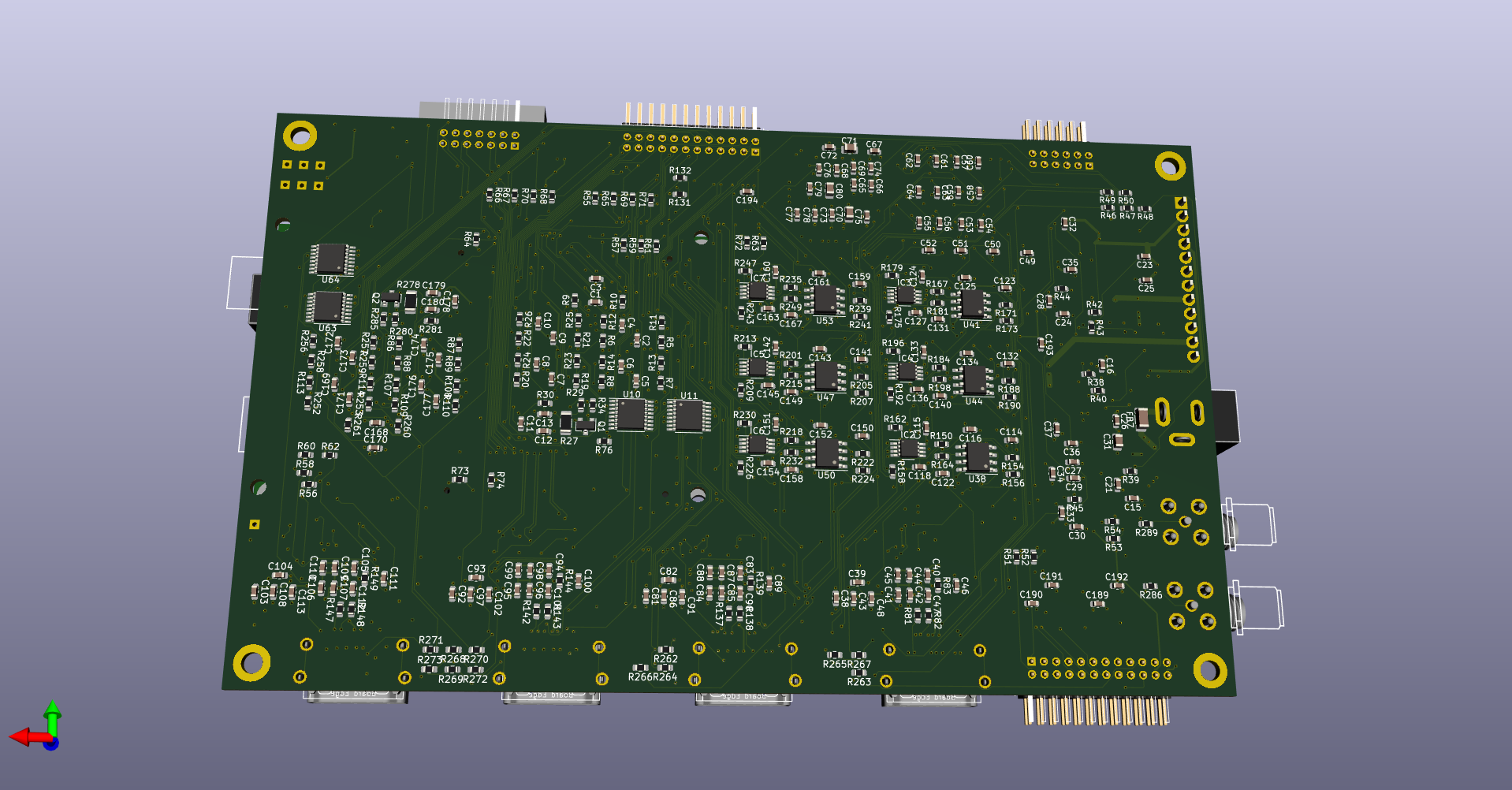

The schematic is here and a 3d rendering of the board is shown below:
Contact: Lucas Koerner at the University of St. Thomas, School of Engineering using the email: koerner dot lucas at stthomas.edu.
Board Description
Analog-to-Digital Converters (ADCs) and Digital-to-Analog Converters (DACs)
- High-speed ADCs AD7961 ADC @ 5 MSPS (x4): 16-bit differential input ADC with LVDS data interface to the FPGA, one cycle latency. Input must be differential with a common-mode voltage that matches the common-mode output of the part (~2.5 V).
- General purpose ADC ADS8686 (x1): 16 channels, maximum of 1 MSPS, SPI interface. The analog input range is programmable to +/-2.5 V, +/-5V, +/-10V. 8 channels are available on the pin-header J9; the other 8 channels are routed to the HDMI daughtercard connectors.
- High-speed DACs AD5453 DAC (x6): 14-bit, multiplying R-2R ladder with 100 ns settling time. These fast DAC outputs connect to the HDMI daughtercard connecters and have programmable gain with full-scale bipoloar ranges of +/- 15V, +/- 5V, +/- 2 V, +/- 500 mV, +/- 200 mV.
- General purpose DAC DAC80508 (x2): 8-channel, 16-bit, voltage output with 5 us settling time. The unipolar DAC outputs are converted to +/-7.5 V bipolar outputs before connecting to the HDMI daughtercard connectors. Pin header J11 has x8 bipolar outputs, x10 0-5V unipolar direct DAC output signals, and x2 "calibration" outputs which can be programmed to be the output of a current source (Howland) driven by the DAC.
Digital Interfaces
At connector J15:
- Digital I/O level-shifted to 1.8 V levels (x6). (signals DNO[0-5])
- Digital I/O level-shifted to 5.0 V levels (x6). (signals UPO[0-5])
- Digital I/O at 3.3 V levels (x4). (signals GPIO[0-3])
- I2C interface at 1.8 V (1V8_SCL, 1V8_SDA)
At connector J10:
- General LVDS I/O 4 differential pairs at 2.5 V. Can also be used as 8 LVCMOS I/O. Note the routing of these LVDS pairs is only very roughly impedance controlled. Performance at the highest frequencies will need evaluation.
At SMA connectors J16 and J17:
- J16 and J17, 3.3V LVCMOS routed to multi-region clock capable pins. Potential use is to synchronize with other systems.
At QWIIC connector, J18:
- The Sparkfun QWIIC connector has 4 pins. 3.3 V power, I2C (SDA and SCL), and Gnd. This is a standardized interface to I2C-based sensor boards.
Power
An input voltage of 6 to 7V is supplied at barrel connector J12 (PJ-002BH) with a maximum rating of 5 A.
The power system is as follows:
- Dual DC-DC converter to +/-16.5 V - The +/-16.5 V is regulated down to +/-15 V (linear)
- Regulator to 5 V (linear)
- Regulator to 3.3 V (linear)
- Regulator to 2.5 V for LVDS bank on FPGA (linear)
- Regulator to 1.8 V (linear)
- Voltage reference for 2.048 V.
All power nets are connected to a screw terminal block connector to allow for monitoring or override of the on-board regulated voltages.
FPGA capabilities
The XEM7310 OpalKelly FPGA module has a Artix7 FPGA (XC7A5T-1) with a USB 3.0 interface to a host computer (transfer rates up to 30 MiB/s). The module has 1-GiByte of DDR3 to enable burst data captures or burst data transfers.
Daughtercard Channels (x4)
The DAQ board has four connections to support analog daughtercards. The daughtercard connections are standardized and use an HDMI connector. For the COVG electrophysiology amplifier, these channels are the bath clamp, guard clamp, V1/I top clamp, and (optionally) the V2 monitor. Future experiments could use one or up to all of these daughtercard connections.
Channel connection definition
The generic HDMI-A cable pinout is defined as follows with 15 (non-shield) pins used:
- Power: (3 pins) +5V, +15V, -15V
- GND: (1 pins)
- Analog inputs to ADCs: (4 pins)
- OUT_P, OUT_N differential pair (x1) to 5 MSPS ADC
- single-ended out AMP_OUT, CAL_ADC each connect to an individual channel of 1 MSPS ADC (ADS8686)
- Analog reference output: (1 pin) buffered ADC common-mode voltage (nominal 2.5 V) from the AD796x.
- Digital outputs from DACs: (3 pins)
- Fast DAC1 (CMD)
- Fast DAC2 (CC) on channels 0 and 1. From general-purpose DAC on channels 2 and 3.
- From general purpose 5 us settling time DAC (DAC8050). Either voltage source or current source (Howland current pump), programmable (CAL_DAC).
- I2C Digital control: (2 pins) SDA, SCL (@ 3.3 V levels). Pull-up resistors (3.3 kOhm) are placed on the DAQ board. A common approach is for the daughtercards to use an I/O expander (such as the TCA9555) to generate many control signals from the 2-wire I2C interface.
- Utility: (1 pin) Resistor jumper sets analog in, analog out, or digital I/O (@ 3.3 V levels). The default stuffing option is to connect this pin to the general-purpose ADC (ADS8686).
| Pin | HDMI name | Generic Daughtercard | Notes |
|---|---|---|---|
| 1 | Data2+ | fastDAC1 | ~ 1 us settling time. Programmable full-scale range. |
| 2 | Data2 shield | gnd | |
| 3 | Data2- | Analog/GPIO1 | DAC8050, 16 bit, 5us settle, 5 V supply |
| 4 | Data1+ | fastADC+ | Analog output to AD7960/AD7961. Differential low-pass filter on DAQ board. Common mode voltage must match 2.5 V. |
| 5 | Data1 shield | gnd | |
| 6 | Data1- | fastADC- | Analog output to AD7960/AD7961. Differential low-pass filter on DAQ board. Common mode voltage must match 2.5 V. |
| 7 | Data0+ | fastDAC2 | ~1 us settling time. Programmable full-scale range. |
| 8 | Data0 shield | gnd | |
| 9 | Data0- | Analog/GPIO2 | Analog output to ADS8686 1 MSPS. Chip inputs includes a programmable PGA for full-scale range up to +/-10V |
| 10 | Clock+ | 15V | linear regulator, 75 mA max per channel |
| 11 | Clock shield | gnd | |
| 12 | Clock- | VCM | reference voltage from the AD796x buffered on the DAQ board, nominal 2.5 V |
| 13 | CEC | -15V | linear regulator, (estimate is 75 mA max per channel with all 4 channels connected) |
| 14 | Reserved | selectable auxillary | Resistor jumper sets analog in, analog out, or digital I/O (@ 3.3 V levels). Default stuffing option is to connect to the general purpose ADC (ADS8686). |
| 15 | SCL | SCL | I2C clock. Pull-up resistor on DAQ board, 3.3 V levels. |
| 16 | SDA | SDA | I2C data. Pull-up resistor on DAQ board, 3.3 V levels. |
| 17 | Gnd | Gnd | |
| 18 | 5V | 5V | Power from linear regulator (target 200 mA max per channel with all 4 channels connected) |
| 19 | HPD | Analog/GPIO3 | Analog output to ADS8686 1 MSPS. Chip inputs includes a programmable PGA for full-scale range up to +/-10V |
Example Daughtercard Pinout

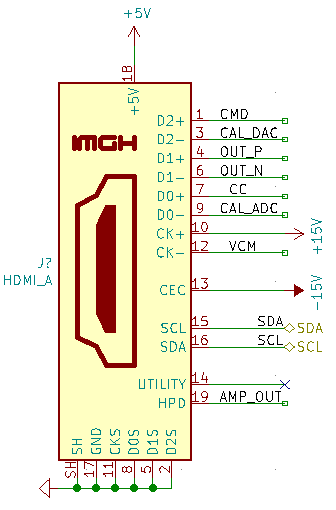

The pin names shown in the image below are an example daughtercard interface (COVG bath-clamp).
FPGA Setup
Because of the LVDS connections to the AD7961 FPGA bank 34 needs to be at 2.5 V. To do so remove ferrite bead (FB8) from the OpalKelly module. See the section "Setting the Expansion Connector I/O Voltages" here.
For Board and FPGA Designers
KiCAD Setup and Required Libraries
Symbols and footprints custom to this design (and the COVG project in general) are housed in the covg-kicad-lib repository. This library should be a project specific library in your KiCAD Symbol Library Management and Footrpint Library Management.
When at all possible, footprints are used from the KiCAD libraries.
Impedance control of LVDS lines
Impedance control of the LVDS lines to the AD796x was done using the 6-layer stackup from PCBWAY with board thickness of 1.6 mm and copper (outer/inner) thickness of 1oz/1oz. The design has the impedance-controlled LVDS signals routed on the top or bottom layer (and therefore a microstrip referenced to layer 2 or layer 15). The differential pairs are skew matched on both the DAQ board and the FPGA modules. The (inter pair) signals for each AD796x have effectively a half clock cycle of slack for skew so are reasonably but not precisely length matched. The DCO signal (AD796x clock out) is routed to a clock capable pin on the XEM7310.
Power Planes on the PCB (6 layer board)
- Top: routing (preferred left/right)
- Route 2: GND
- Route 3: 3.3V and 1.8V
- Route 14: +15V, -15V
- Route 15: 5V, 2.5V, and 6V input
- Bottom: routing (preferred up/down)
Routing and autorouting methods
The AD796x impedance controlled differential pairs were routed using the KiCAD differential pair tool and the power planes were drawn in KiCAD to match the location of the various power domains. Parts were placed manually and the 'Replicate layout' KiCAD plug-in was used to duplicate the placement of identical blocks. Then the board was exported to use the tool freerouting to route most of the board. After freerouting it was found to be critical to confirm that inner layer routing did not destroy the integrity of the power planes.
FPGA pinout
-
pinout of the Artix7
Manufacturer's Part Numbers and Bill of Materials
The KiCAD schematic uses a field Manf# to specify the precise manufacturer's part number for component sourcing. This also allows the (great) KiCAD External Plugin KiCost to be used to check board component cost and availability. One complication is that the OpalKelly XEM7310 exports as one BOM line item. Ultimately, though, the board must be populated with two Samtec BTE-040-02-F-D-A high-density connectors at silk-screen labels MC1 and MC2. See the part position file:
MC1 Connector_SMD BTE-040-02-F-D-A 108.6849 33.1811 180.0000 top
MC2 Connector_SMD BTE-040-02-F-D-A 108.6849 73.1911 180.0000 top
The bill of materials files are here.
Note that the "chip shortage of 2020/2021" has made component sourcing complicated and we hope this bottle-neck eases in the near future.
Assembly Guidance
The prototype boards were assembled by PCBWAY. The information provided to the assembly house is in the assembly folder.
Board Issues
Please see the issues section of the GitHub repository. The most significant considerations are:
- The fast DACs must be flipped (upside down): pin 1 -> pin 8, pin 8 -> pin 1, etc.
- The switching power supply does not source enough current so has been removed. 3 voltages are provided externally: 7 V, +16.5 V, -15 V.
- The negative -15 V output regulator demonstrated low-level oscillations so has been removed and is bypassed.
Other board design notes
Unconnected level translator pins unused inputs The level translator used can leave unused pins disconnected.
Barrel jack: The Opal Kelly FPGA barrel connector is 2.1 mm ID / 5.5 mm OD while the DAQ board power jack 2.5 mm ID / 5.5 mm OD are different sizes.
Why do the barrel jacks have 3-pins and what to do with the 3rd pin? 3-pin DC jack
HDMI cable casing is 20 mm so at least 25 mm pitch is needed between connectors.
Companion Software and Firmware
- The FPGA code is hosted at https://github.com/lucask07/covg_fpga
- The Python host computer to FPGA code is available at https://github.com/Ajstros/pyripherals/
Funding
Research reported in this publication was supported by the National Institute Of Neurological Disorders And Stroke of the National Institutes of Health under Award Number R15NS116907. The content is solely the responsibility of the authors and does not necessarily represent the official views of the National Institutes of Health.
Copyright and Licence
Copyright 2021 Lucas J. Koerner.
See the Git repo for License details.
