rp2040_audioboard

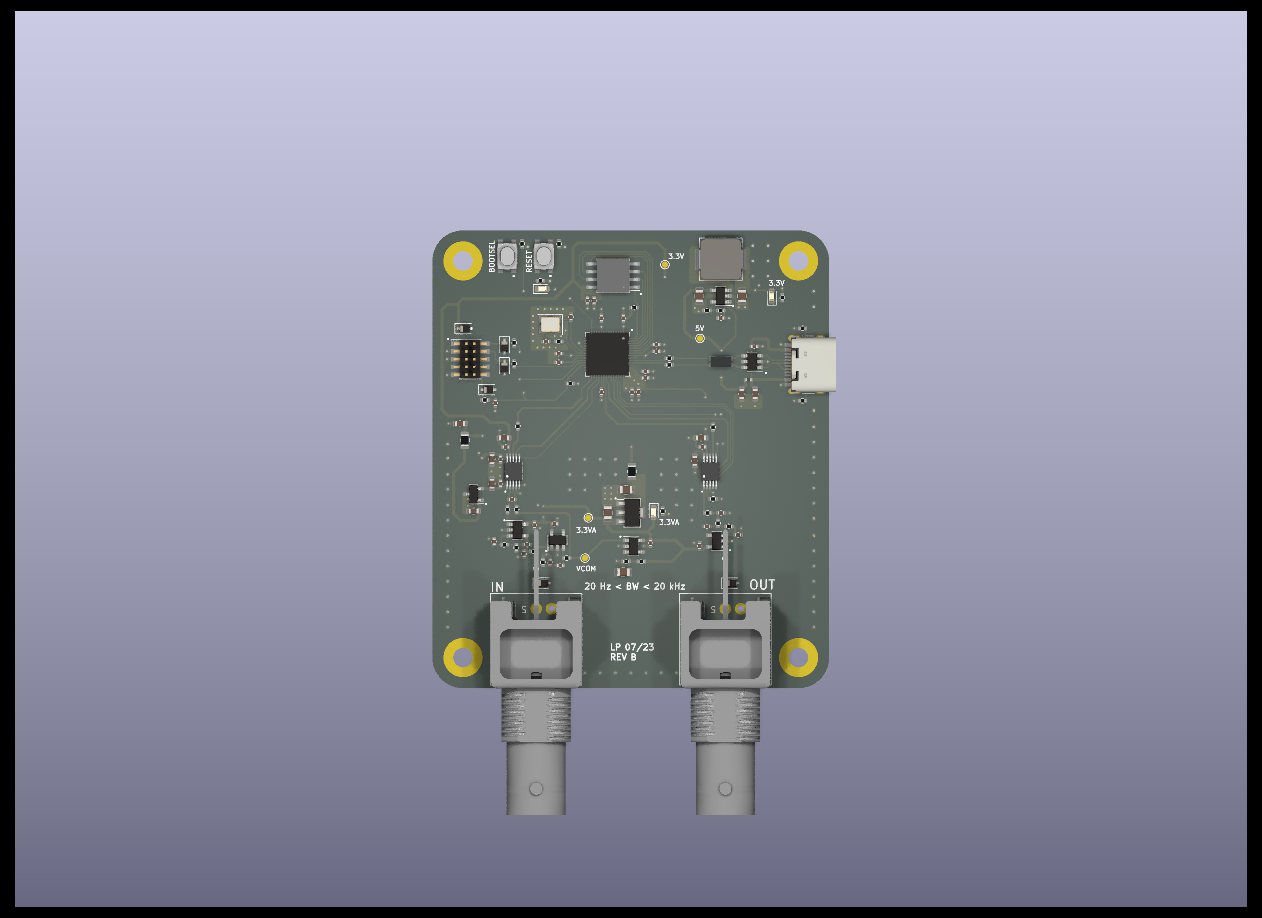

Mixed signal audio board using the rp2040:

For an interactive KiCad experience see: RP2040 Audioboard.

This project is a variation of the board from phils lab mixed signal course (https://www.phils-lab.net/courses). It's purpose is to serve as a general input/output signal analyzer/generator for audio projects.
