README

TCIS-music-board

A simple board to make music with a 555 timer. Designed with KiCad.

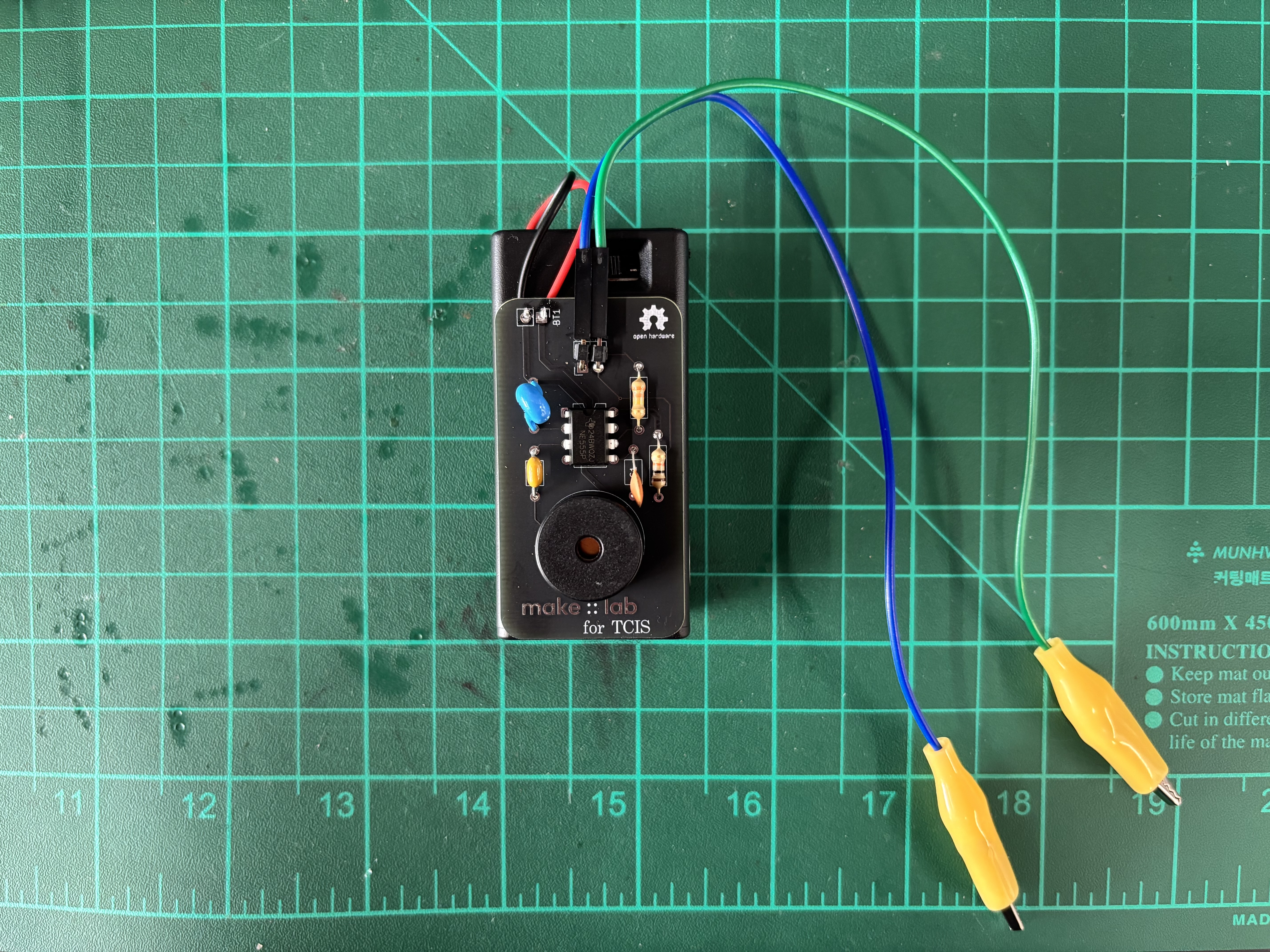

overview

Video: YouTube

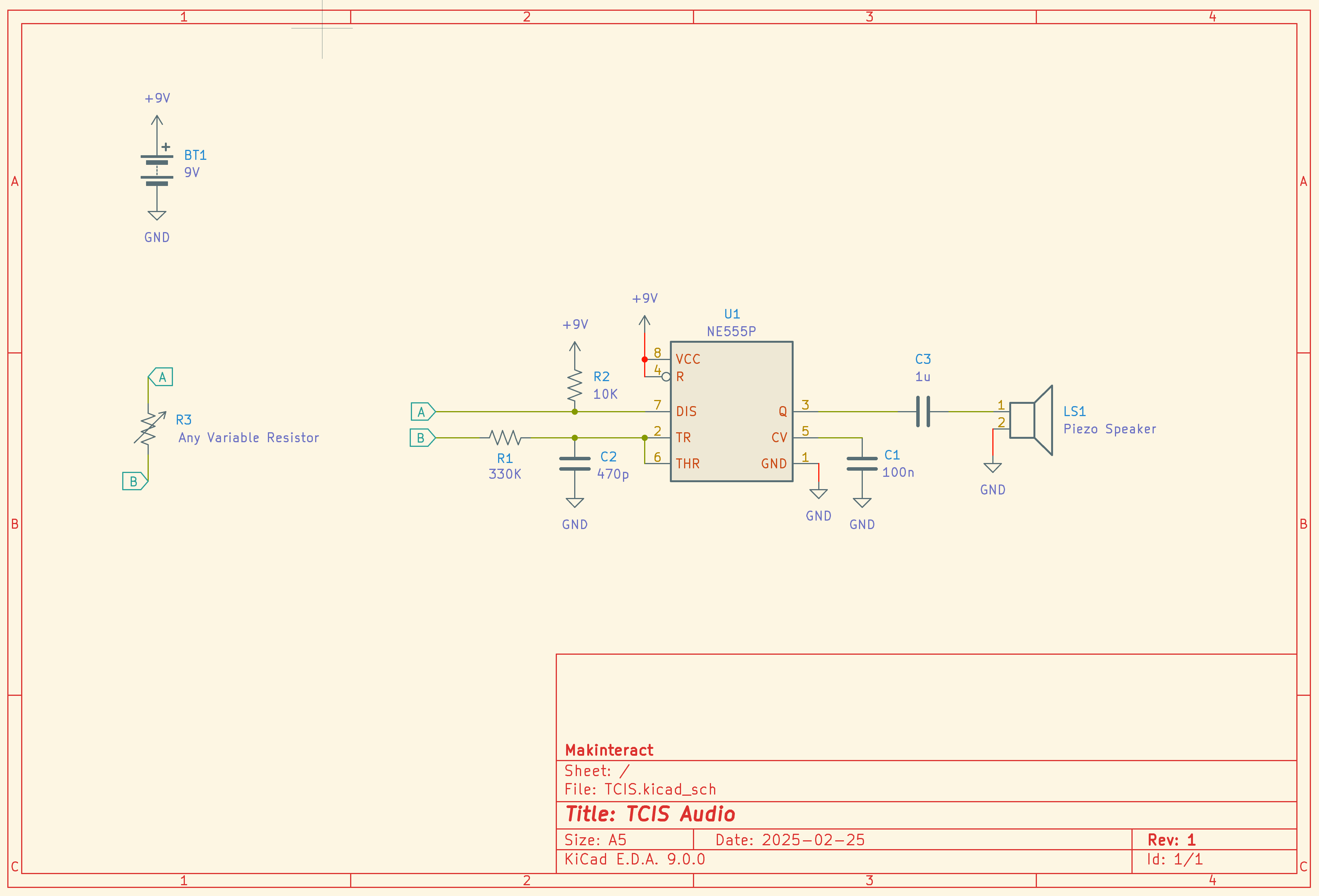

Schematic diagram

Here the full schematics: schematics and board

Bill of Material

PartNotes
9V battery
Battery case
R1 330K
R2 10K
C1 100n
C2 470p
C3 1u
Piezo SpeakerLike GEC17C
NE555
Alligator clips
Headers (100 mil)
