README

S-MIX-replacement

Replacement PCB for broken SNES S-MIX ICs and N64 AMP-NUS ICs

Contributors

  • borti4938
    • he had the original idea of this board and helped a lot with the redesign.

Changelog

v20210526

  • Moved to KiCad
  • changed overall layout
  • optimized to use single-layer

Nice-to-know

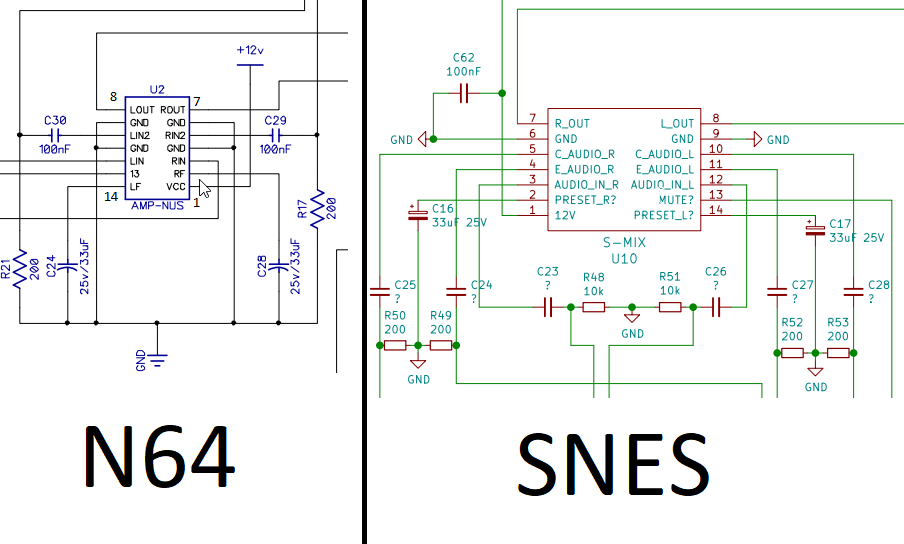

During my investigations I found out, that the S-MIX of the SNES and the AMP-NUS of the N64 are functional identical. I even swapped the chips between consoles and everything worked like a charm.
