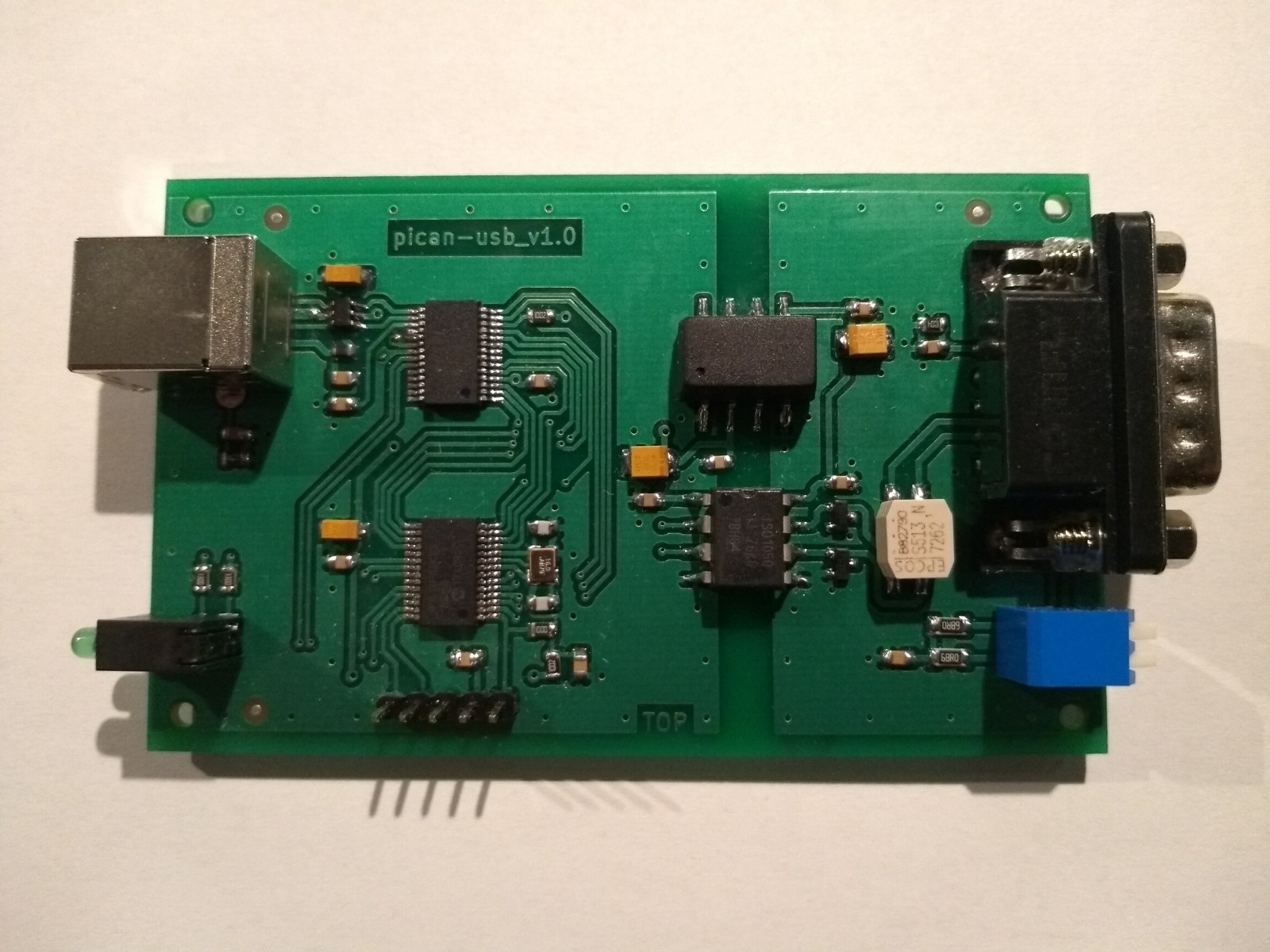

pican-usb

Open-Hardware CAN-USB interface with optoisolation

Features

  • linux SOCKETCAN driver compatible (slcan)
  • CANBUS side optoisolation (ISO1050 based)
  • powered by USB (build-in DC/DC converter)
  • hardware CAN and USB fifo buffers (8-deep CAN and 256-deep USB)
  • virtual serial port (FT245 based)
  • switchable build-in CAN terminal-resistor (symmetrical)
  • up to 1Mbit throughput (no serial port bottleneck)
  • EMC and ESD protection (both CAN and USB side)
