README

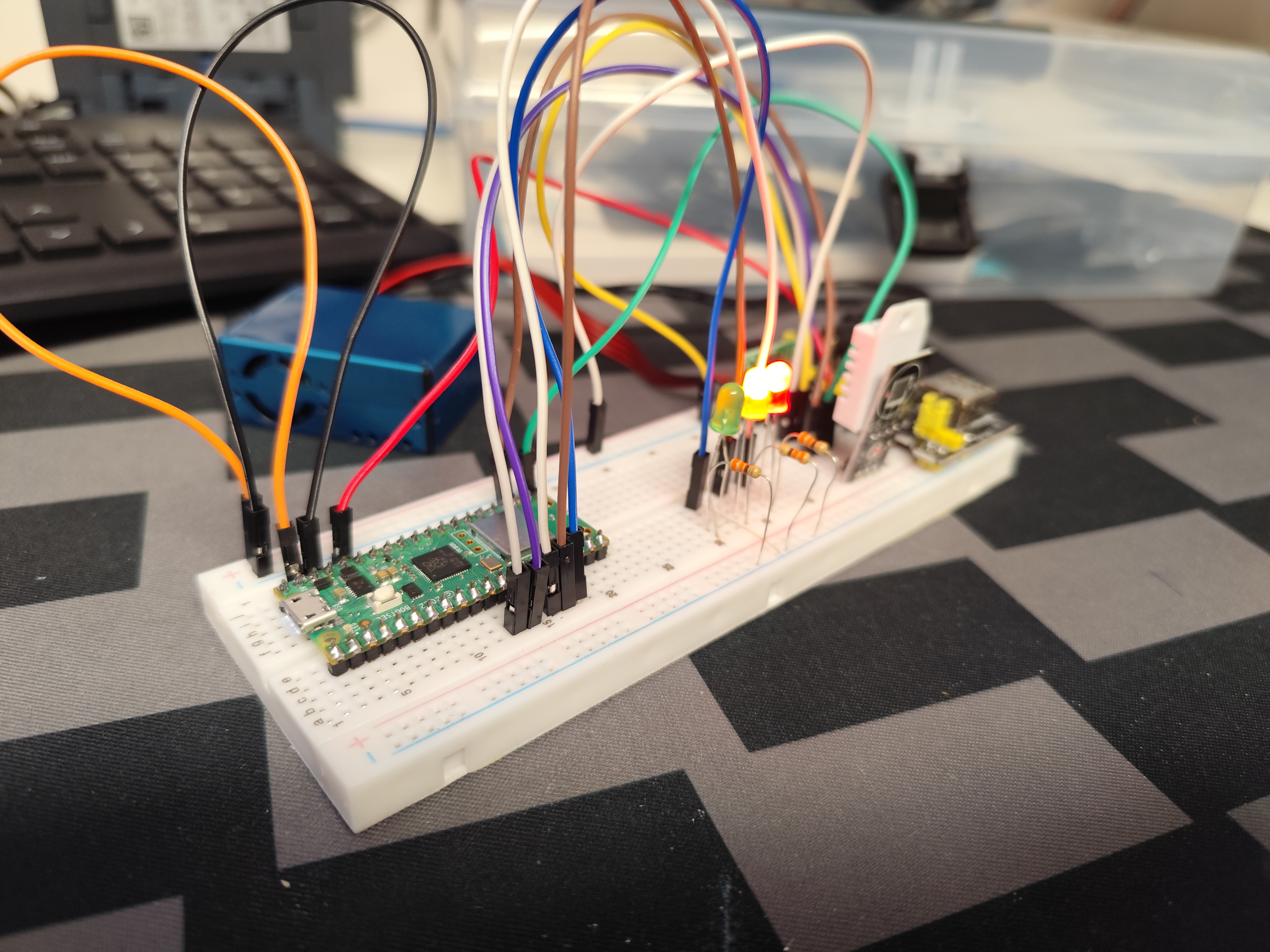

RPi Pico W + DHT22 + PMS5003 sensor

DHT22 - GPIO16
PMS5003 - TX GPIO8, RX GPIO9

status led:
power status (red) - GPIO10
wifi status (yellow) - GPIO11
data status (green) - GPIO12
