Description

The quadcopter based on ESP8266 wifi module

README

Cicada-0802

Cicada-0802-star is FPV quadcopter based on Cicada Flight Controller. Distance between motors 75mm in diagonal. Mass is 48 gram with GNB-380mAh-LiHv-1S. Time of flight is about 2 minutes.

Parts List

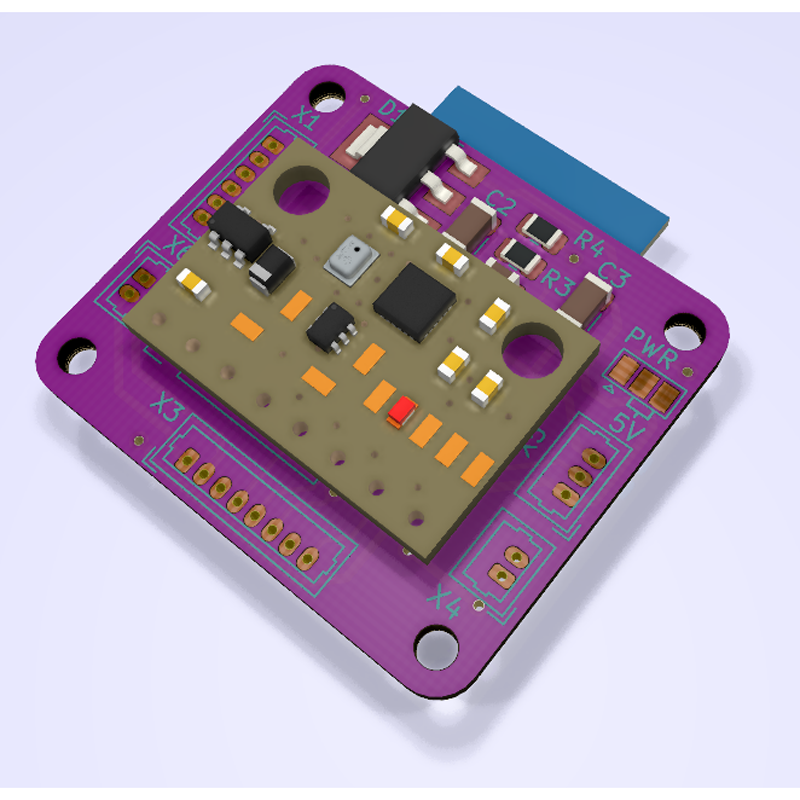

• cicada-micro-v2 - flight controller based on ESP-12E module
• teeny pro 5a - electronic speed controller
• happymodel RS0802 KV20000 - motors
• HQProp 40MMX3GR - propellers
• akk ba3 - camera

Electrical schematic

Views
