README

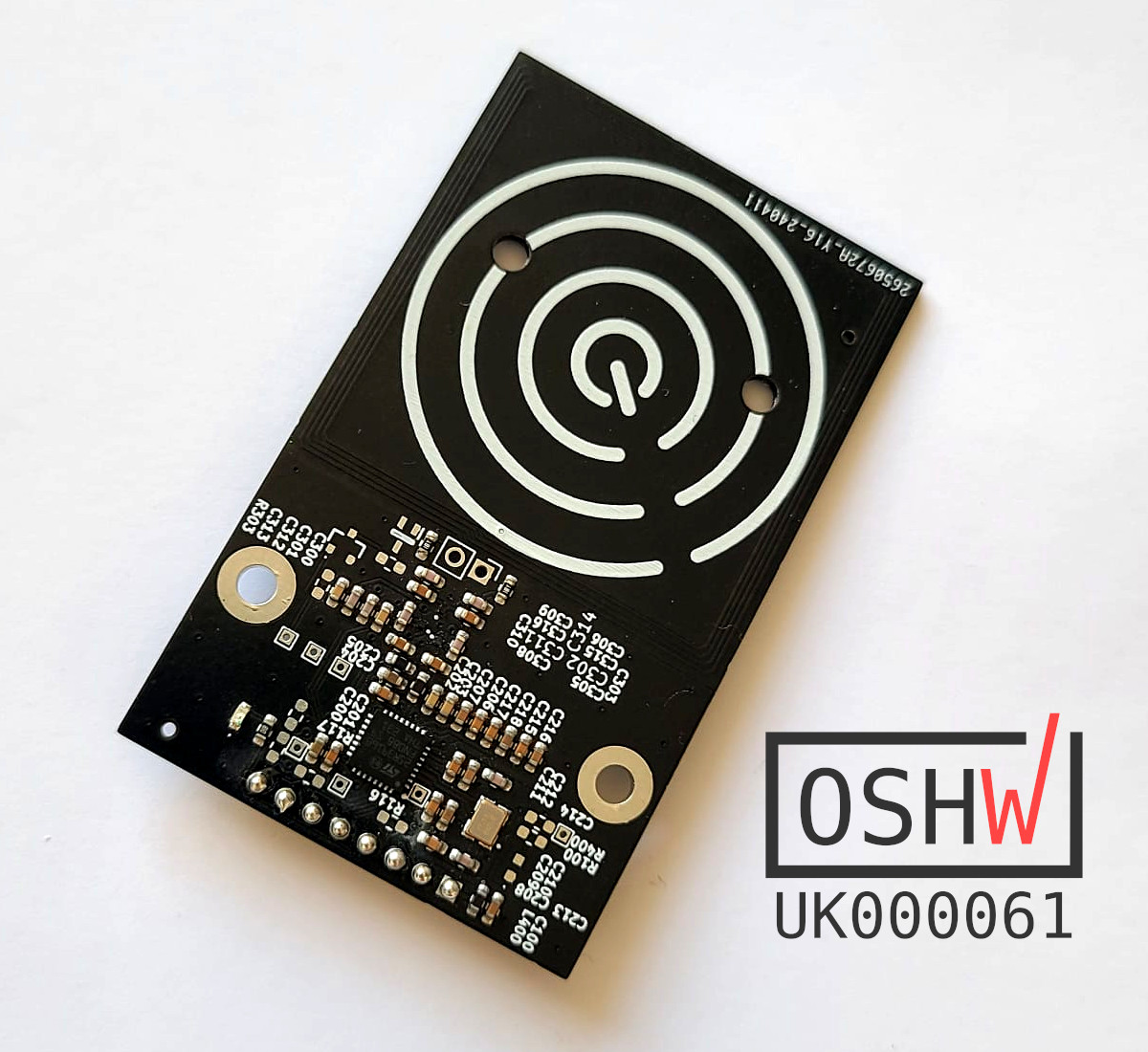

Vicino NFC/RFID Board

An RFID/NFC reader using the ST Microelectronics ST25R3916B chip. Hardware available from the MCQN Ltd. shop.

For using the board see the Examples.md page.
