EMES - Epic Minimalist Entertainment System

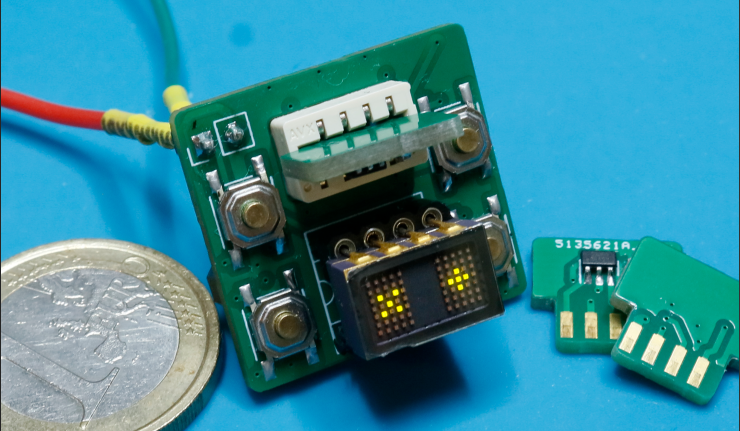

EMES - is a very minimalistic DIY handheld game console.

Work in progress.

EMES has the following specifications:

• Screen: 15x10 pixels, LED
• Input: four button keyboard
• Sound: Magnetic buzzer
• Physical dimensions(approx): 40x32x14mm
• Removeable 8-pin cartridges

The console doesn't have an onboard CPU/MCU, instead an MCU is placed on every removable cartridge.

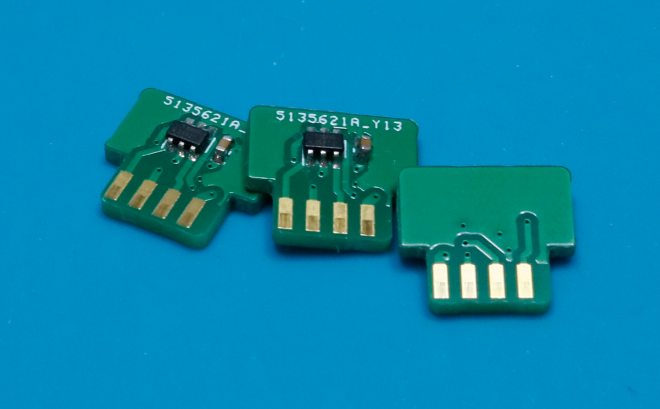

Each cartridge features an ATTiny10 MCU with the following specs:

• Speed 8MHz
• Peogram/data flash: 1KB
• RAM: 32 bytes
• IO: 4
• ADC: 8bit

Games

• Pong
• Snek - a snake variant, edge wrapping
• Egg - a N1ntend0 Game & Watch-like egg-catching game
• Brik - a Tetris-like
• Simon - Simon Says
