norns-shield-midi

norns shield variant with hardware MIDI in/out (TRS minijack connectors), based on the 210330 version of the original norns shield

also:

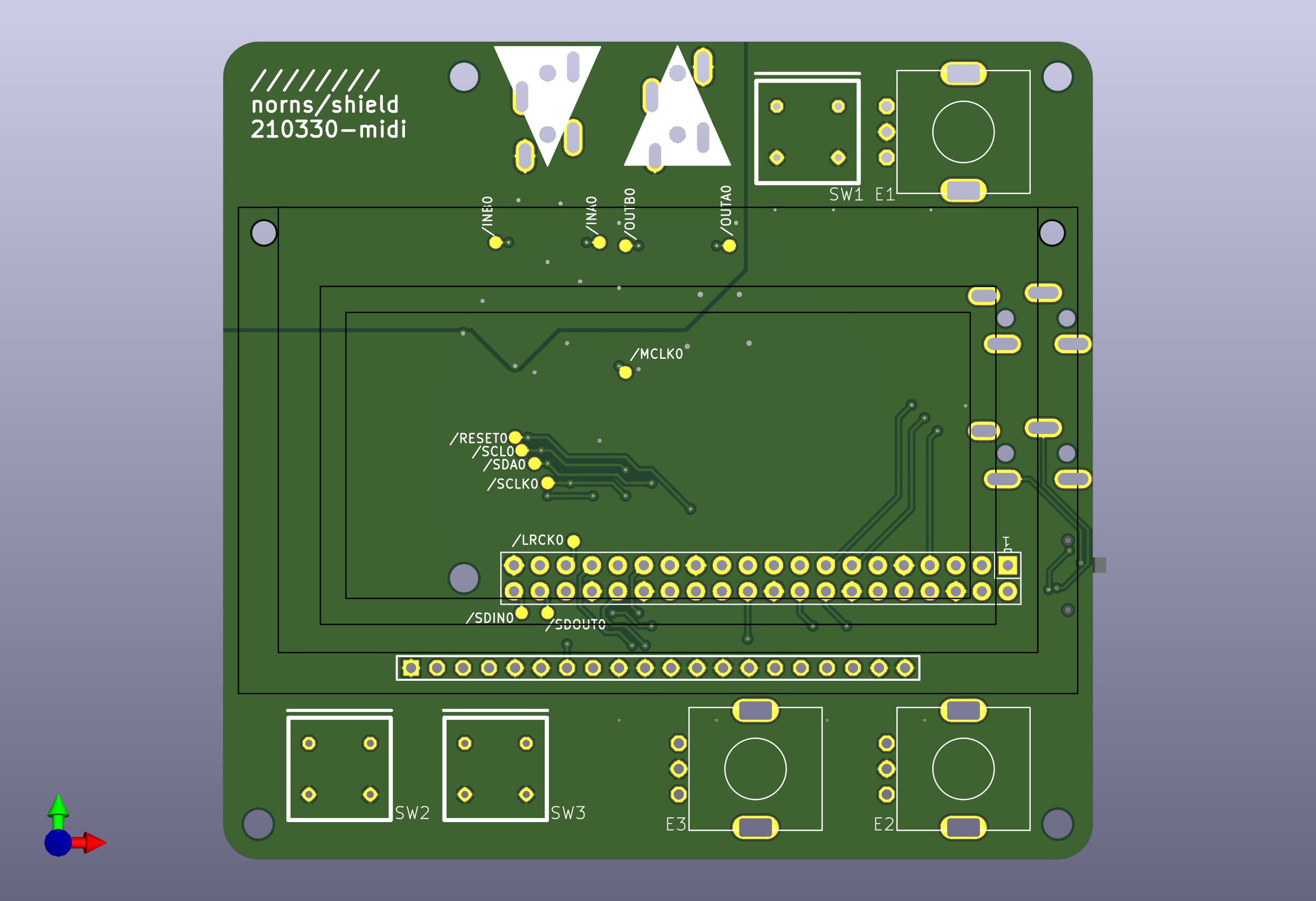

• PCB files ported to kicad
• board outline cleaned up a bit (slightly smaller? probably won't matter)
• MIDI in works with Type-A or Type-B (circuit based on LPZW auto-crossover MIDI input, same as shieldXL i think?)
• MIDI out has a switch to choose between Type-A and Type-B

getting one

this design is currently untested but boards are on the way to me. once i get them, finish assembly, and test one, i'll (try to remember to) update this page.

i'll have a few extra boards (with SMT components assembled), if you're interested in buying one from me for cost of parts+shipping feel free to reach out - discord username is same as github username, and i'm @m04 on lines
