README

buck-converter-automotive

12V to 5V 1A buck converter to automotive purposes

Requirements for rev 1.0

  • efficient step-down synchronous converter
  • fuse
  • TVS diodes
  • reverse polarity protection
  • LC input filter
  • power-on LED

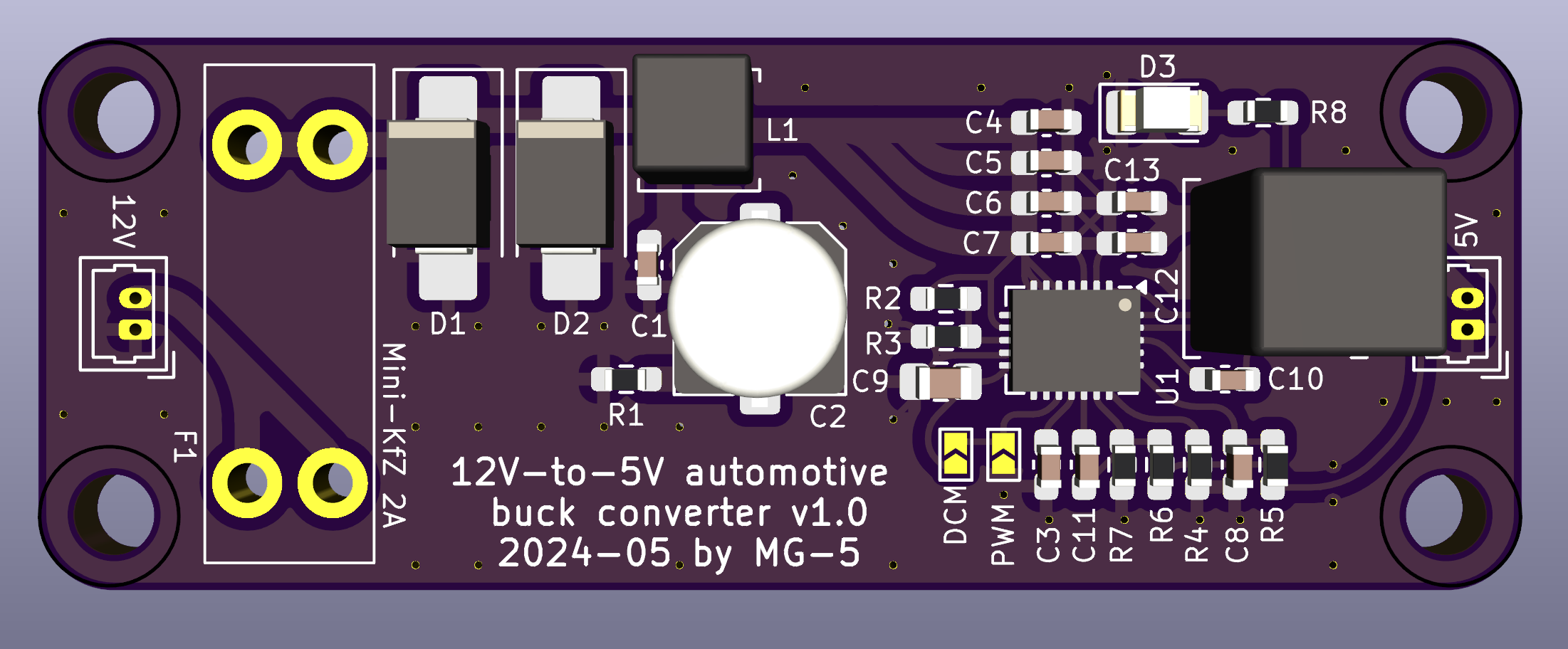

Pictures (rev 1.0)
