Escornabot keypad

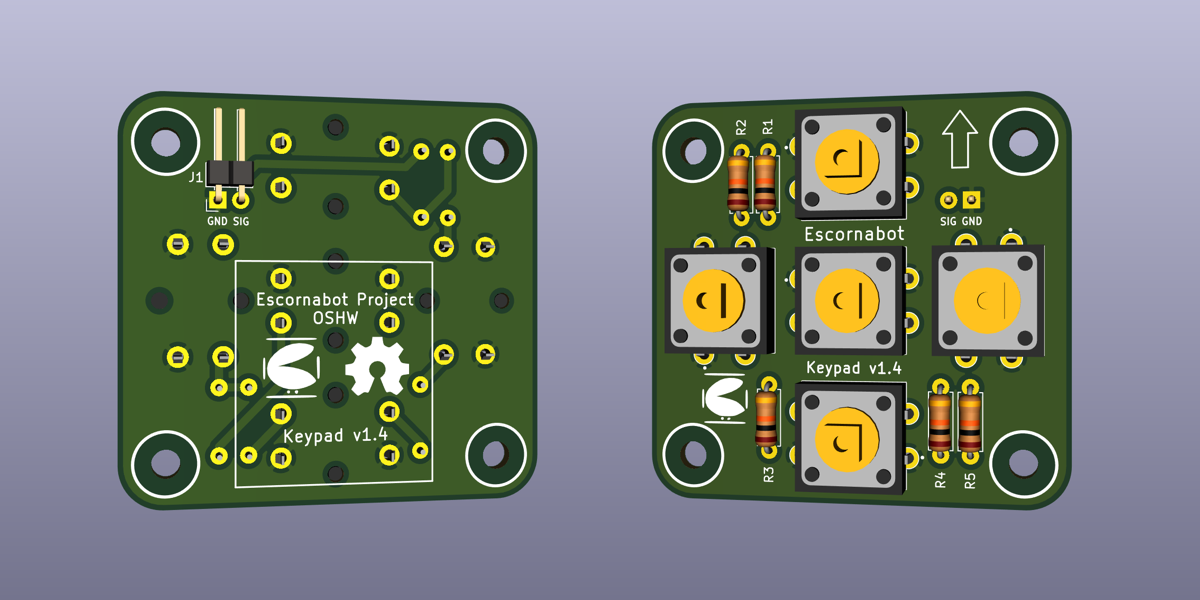

My own implementation of a keypad for the Escornabot educational bot. Firstly created in May-2018 has now been updated, improved and published.

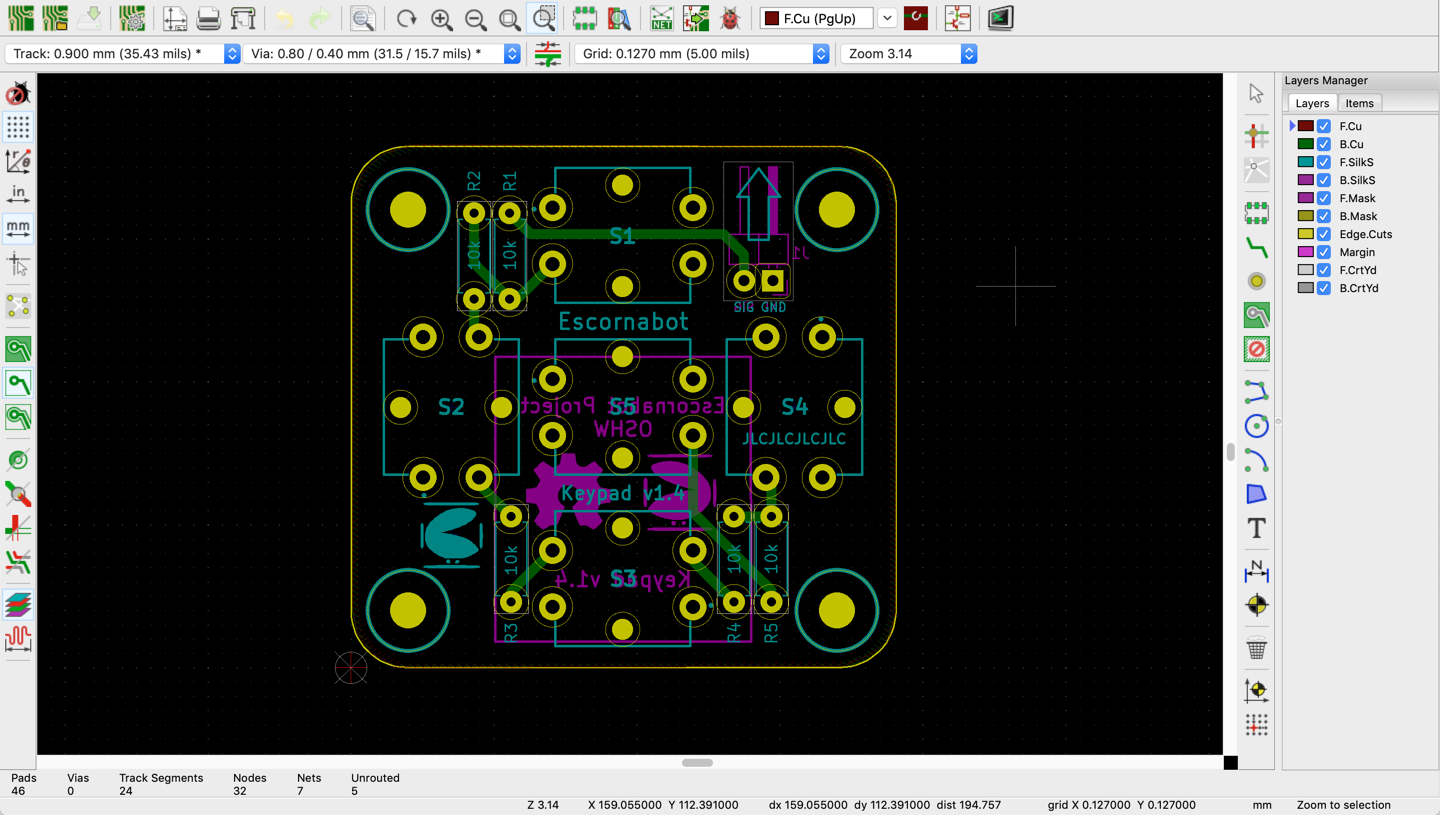

An opensource hardware project developed with and opensource EDA: KiCAD EDA 5.1

Manufacturing

If you just want to get your PCBs done, use the gerber file with any of the PCB manufactures around the globe like:

• JLCPcb (note that my PCB has already markings for this provider)
• PCBWay
• OSHPark
• many, many others ...

NOTE: approximate board dimensions 48 x 46 mm, 2 layers, 1.6 mm thickness

Fritzing

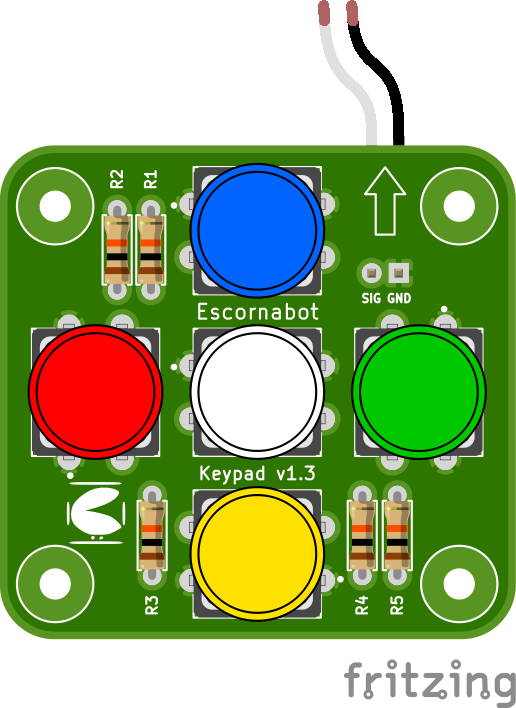

There's available a fritzing part for this design:

LICENSE

This work describes Open Hardware and is licensed under the CERN-OHL-S v2 license. It is distributed WITHOUT ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING OF MERCHANTABILITY, SATISFACTORY QUALITY AND FITNESS FOR A PARTICULAR PURPOSE. Please see the CERN-OHL-S v2 for applicable conditions.

All media and data files that are not part of the hardware design are licensed under the Creative Commons Attribution 4.0 BY-SA license.

More information about licenses in CERN openhardware licenses, Opensource licenses and Creative Commons licenses.
