The Arduino UNO Inductance Measurement Shield is a dedicated peripheral board designed to enable precise inductance measurements, a functionality absent in most conventional digital multimeters (DMMs). While specialized LCR meters offer inductance measurement, they typically lack broader capabilities such as voltage or current measurement. This shield addresses this gap by providing a compact, integrated solution for inductance quantification via frequency-domain analysis.

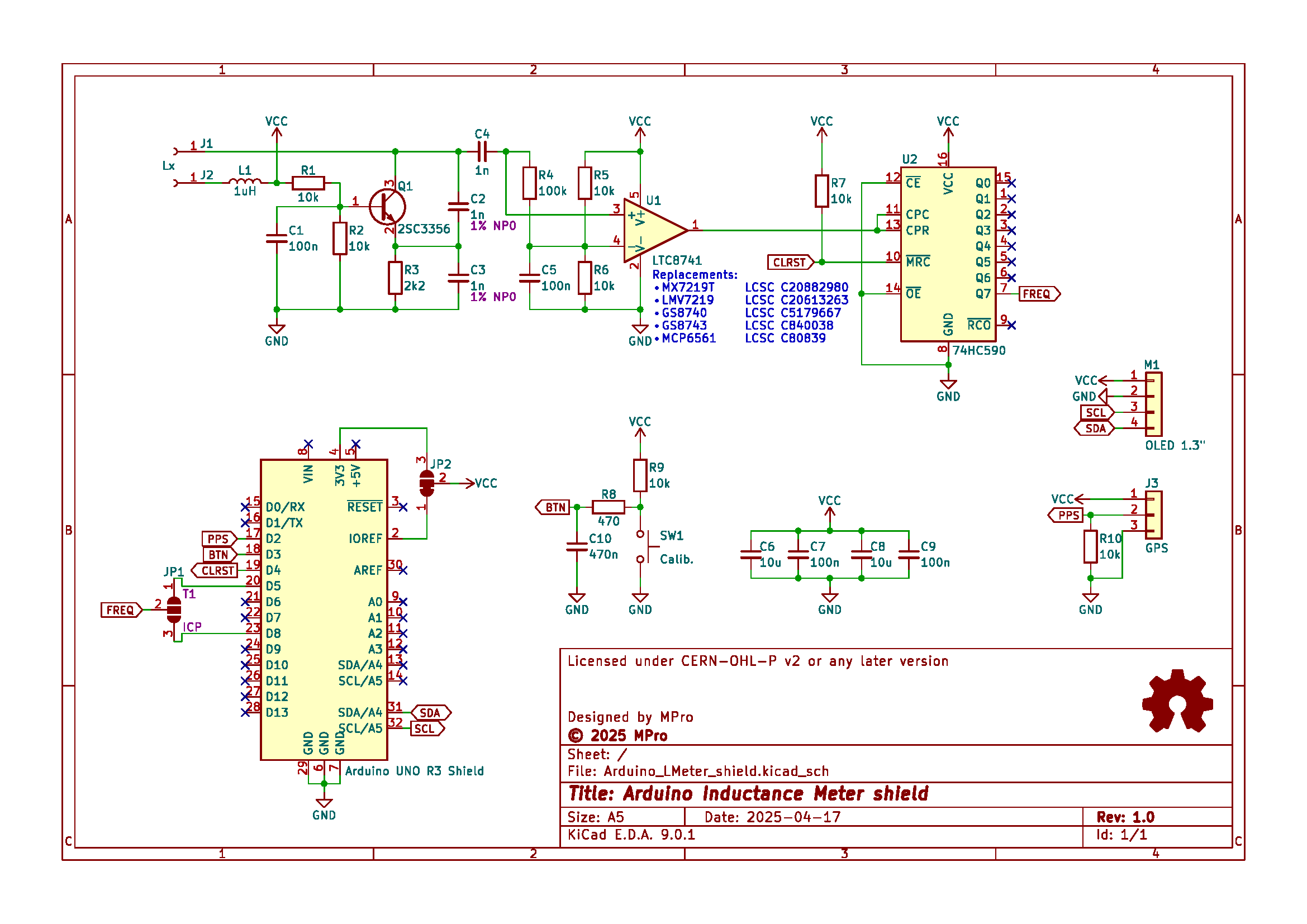

The shield employs a Colpitts oscillator topology modified to exclude the inductor. The unknown inductor (Lx) is connected externally via test leads, completing the resonant circuit.
Key design elements include:
An on-shield OLED displays measured inductance values in real time, eliminating external monitoring requirements.

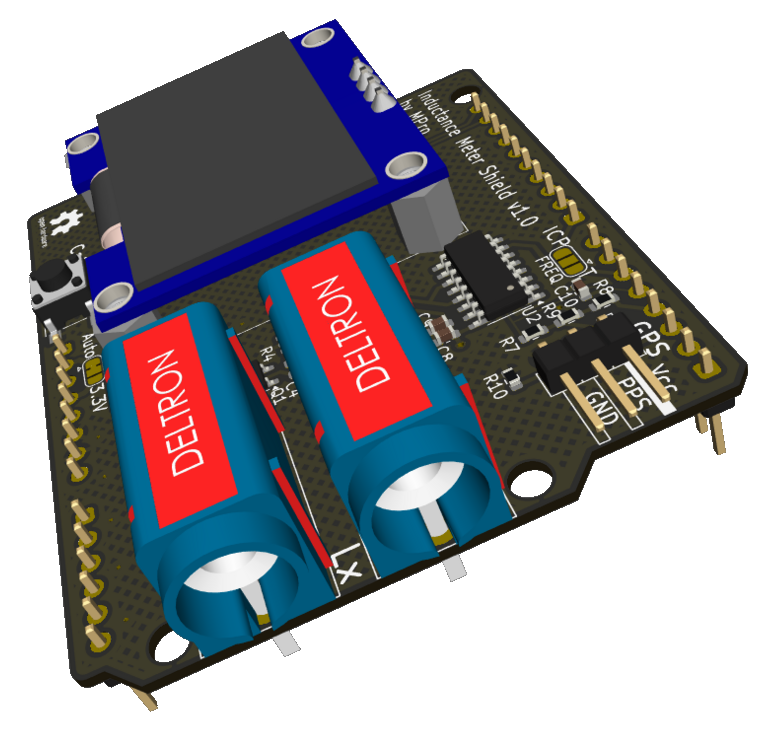

(click on the image to see the 3D model)
For Arduino UNO:
The production files can be found in the location: https://github.com/michpro/Arduino_LMeter_shield/blob/master/production/
The software was developed in the Arduino environment (Source).
The running program can be in one of four defined states:
The Arduino calculates inductance using the resonant frequency (f) via the formula:
$\Large L_{x}=\frac{1}{(2\pi f)^2\cdot C_{total}}-L_{ref}$
Process Flow:
Displays the calculated Lx value on the OLED display.
If the measuring terminals are short-circuited without any additional inductance, pressing the ‘Calib’ button will cause the measured inductance value to be used to compensate for subsequent measurements (zeroing).
Copyright © 2025 Michal Protasowicki
Source: https://github.com/michpro/Arduino_LMeter_shield
Hardware part of this project is released under CERN Open Hardware Licence Version 2 - Permissive.
Source: https://github.com/michpro/Arduino_LMeter_shield/LMeter
Software part of this project is released under MIT Licence.
