STM32F103 CAN Interface PCB
A custom 2-layer PCB designed in KiCad featuring an STM32F103CBT6 microcontroller, SN65HVD230 CAN transceiver, USB Type-C power input, SWD programming interface, and selectable CAN bus termination.
This repository contains hardware design files only. No firmware has been implemented at this stage.
Features
- STM32F103CBT6 microcontroller
- SN65HVD230 CAN transceiver
- USB Type-C power input
- AP2112K-3.3 voltage regulator
- External 8 MHz crystal oscillator
- SWD programming/debug interface
- Jumper-selectable 120Ω CAN termination
- Power indicator LED
- CAN activity LED
- 2-layer PCB design
3D Render

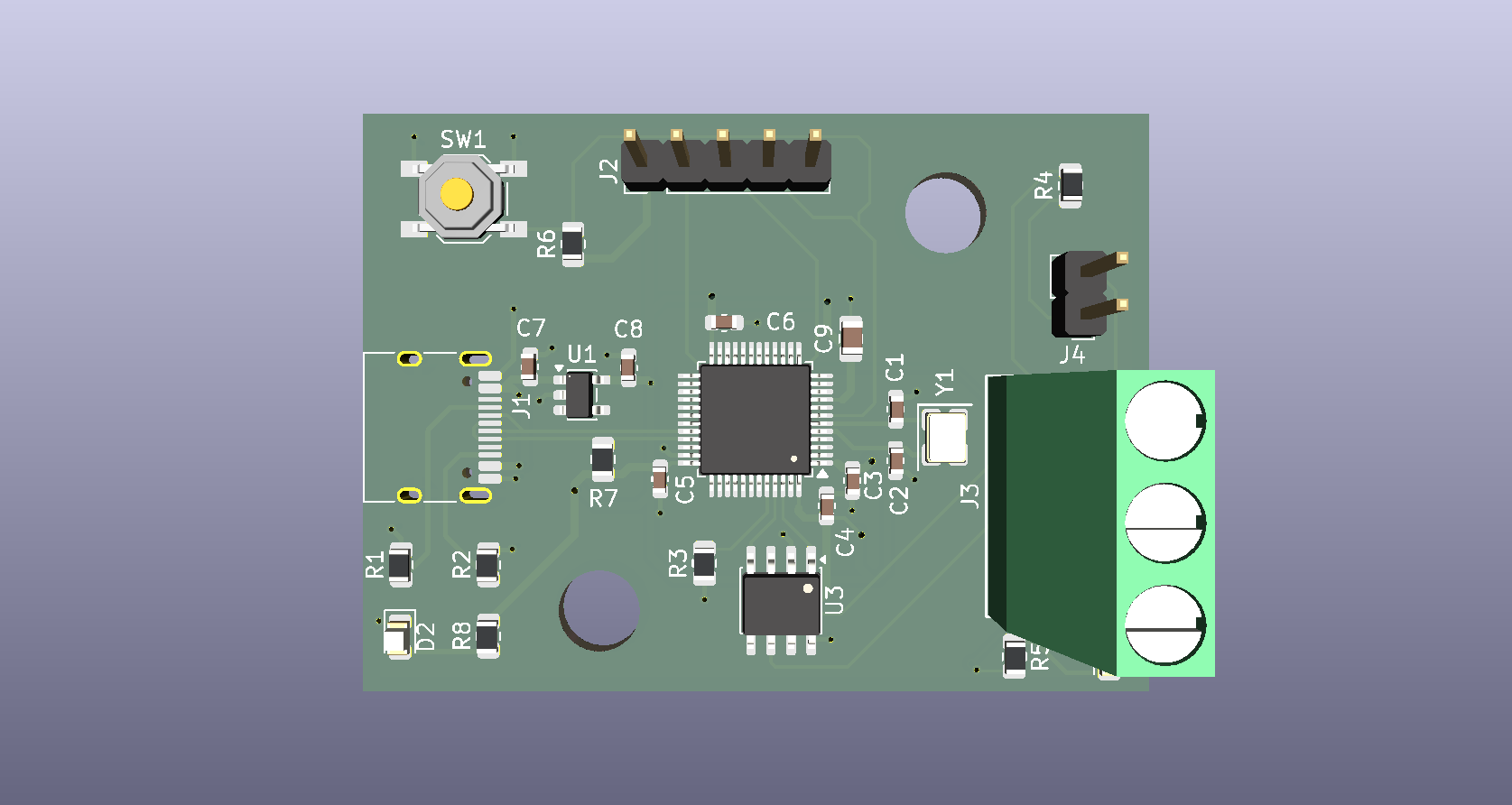

Front View

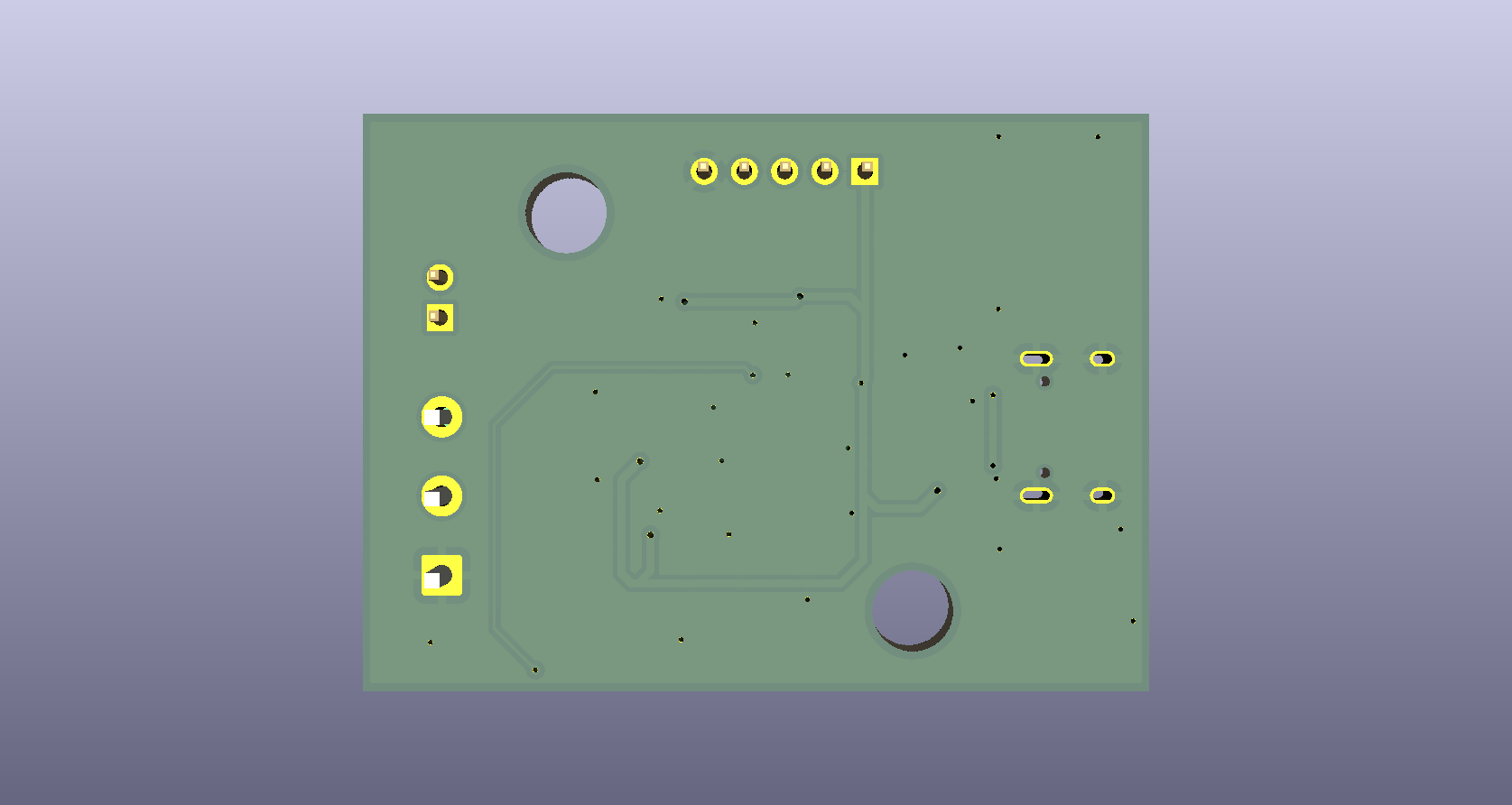

Back View

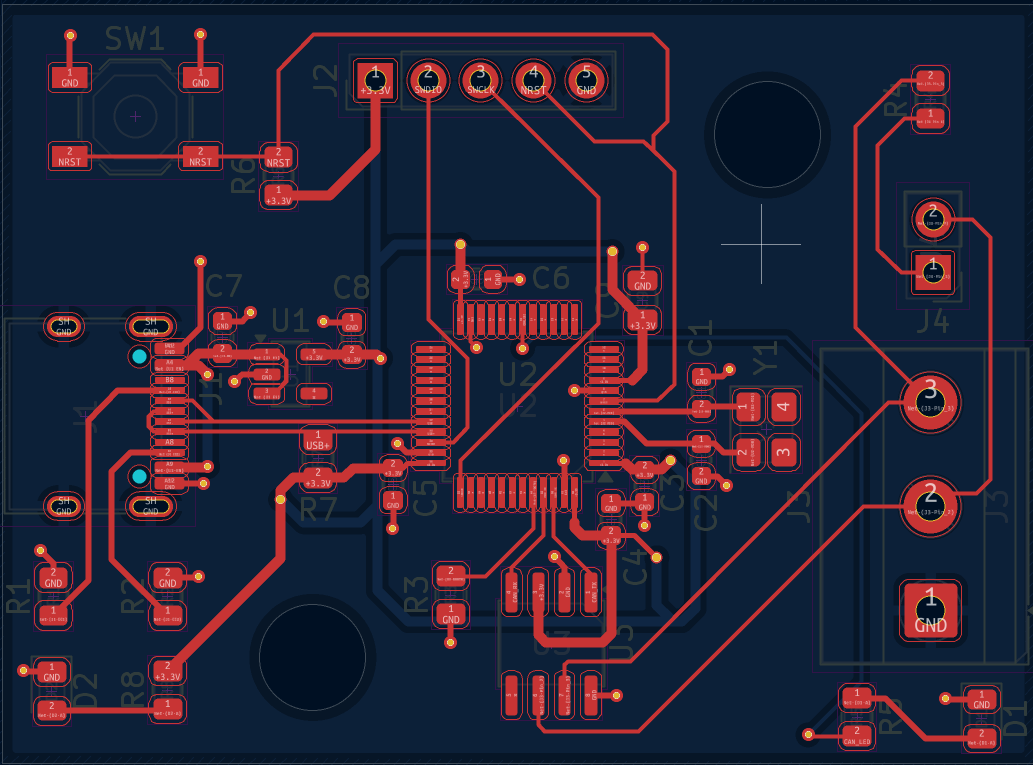

PCB Layout

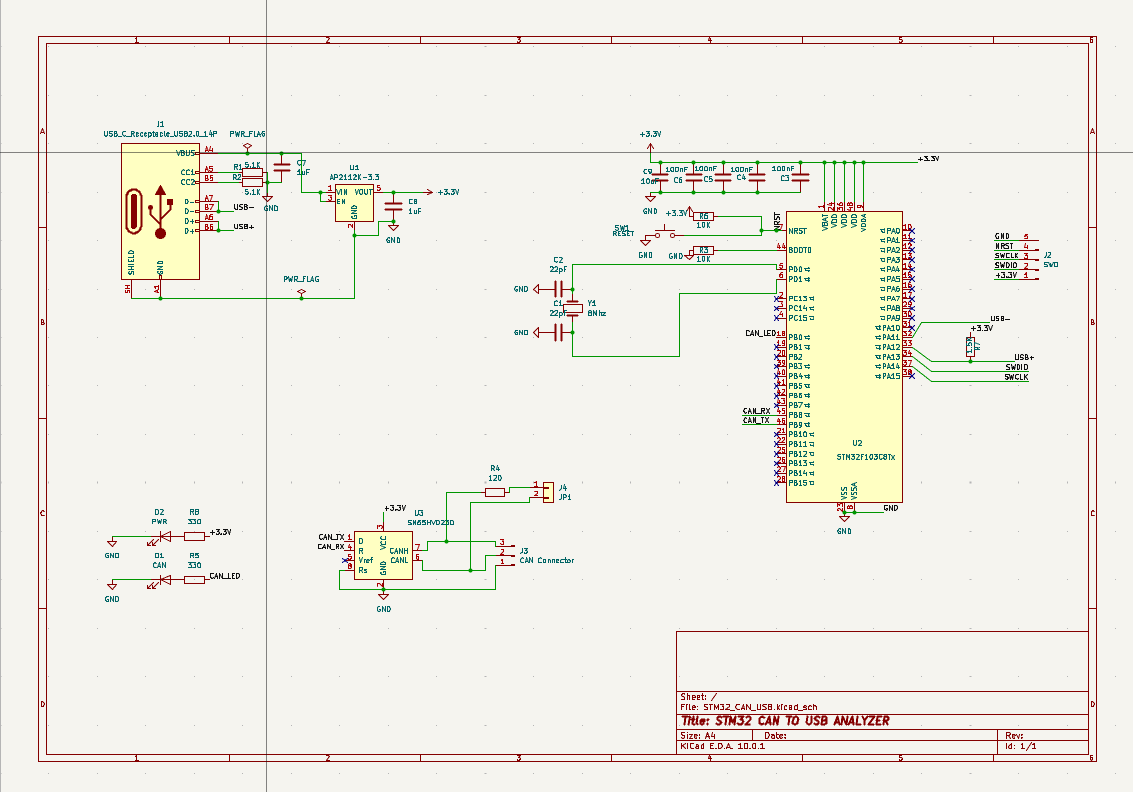

Schematic

Main Components
| Component | Description |
|---|---|
| STM32F103CBT6 | Main Microcontroller |
| SN65HVD230 | CAN Transceiver |
| AP2112K-3.3 | 3.3V LDO Regulator |
| USB Type-C Connector | Power Input |
| 8 MHz Crystal | System Clock Source |
| SWD Header | Programming & Debugging |
| 120Ω Resistor + Jumper | Selectable CAN Termination |
Design Tools
- KiCad 10
- STM32CubeMX (planned)
- STM32CubeIDE (planned)
Repository Structure
.
├── README.md
├── Hardware/
│ ├── STM32_CAN_USB.kicad_sch
│ ├── STM32_CAN_USB.kicad_pcb
│ ├── STM32_CAN_USB.kicad_pro
│ └── STM32_CAN_USB.pdf
│
├── Images/
│ ├── pcb-top.png
│ ├── pcb-3d-front.png
│ ├── pcb-3d-back.png
│ └── schematic.png
│
└── Gerbers/
Project Scope
This project was created to practice:
- Schematic capture
- Component selection
- Power distribution design
- USB Type-C integration
- CAN transceiver integration
- STM32 hardware design
- PCB layout and routing
- Manufacturing file generation
