MacroMedia(HackPad)

Introduction

Hello viewers this project was created by watching and learning how to make a macropad by Hackpad , An event organised by Hackclub. With the teachings i created MacroMedia which controls all your media with just one click, based on XIAO RP2040 MCU. Enjoy :)

Extra Stuff

Gratitude

• Thanks to Hackclub and Hackpad for making me do this brilliant project, More coming :).
• Thanks to my potato for helping me till the end.
• Thanks to myself for completing the project and not getting distracted with another project.
• And Thank you for Reading?

Challenges

Never thought i would rage quite while i'm building something interesting, my potato(Yeah that's the name of my laptop) was like a heater when i was using CAD Software, i literally tried 5 software checking which worked the smoothest and none worked then shifted too browser based onshape tool which at the end atleast worked properly. Time to change my potato 😂

---

Inner-Workings

Specifications

BOM

• 1x XIAO RP2040
• 1x 0.91 inch OLED displays
• 8x Through-hole 1N4148 Diodes
• 8x Blank DSA keycaps
• 1x EC11 Rotary encoders
• 8x MX-Style switches
• 4x M3x16 Bolt
• 4x M3 Heatset

Others

• KMK Firmware
• Plate.stl
• Body.stl

---

Images

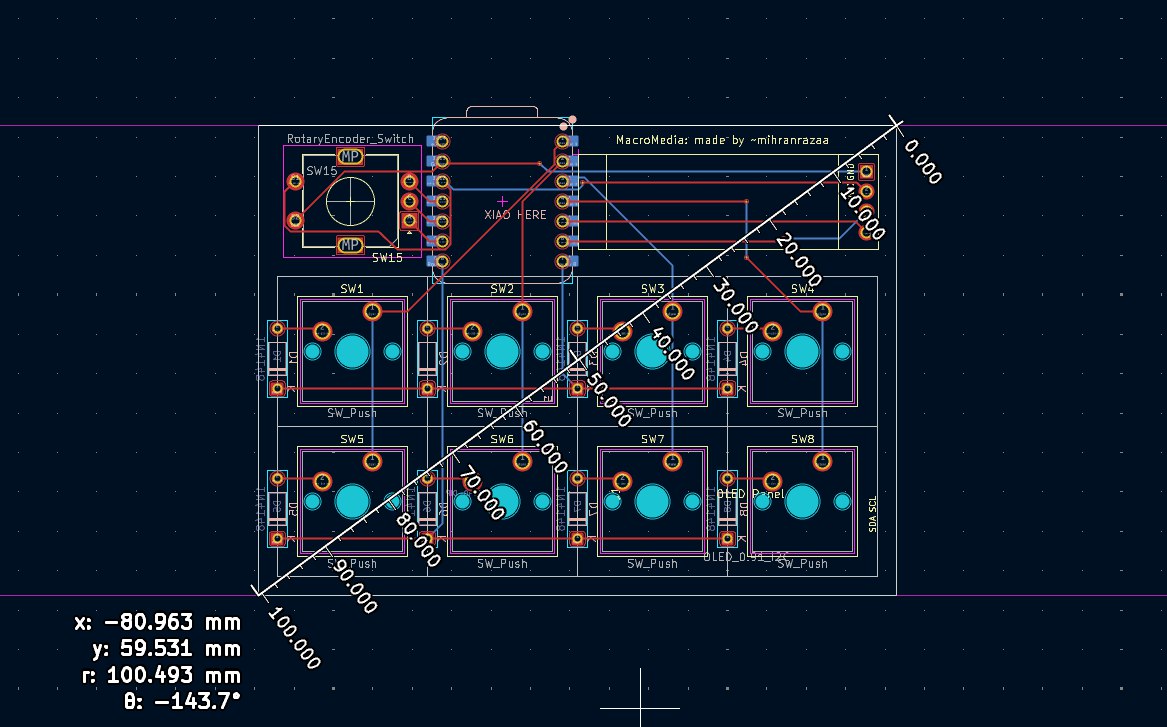

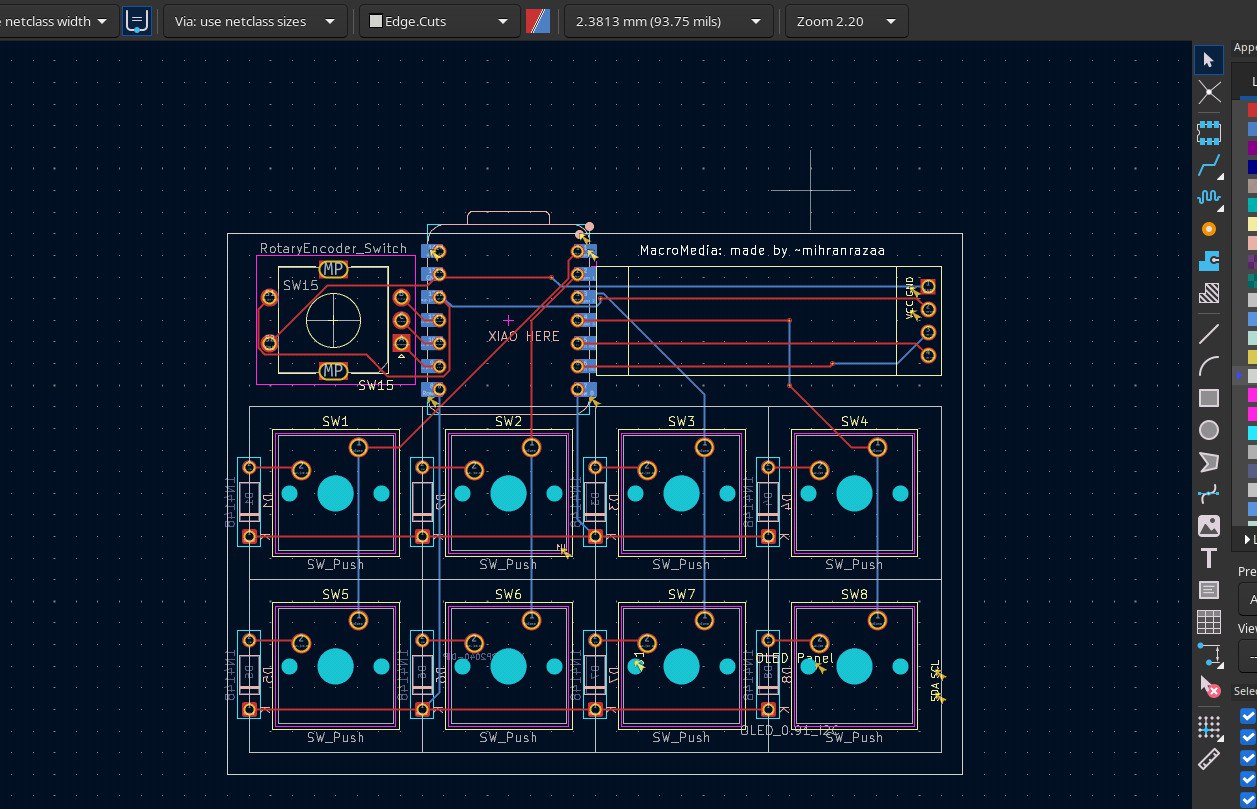

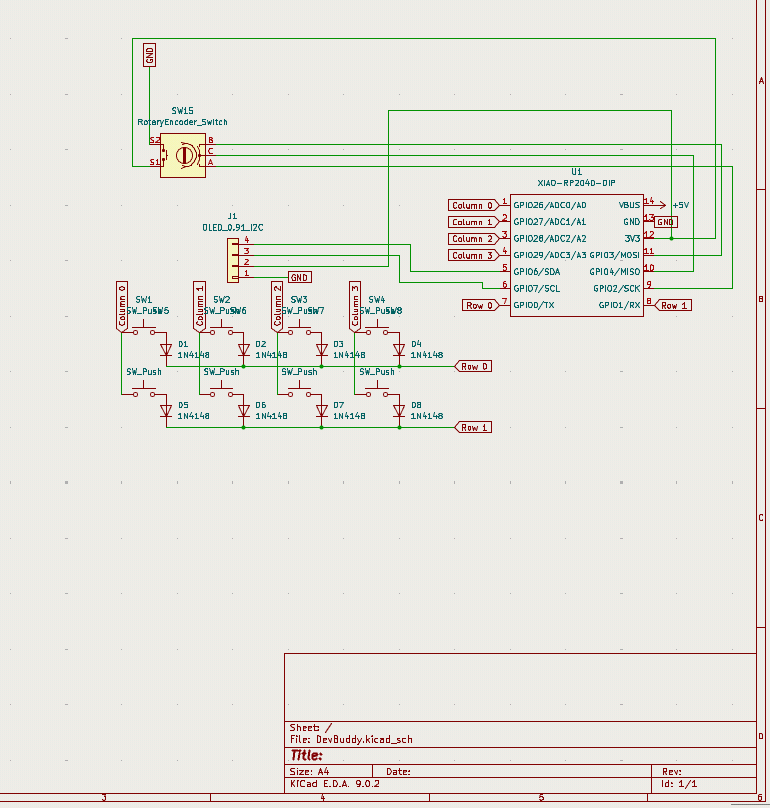

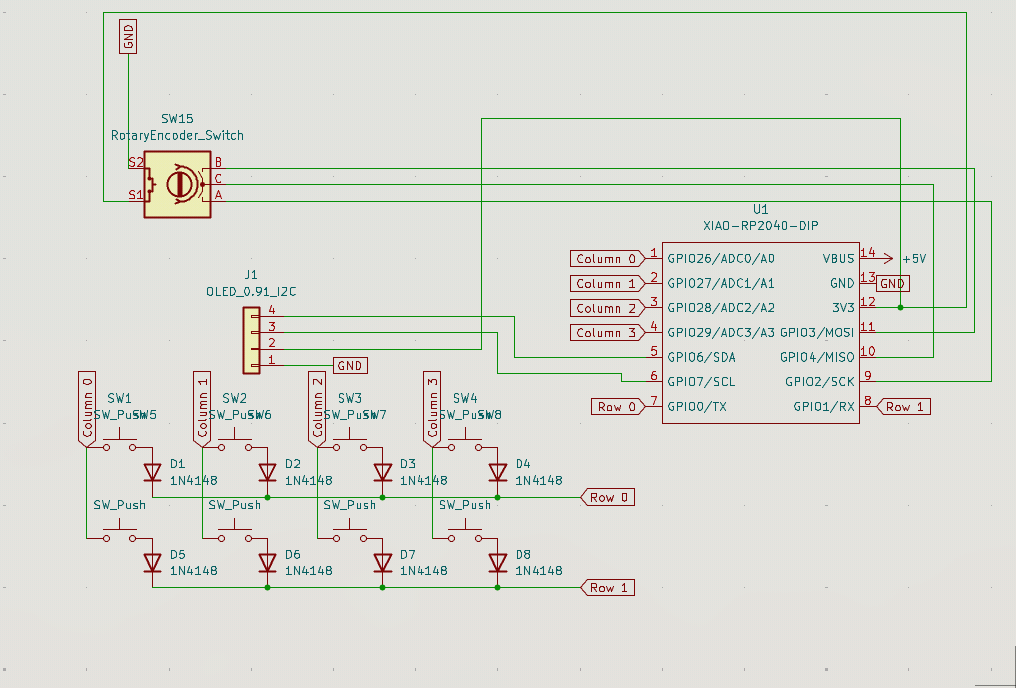

Schematics and PCB Design

---

---

3D Printed Case

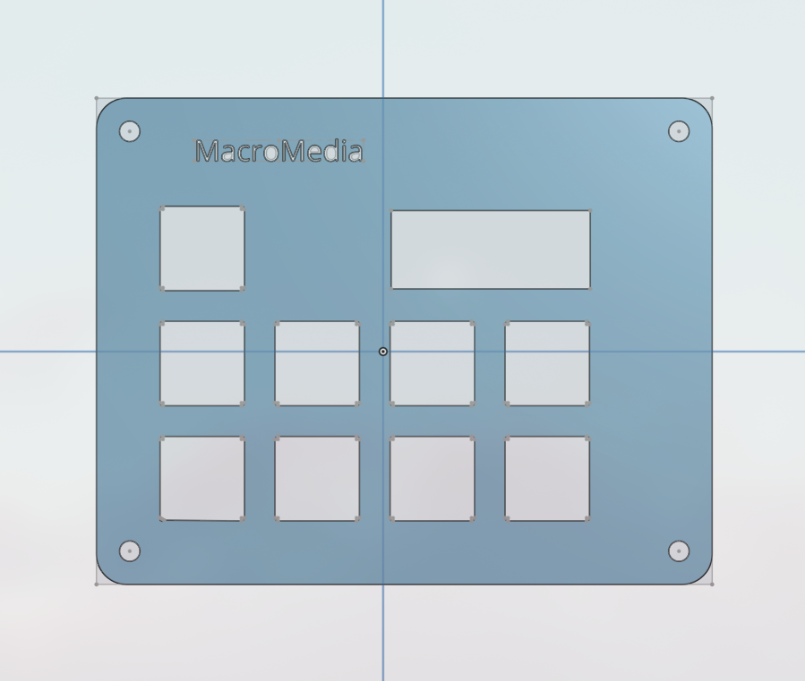

Plate:

---

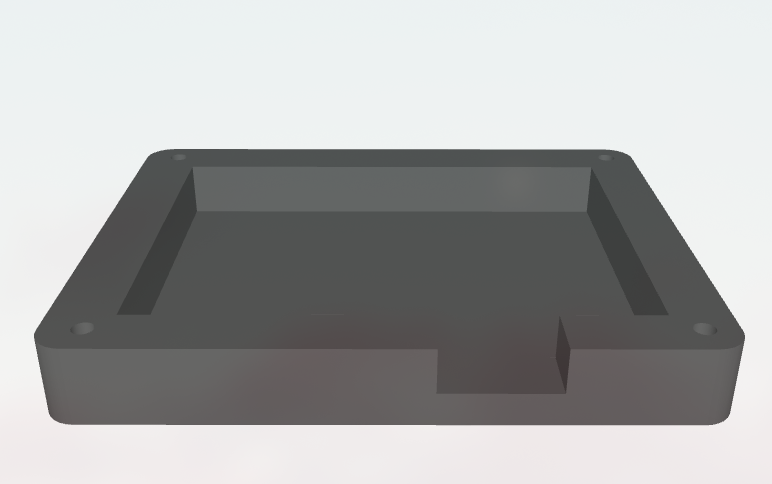

Body :

---

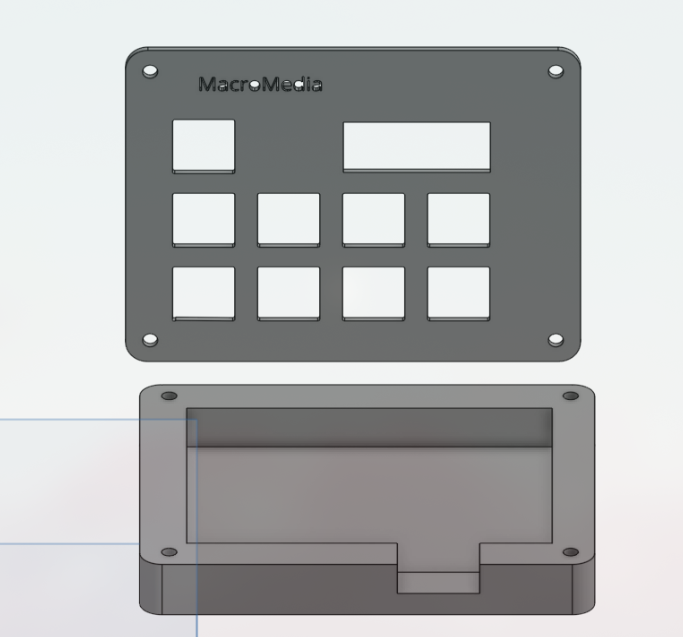

Both : I wasn't able to merge them together my potato laptop was already lagging too much and taking away all my time. Hope you understand. Dimensions have been checked. (If need a video of me building this 3D model you ask me, it's quite funny lol. )

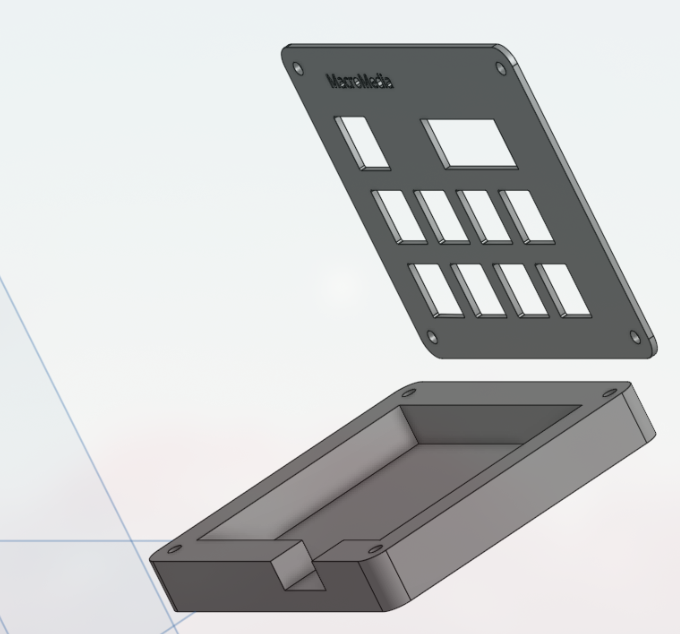

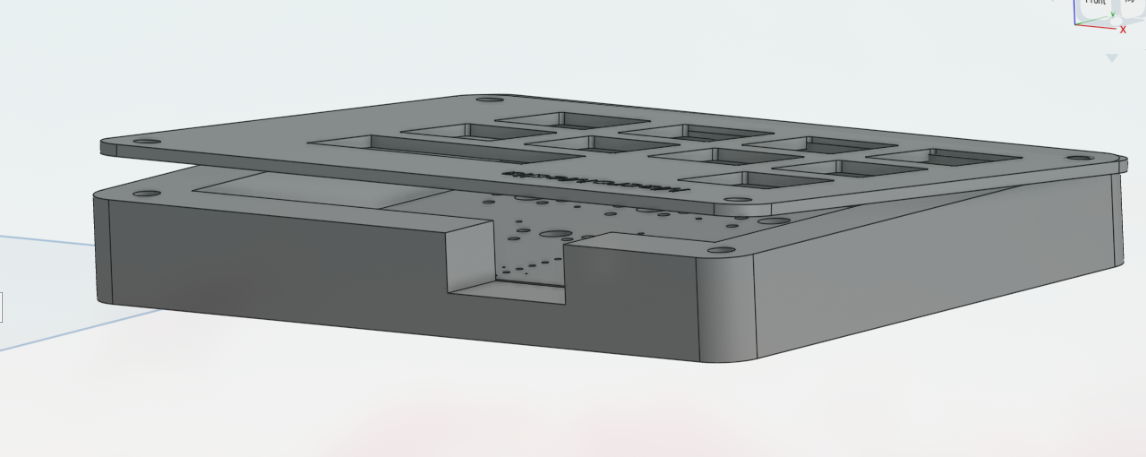

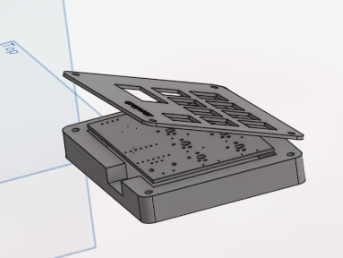

Combined:

(Fixed the issue...)

---

BYEEEEE Check my Blog ~ mihranrazaa
