c7k-keychain
super thin I2C keyboard

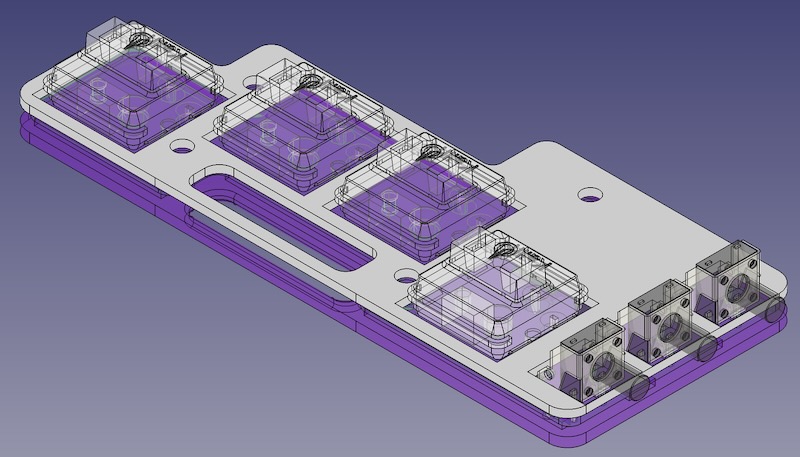

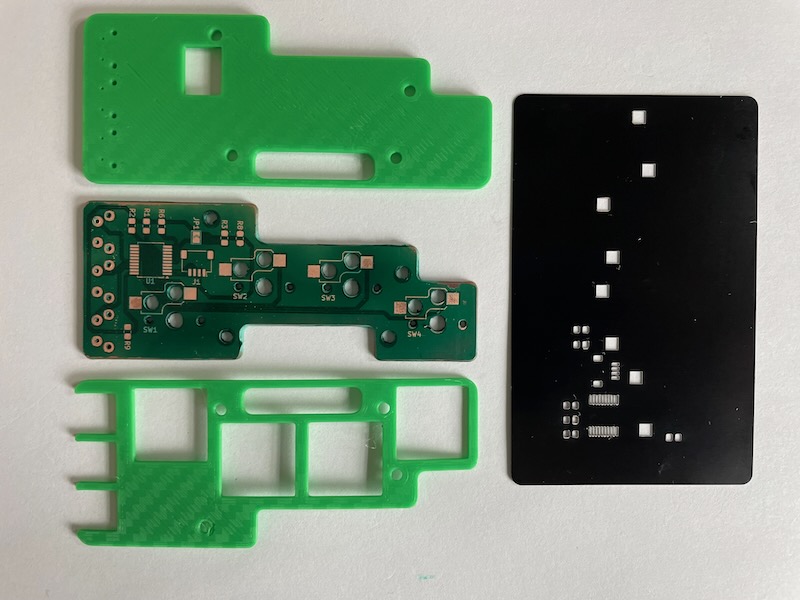

Chording 7 Key - I2C breakout

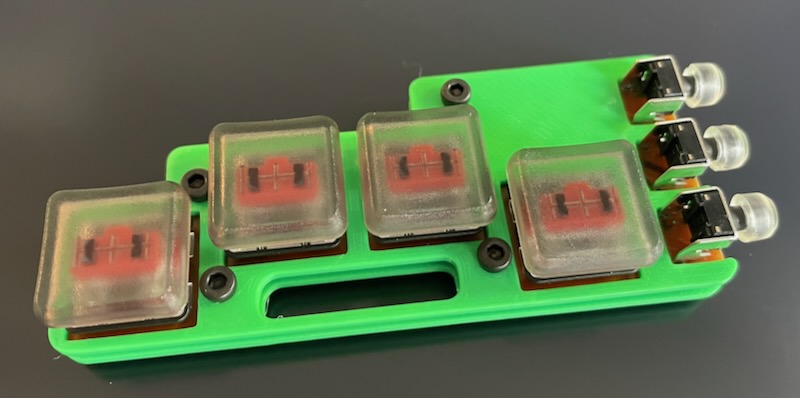

Ultra-Thin wearable one handed keyboard which can be used with a phone, tablet, computer even from a pocket. It is a full size keybaord in seven buttons.
I2C interface means easy connectivity to modern micrcontrollers and single board computers. This allows maximum flexibility for direct to controller, HID USB or HID BLE interfacing.
center thumb or no modifier :: alpha
| Key | Pinky | Ring | Middle | Index | Thumb |
|-----|-------|------|--------|-------|-------|
| a | x | | | | |
| b | x | | | | oxo |
| c | x | | | x | |
| d | | x | x | x | |
| e | | | x | | |
| f | | x | x | | oxo |
| g | | | x | | oxo |
| h | | x | | | oxo |
| i | | | x | | |
| j | | x | x | x | oxo |
| k | x | | x | | oxo |
| l | x | | x | | |
| m | | | | x | oxo |
| n | | x | x | | |
| o | | x | | x | |
| p | x | x | x | | |
| q | x | x | x | x | oxo |
| r | | | x | x | |
| s | x | | | | |
| t | x | x | | | |
| u | x | x | x | x | |
| v | x | x | | | oxo |
| w | | x | | x | oxo |
| x | x | | | x | oxo |
| y | | | x | x | oxo |
| z | x | x | x | | oxo |
| BCK | x | | x | x | |
| SPC | x | x | | x | |
| DEL | x | | x | x | oxo |
outside thumb modifier :: numeric
| Key | Pinky | Ring | Middle | Index | Thumb |
|-------|-------|------|--------|-------|-------|
| ONE | | | | x | oox |
| TWO | | | x | | oox |
| THREE | | x | | | oox |
| FOUR | x | | | | oox |
| FIVE | | | x | x | oox |
| SIX | | x | x | | oox |
| SEVEN | x | x | | | oox |
| EIGHT | | x | | x | oox |
| NINE | x | | x | | oox |
| ZERO | | x | x | x | oox |
| -> | x | | x | x | oox |
| <- | x | x | | x | oox |
| ^^ | x | | | x | oox |
| vv | x | x | x | x | oox |
| ESC | x | x | x | | oox |
inside thumb :: white
| Key | Pinky | Ring | Middle | Index | Thumb |
|----------------|-------|------|--------|-------|-------|
| space | | | | x | xoo |
| tab | | | x | | xoo |
| period | | x | | | xoo |
| minus | x | | | | xoo |
| comma | | x | | x | xoo |
| enter | | | x | x | xoo |
| backspace | | x | x | | xoo |
| backslash | x | x | | x | xoo |
| forward_slash | x | x | | | xoo |
| grave_accent | x | x | x | x | xoo |
| minus | x | | | | xoo |
| equals | | x | | x | xoo |
| left_bracket | x | | x | | xoo |
| right_bracket | x | | | x | xoo |
| semicolon | x | x | | x | xoo |
| quote | x | | x | x | xoo |
inside and center thumb :: modifier layer
| Action | Pinky | Ring | Middle | Index | Thumb |
|-----------------|:-----:|:----:|:------:|:-----:|:-----:|
| Toggle Mouse | | | | | oxx |
| Move Up | X | | | | |
| Move Right | | X | | | |
| Move Left | | | X | | |
| Move Down | | | | X | |
| Left Click | X | X | | | |
| Right Click | | | X | X | |
| Middle Click | | X | X | | |
| Back (X1) | X | | | | X |
| Forward (X2) | | | | X | X |
inside and outer thumb :: mouse layer
| Action | Pinky | Ring | Middle | Index | Thumb |
|--------------|-------|------|--------|-------|-------|
| Toggle Mouse | | | | | oxx |
| Move Up | x | | | | |
| Move Right | | x | | | |
| Move Left | | | x | | |
| Move Down | | | | x | |
