murphysdr AD9364_IO view
Description

Imported from GitHub: MillePoels/MurPhySDR · commit 2fa5055 · license GPL-3.0

Description

MurPhySDR is an open source software-defined radio platform based on the AD9364 transceiver IC.

README

MurPhySDR

MurPhySDR is an open source software-defined radio platform based on the AD9364 transceiver IC.

  • AD9364 1X1 transceiver IC covering 70MHz-6GHz
  • XC7A50T-2FTG256I Xilinx Artix-7 FPGA
  • FT601Q USB 3.0 interface IC
  • JTAG connector
  • MX25L25645GZNI-08G 256Mb flash
  • ADL5611 +22dB TX gain block

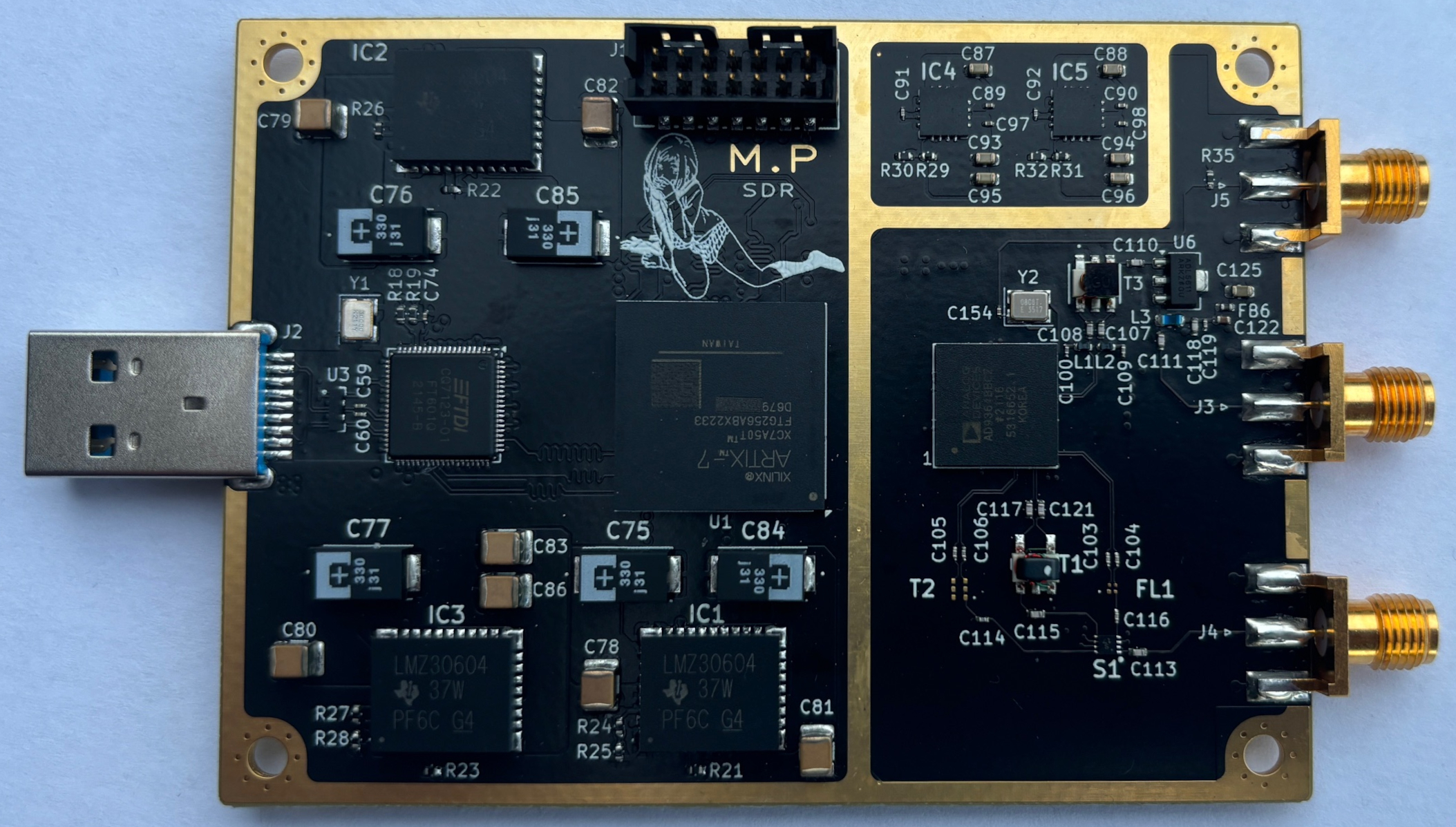

MurPhySDR board

Contents

The directory structure is as follows:

    hardware/
        gerber-files/   - Production gerber files
        kicad/          - Kicad project directory

[!NOTE] There are currently no plans to finish the software.

Motivation

This project started out as an engineering assignment and isn't meant to be groundbreaking or extremely innovative. Rather, it serves as a practical way for me to learn hardware development. The assignment required us to write a thesis describing our endeavor, so I included it here. Keep in mind that I'm Belgian so it's written in Dutch.
