Description

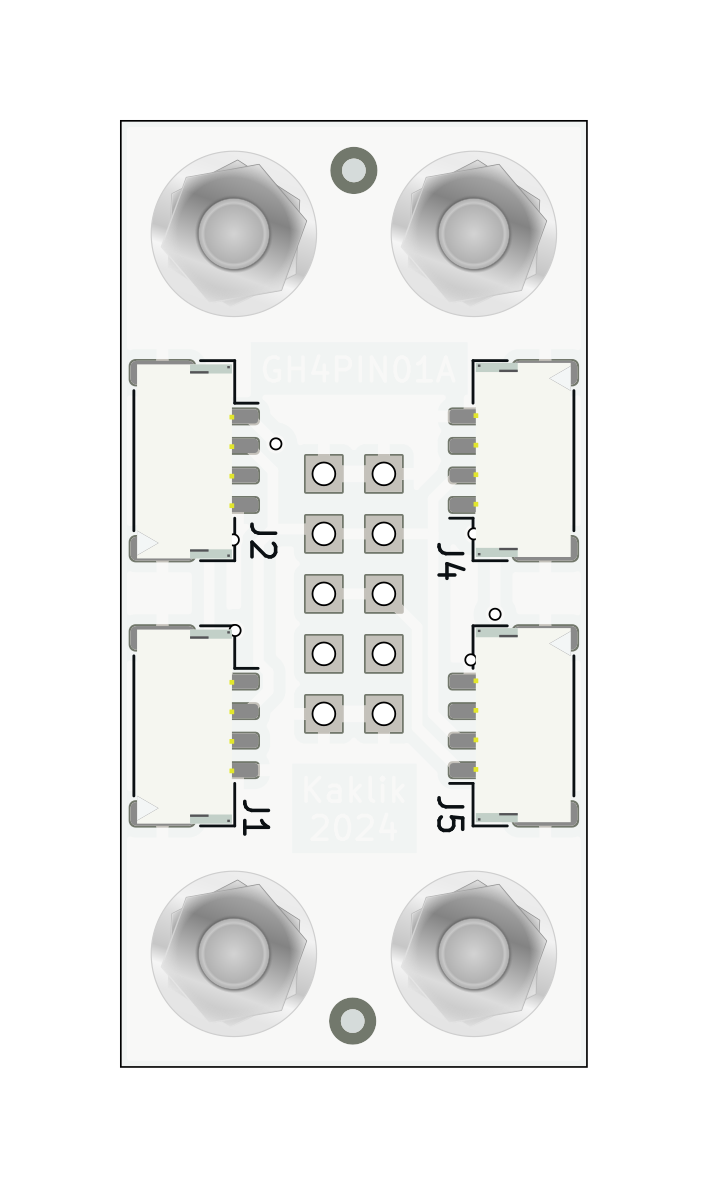

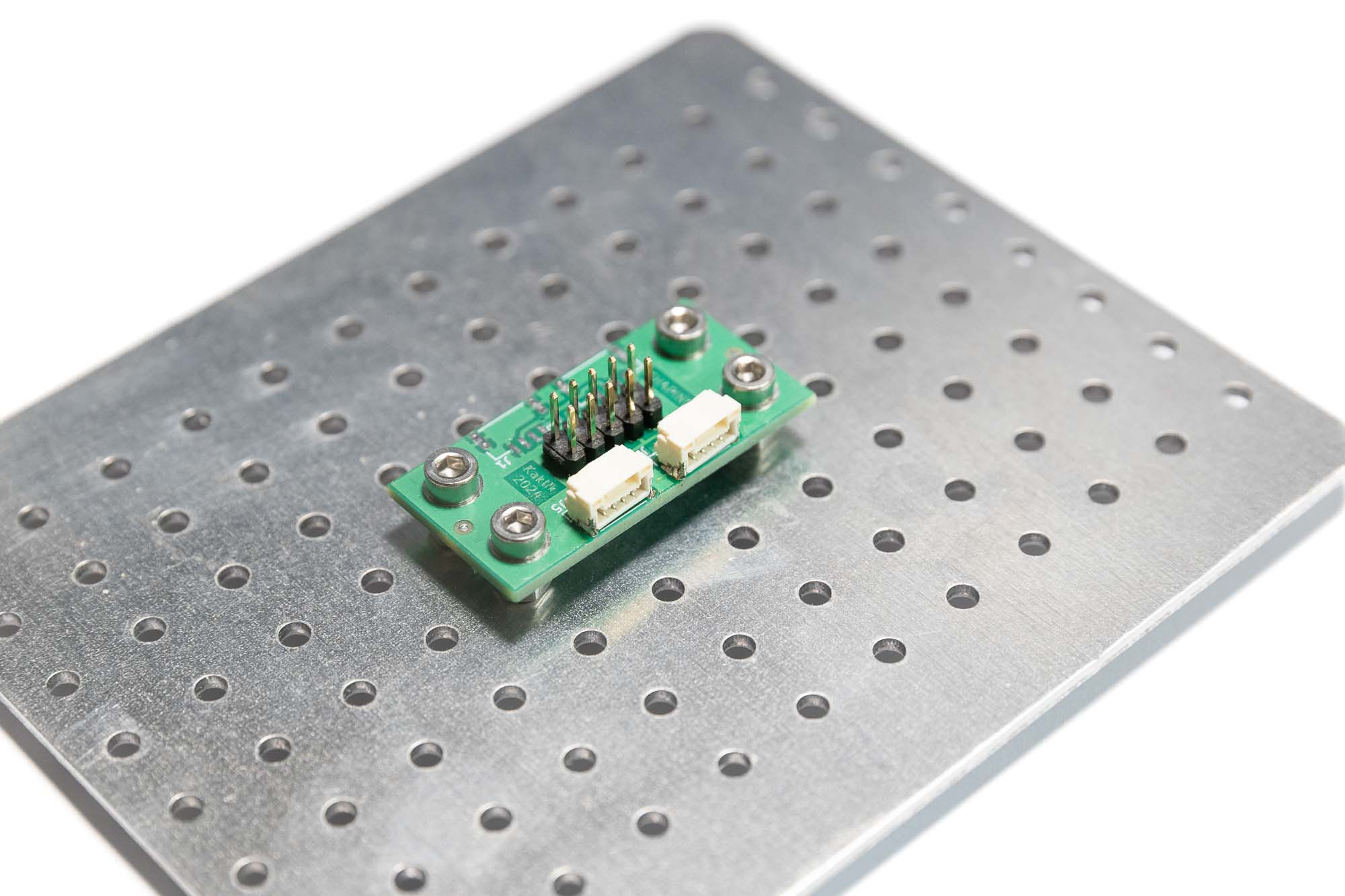

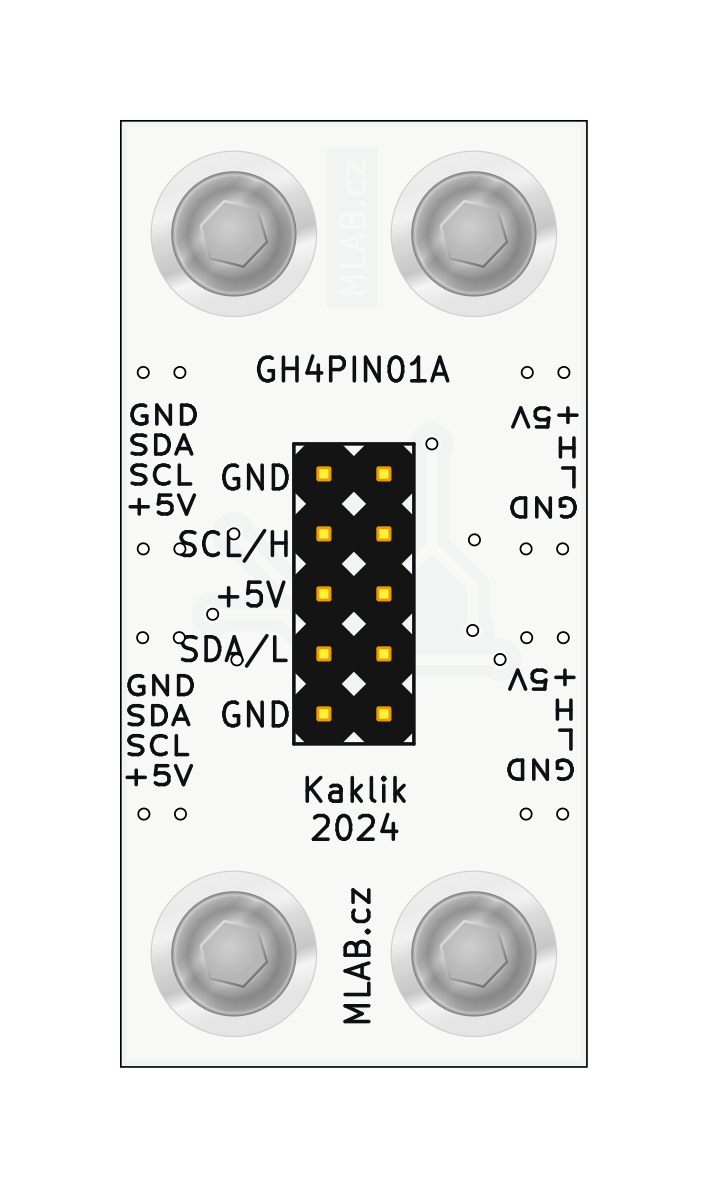

This 4-pin module connects JST-GH connectors, often used in Pixhawk drones, to standard pin headers, making it easier to build custom electronics and use I2C or CAN bus communication.

publicGPL-3.0

gh4pin01

@mlab-modules

This 4-pin module connects JST-GH connectors, often used in Pixhawk drones, to standard pin headers, making it easier to build custom electronics and use I2C or CAN bus communication.

Tags

cani2ci2c-busi2c-devicei2c-sensorsjstjst-ghkicadconnectormounting hole
