Oscar Varney and Jotham Gates, 2024

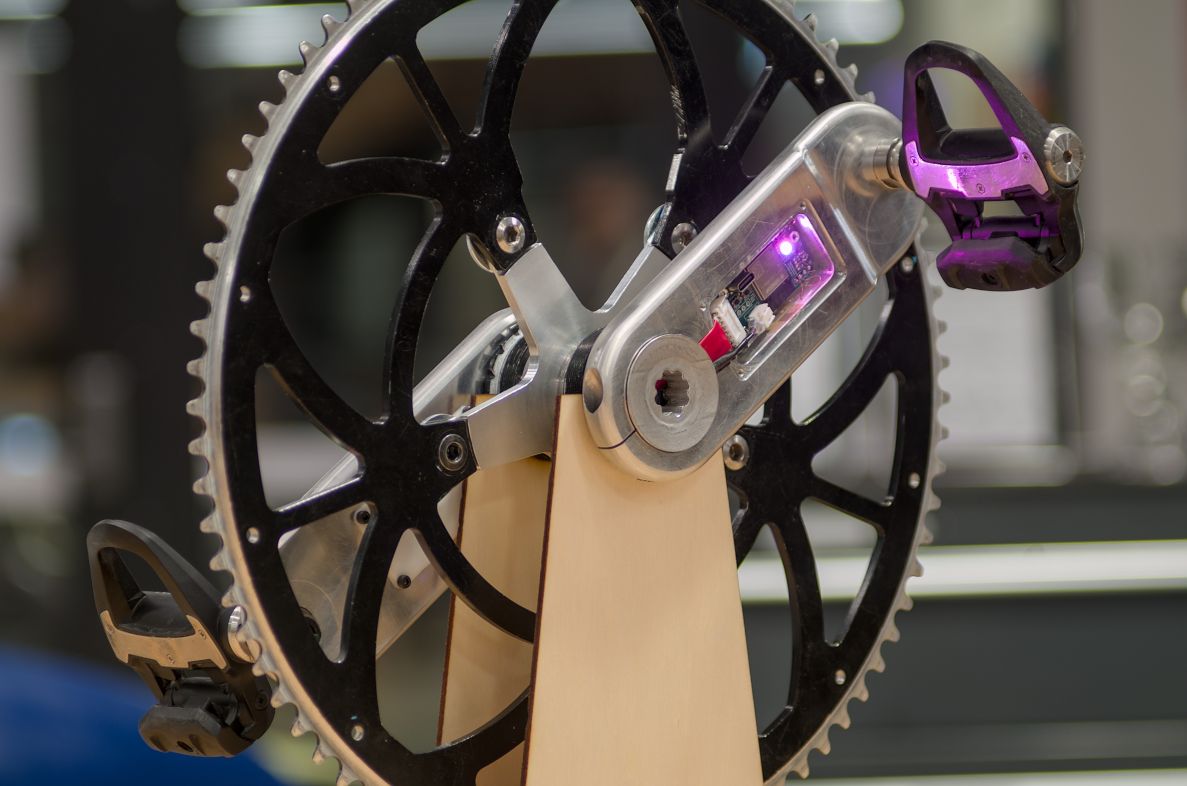

This is the code repository for a Final Year Project (FYP) to develop a crankset and power meter for Human Powered Vehicles (HPVs).
The schematic and PCB layout were completed using . The design files are in the folder.
The firmware is written to use the Arduino environment of Platform IO and is located in the power-meter-code directory.
Install the following libraries, either by using the Arduino library manager or going to their GitHub repository and cloning them.
A bash script has been written to update the dates on all modified or staged files (not including untracked files). To perform this operation, run:
./tools/update_date.sh
Another script is included to update the version info on all files and definitions for the code. The files and elements updated include:
As an example:
./tools/update_version.sh 1.2.3
This needs to be modified to work with the platform IO structure. Copy the
pre-commitfile into.git/hooks/pre-commit. This will check the date of code files and make sure they are up to date.
Documentation can be automatically generated using Doxygen by running doxygen from the root folder of the repository. You might need to install doxygen and graphviz first. The output will be placed in the docs folder. GitHub actions may be set up later down the track to automatically generate and deploy to GitHub pages on commit- however that would require a public repository and documentation.
To generate a massive appendix for the report, run ./tools/generate_refman.sh
The output file will be refman.pdf.
Scripts for testing the board hardware and easing development of certain sections can be found in the scripts-testing directory. This includes python scripts used to log data over MQTT and plot it.
