First of all, I would like to thank the original author for his work. I wanted to make this DevKit as soon as I saw it. However, there were some issues that I thought needed fixing. For example, some components were unavailable or not up-to-date. Here is a full list of my updates that all together make revision EC:

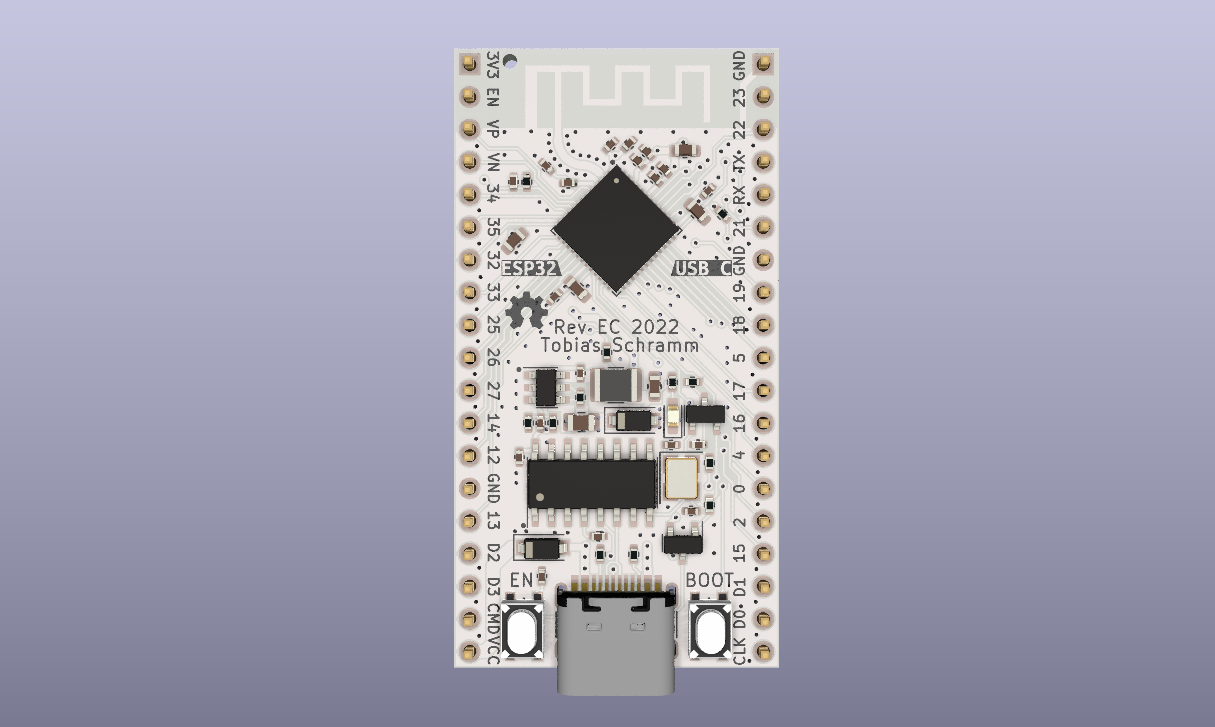

This PCB is a USB Type C enabled ESP32 development board. It is pin-compatible with the ESP32 Devkit C but sports a slightly decreased width to fit on a standard breadboard.
Furthermore this board is optimized for JLCPCB assembly, a Chinese SMT PCB assembly service. All components on this board, except the USB Type C connector, the push buttons and the pin headers can be assembled by them for around ~$8 including PCB manufacturing and components.
There is an to help you assemble the board.
Assuming you are using JLCPCB SMT assembly you will need to populate just the following parts by hand:
| Reference | Description | LCSC |
|---|---|---|
| J1 | USB Type C connector | C165948 |
| SW1, SW2 | RESET/BOOT push button | C589212 |
| J2, J3 | Pin headers | C2337 |
