LED Board - PCB

README

LED Board - PCB

v1 January 2024

This project works with

• LED Board - Firmware minimal
• LED Board - Desktop minimal
• LED Board - Firmware full
• LED Board - Desktop full

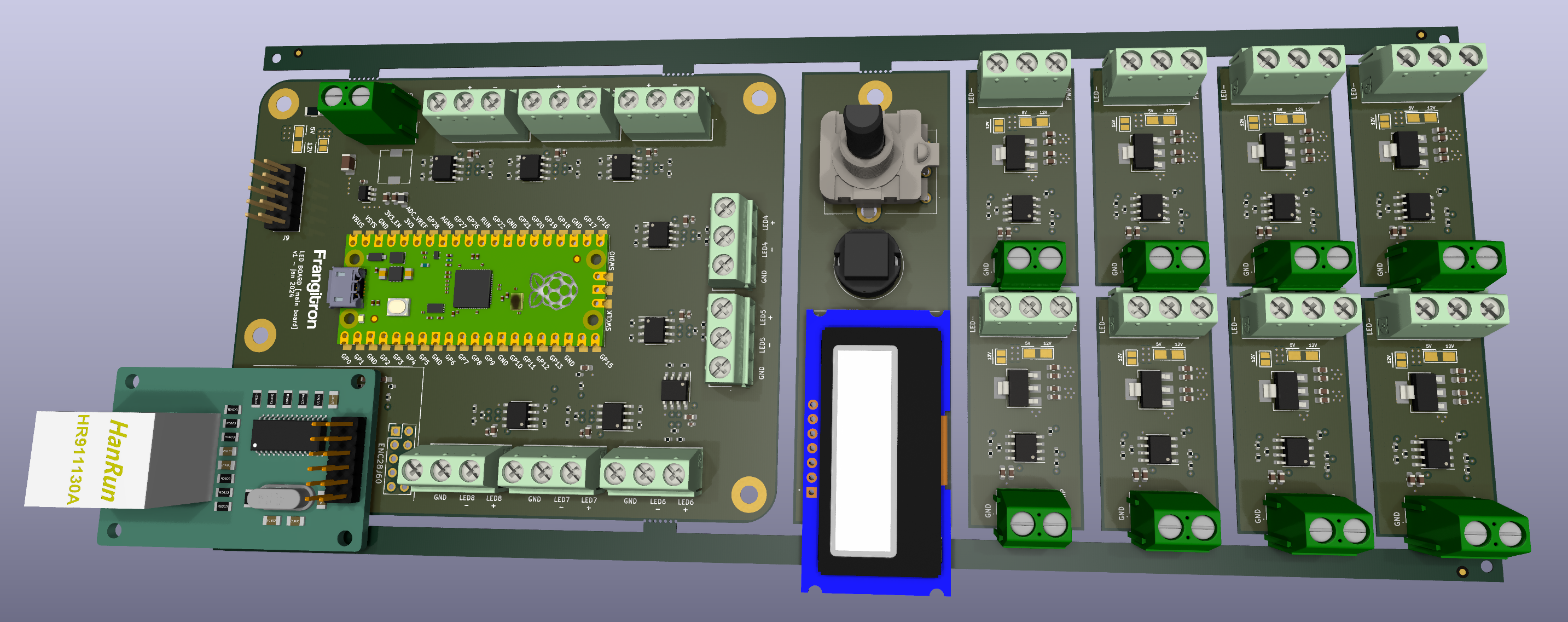

Main board

ArtNet to LED strips (x8 RS485 transmitters)

• Raspberry Pi Pico

• ENC28J60 SPI module

• Front panel for screen, rotary encoder, push button

Receiver (x8)

RS485 to LED strip

Schematics

Gerbers

• Edge Cuts

• F Cu

• In1 Cu

• In2 Cu

• B Cu

• F Silkscreen

• B Silkscreen

• F Paste

• B Paste

• F Mask

• B Mask
