README

This is a JTAG programmer for esp targets based on esp-prog redone in Kicad.

The goal of this repo is to enable customization by adding or removing features. Feel welcome to fork the repo and share back your customizations through a pull request.

Features:

  • FT2232H based
  • Esp Jtag programming
  • A separate serial port for debug
  • SN74AH buffers for JTAG IO pins(5V/3V torelant)
  • Rx/Tx status LEDs
  • Autoprogram using RTS and DTS signals

TODO

  • Layout the PCB and route
  • Add LCSC.com BOM column
  • Add digikey BOM column

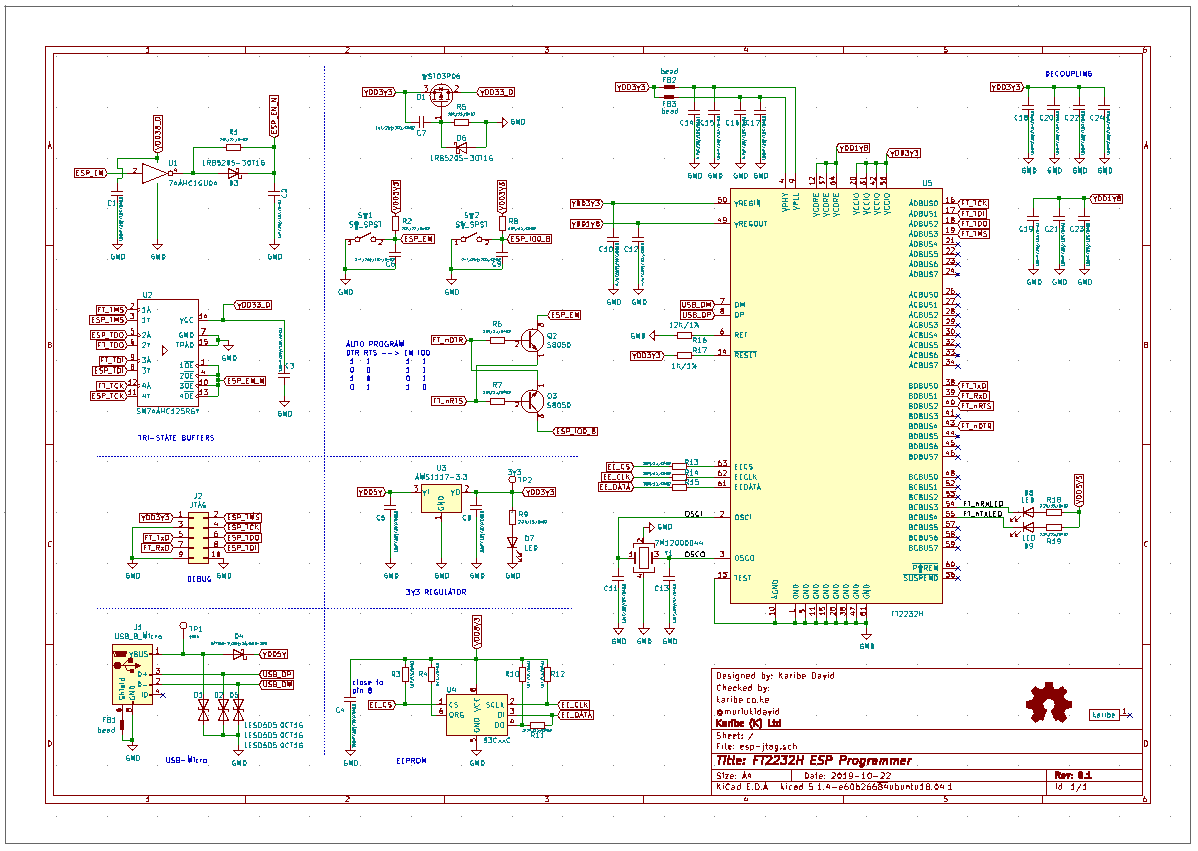

Schematic

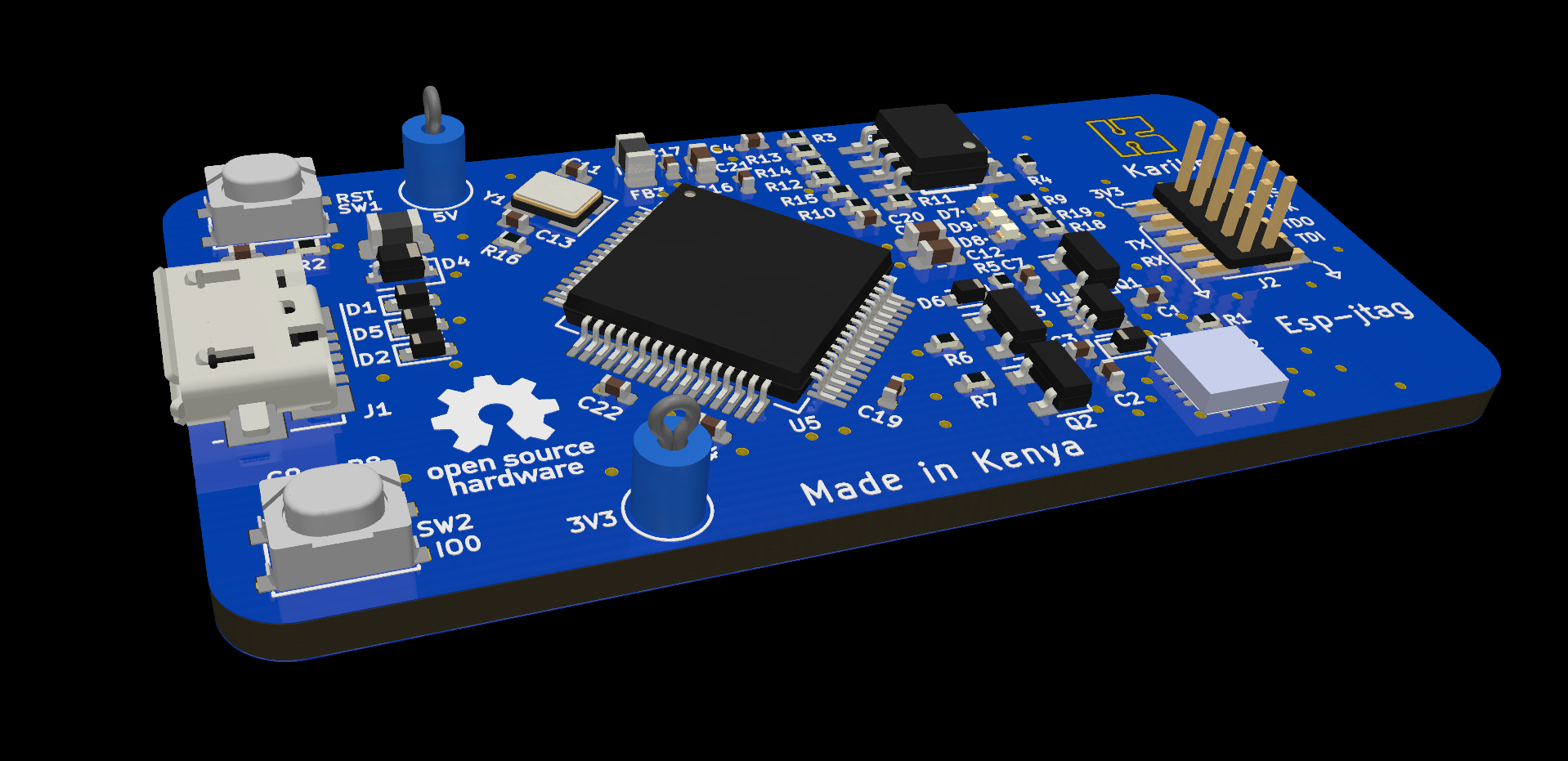

Board 3D Top View

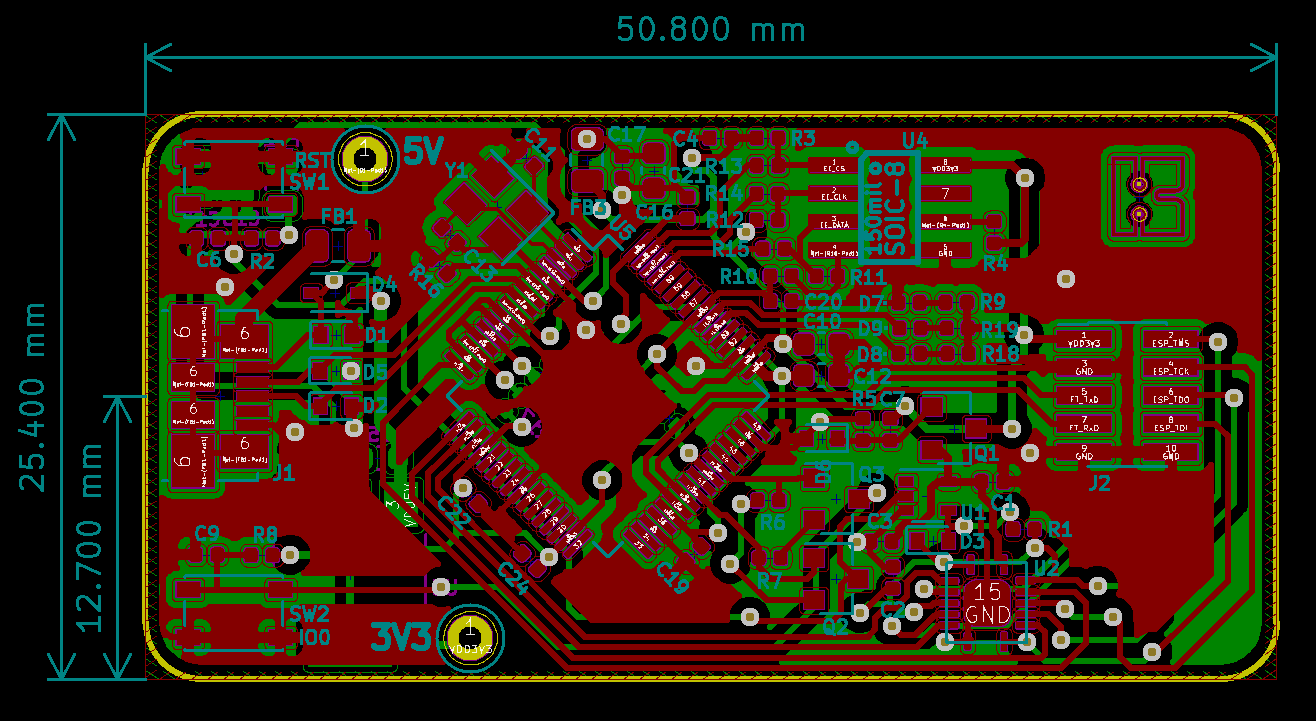

A preview of the on-going PCB layout design

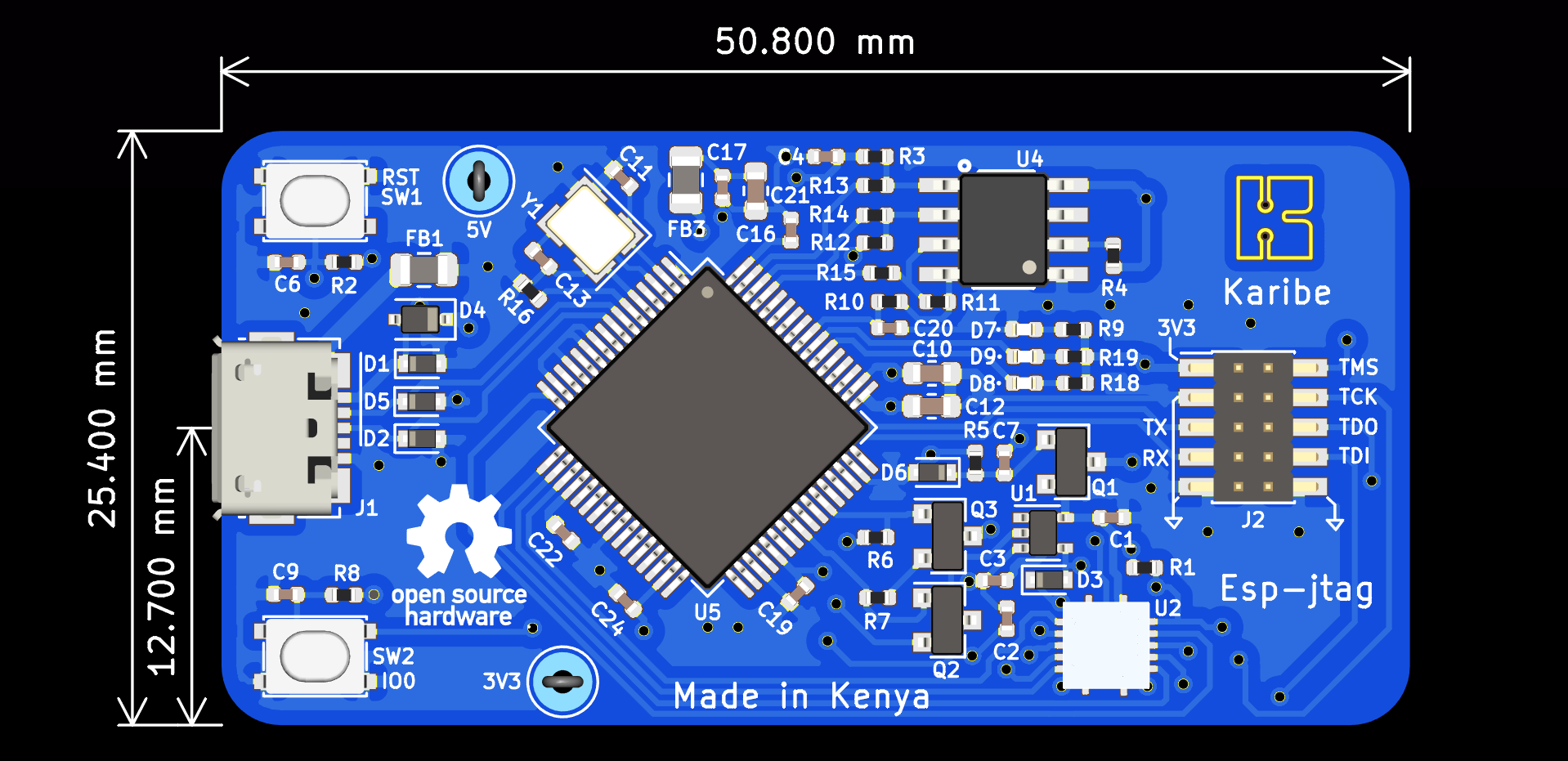

3D TOP view

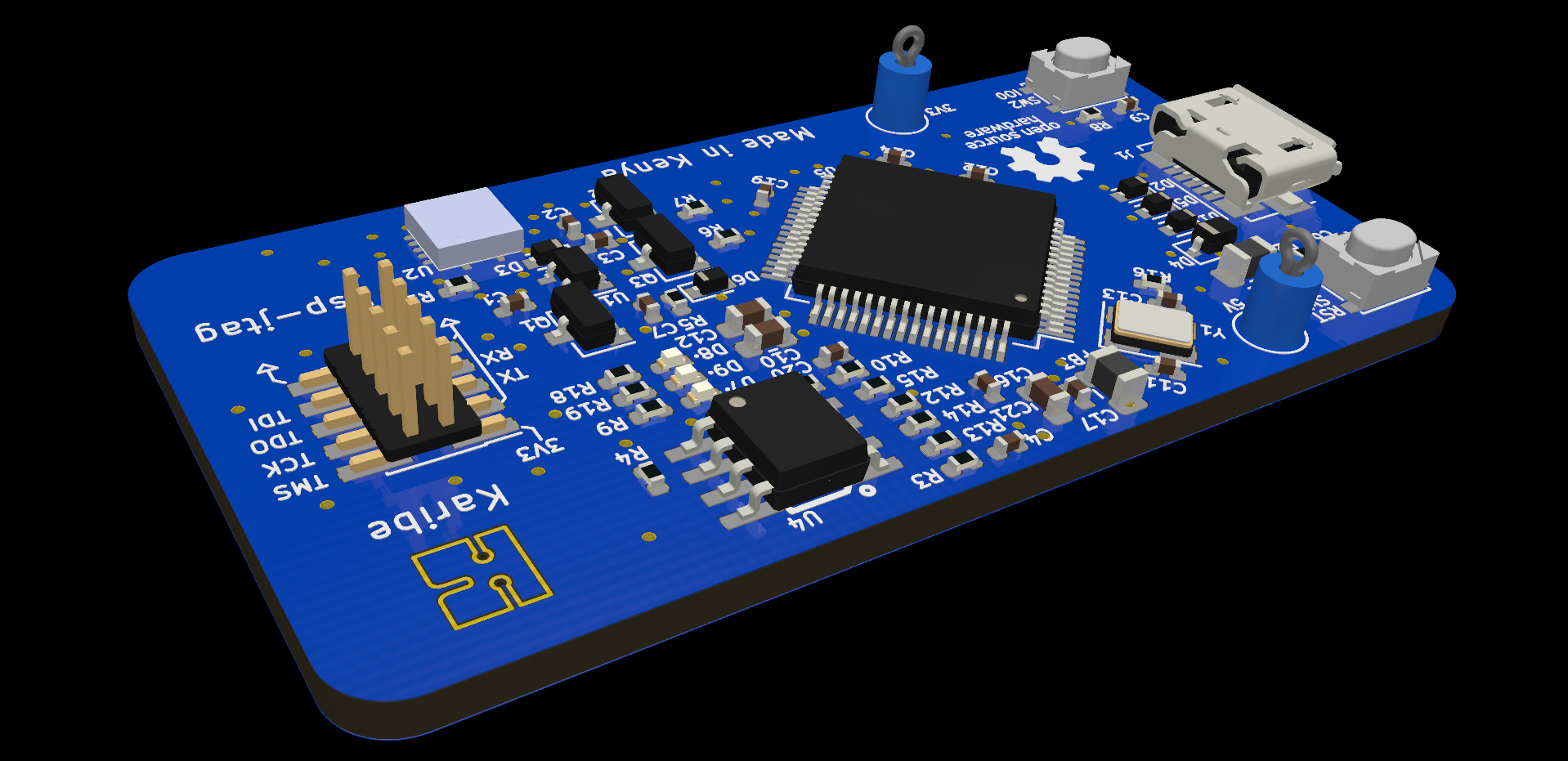

3D ISO view

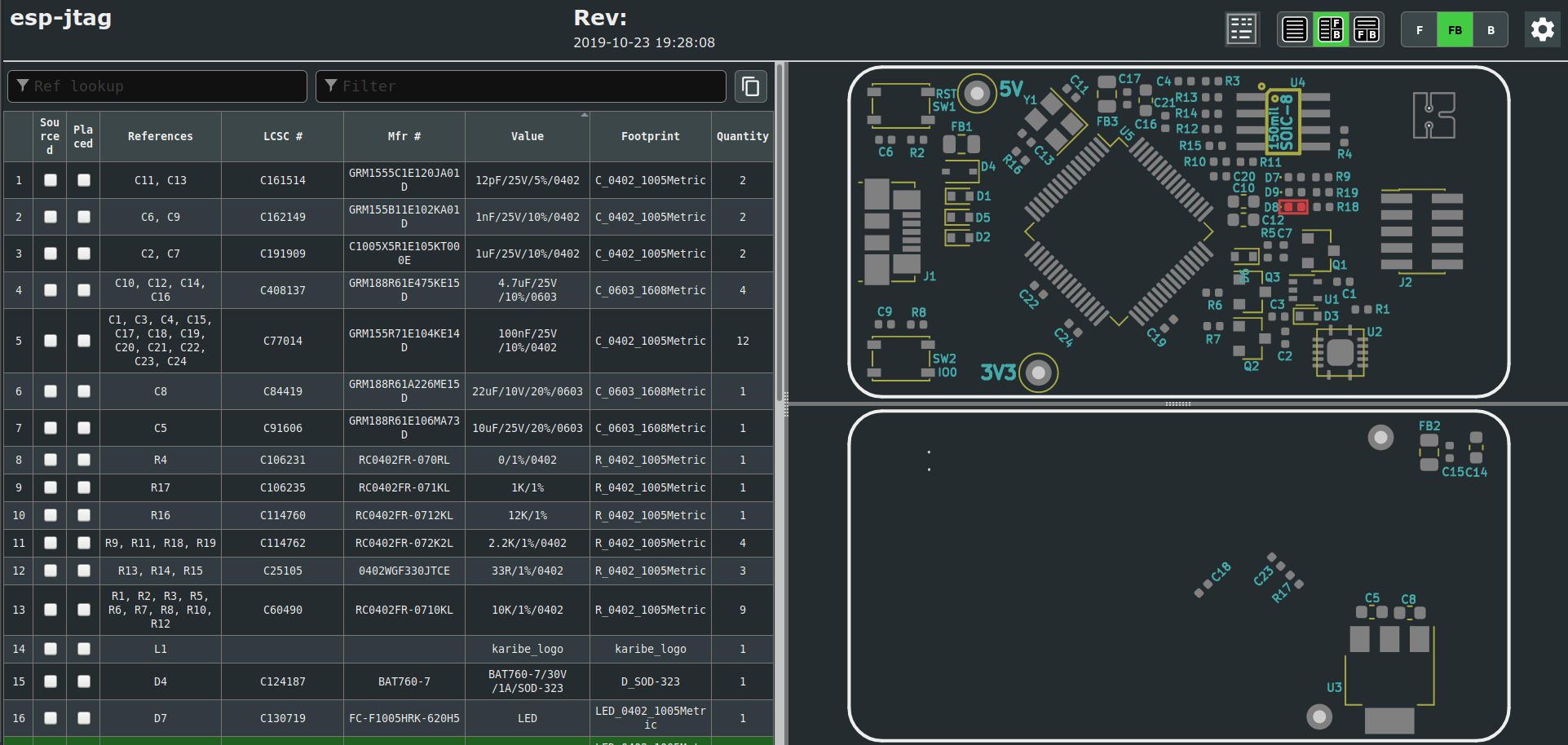

BOM

BOM
