2bit CPU using 74HC series logic IC.

README

2bit-CPU

2bit CPU using 74HC series logic IC.

Overview

This is a 2bit CPU KiCad file. You can make a CPU using the 74HC series logic IC.

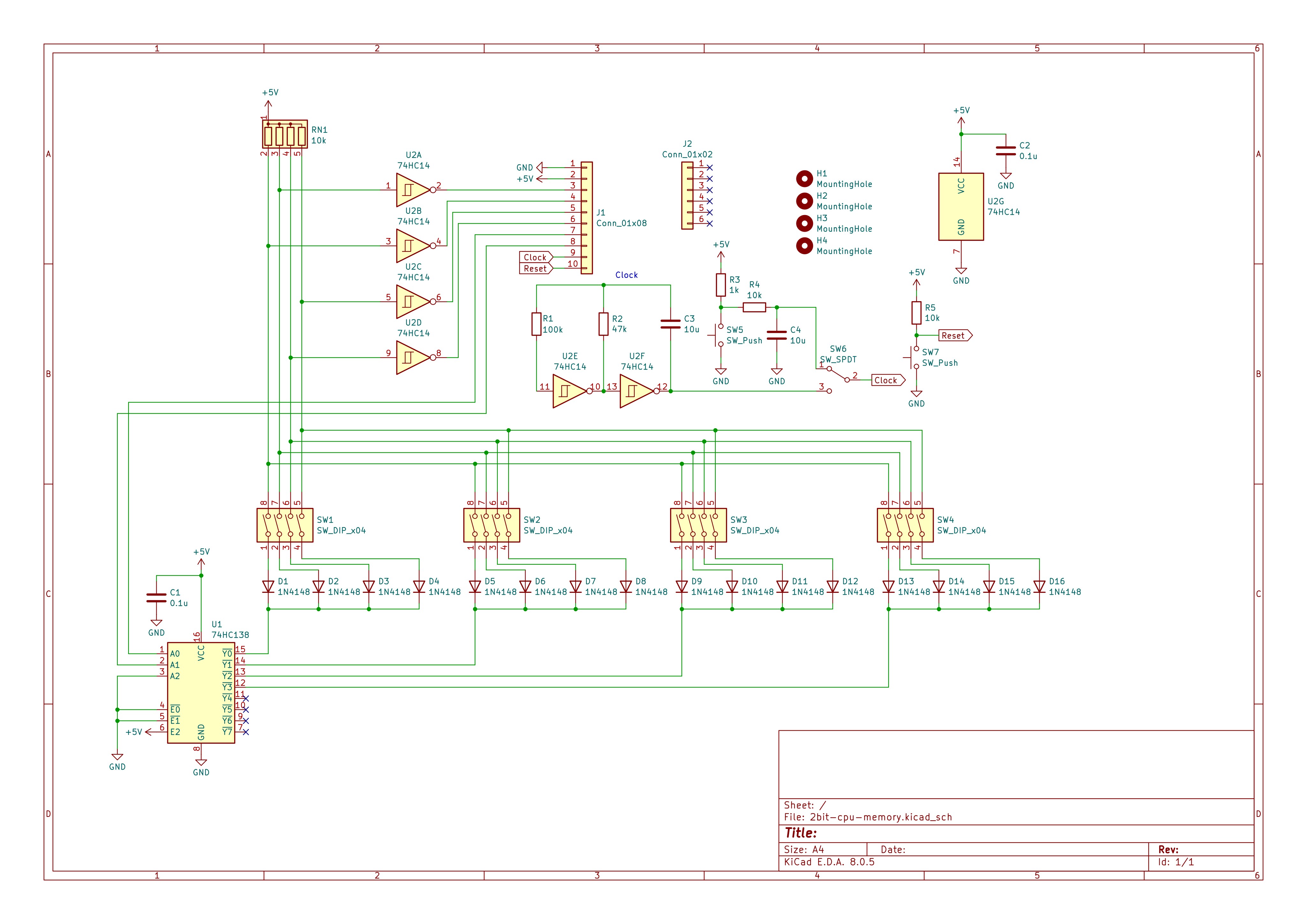

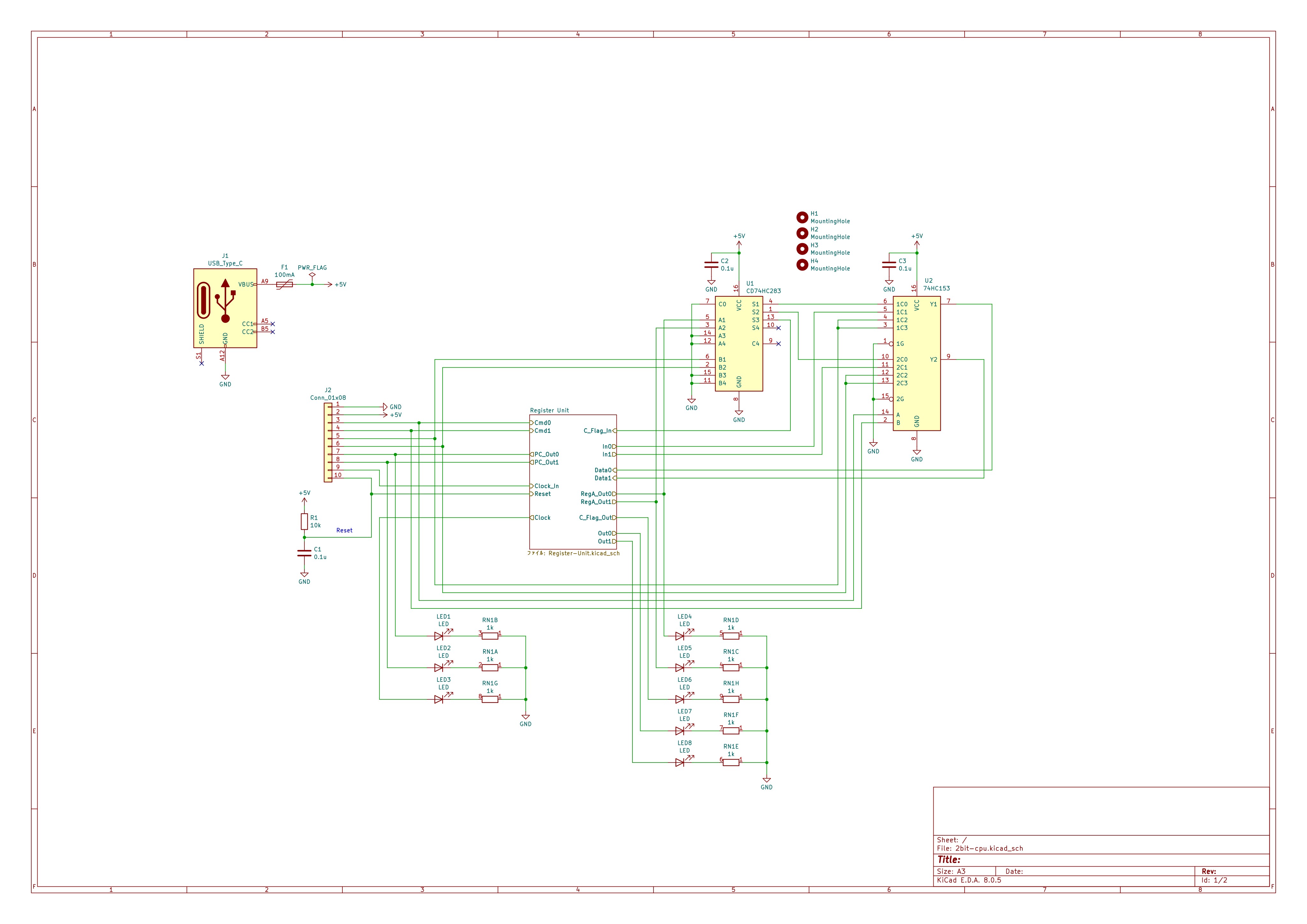

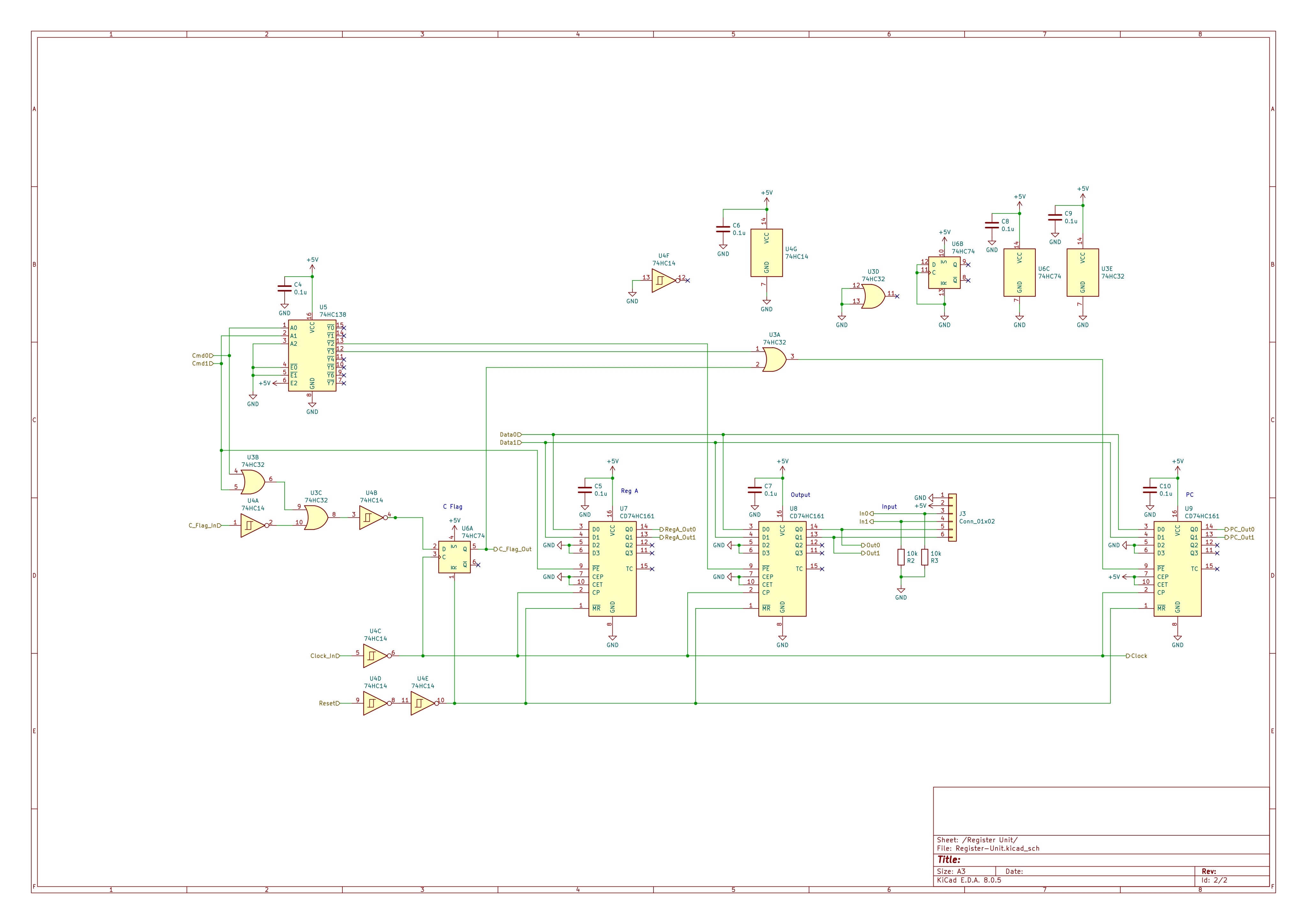

Circuit Diagram
