xenon-keyboard

Xenon is 60% columnar staggered keyboard.

xenon-classic

Full feature version Xenon

  • Cherry MX and Kailh low profile key switch support
  • OLED display
  • Full color LED
  • Prototype board area (behind the promicro)

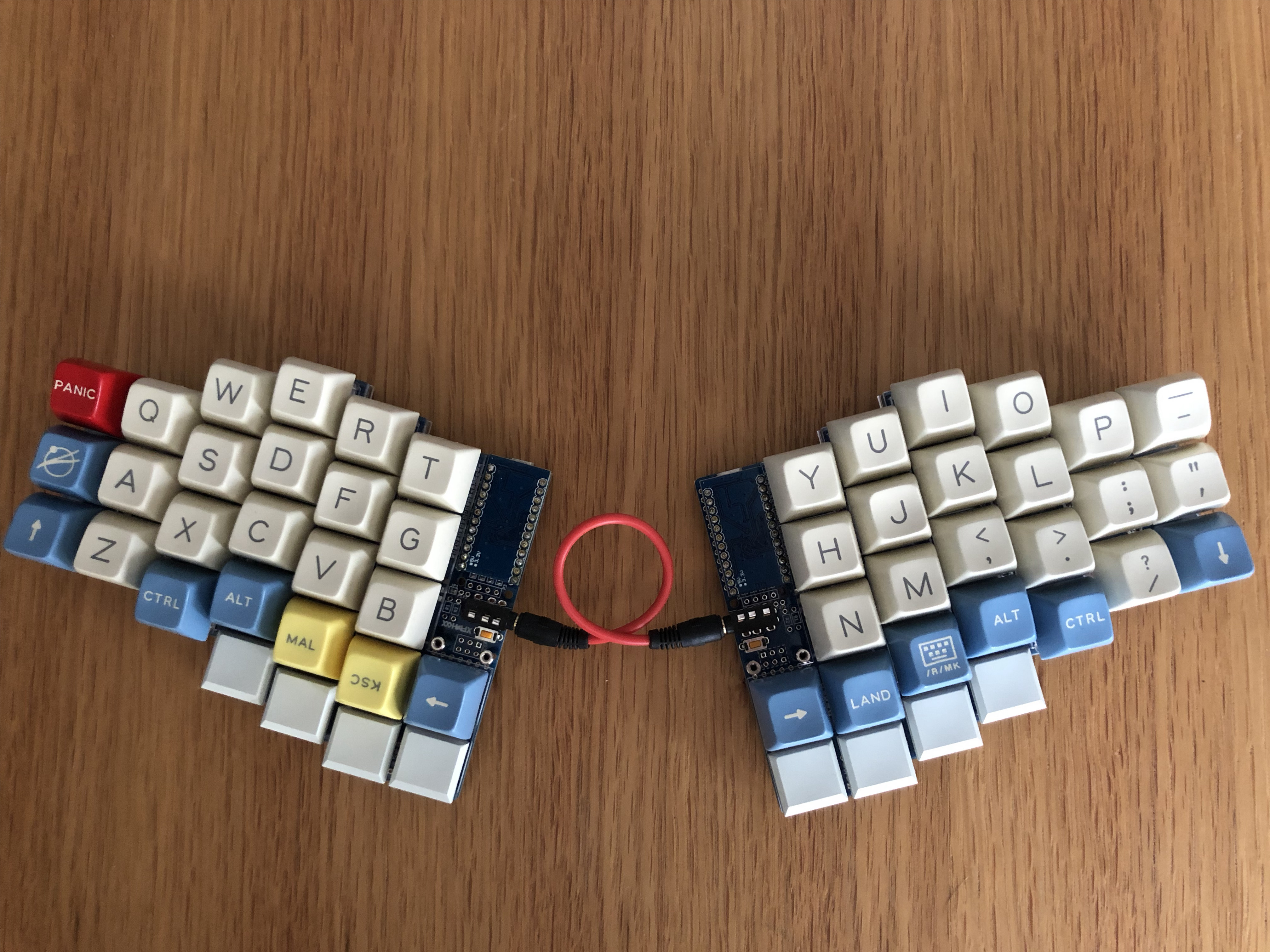

Xenon with Godspeed custom SA keycap

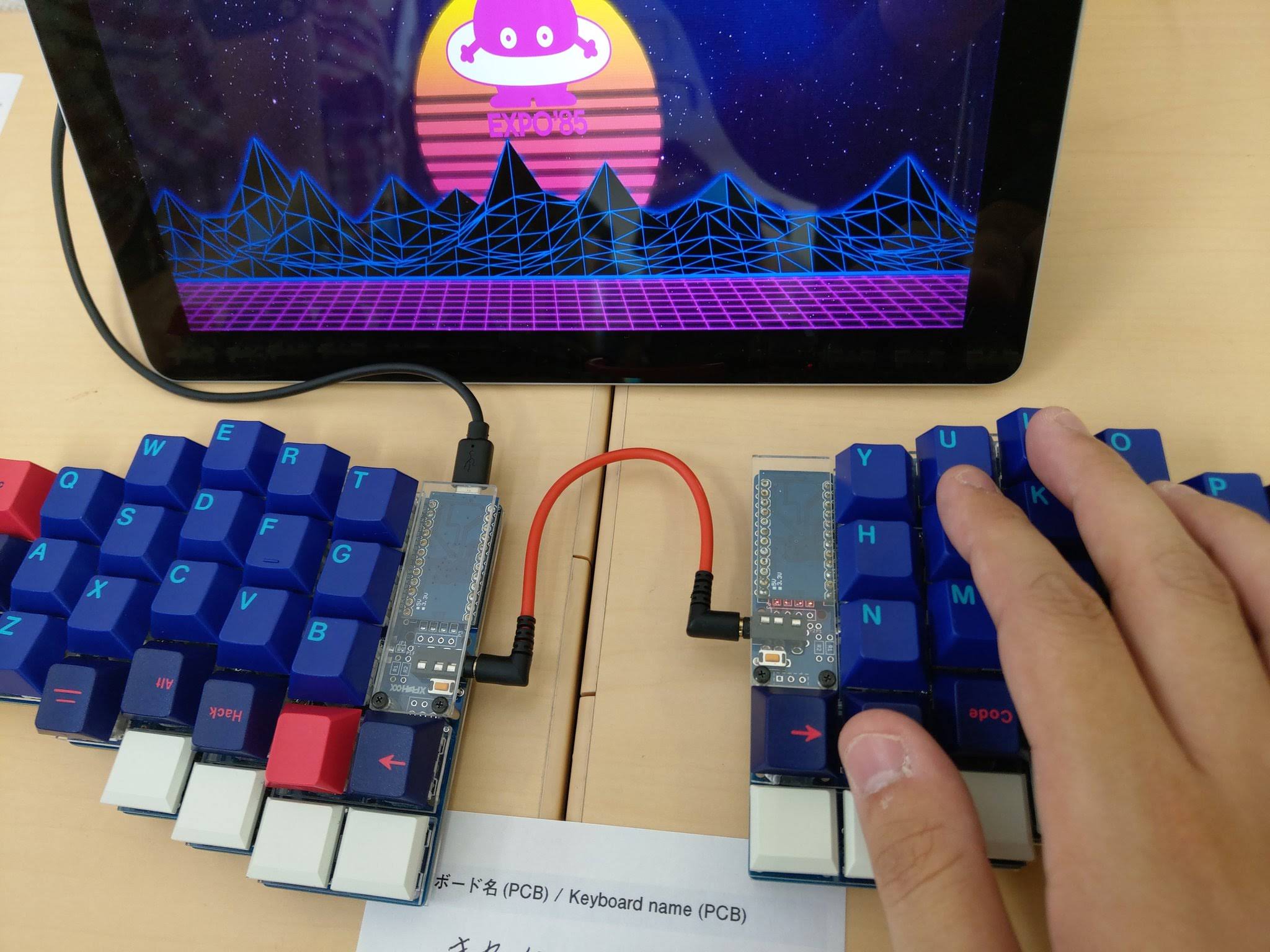

Xenon with MiTo GMK Laser custom keycap

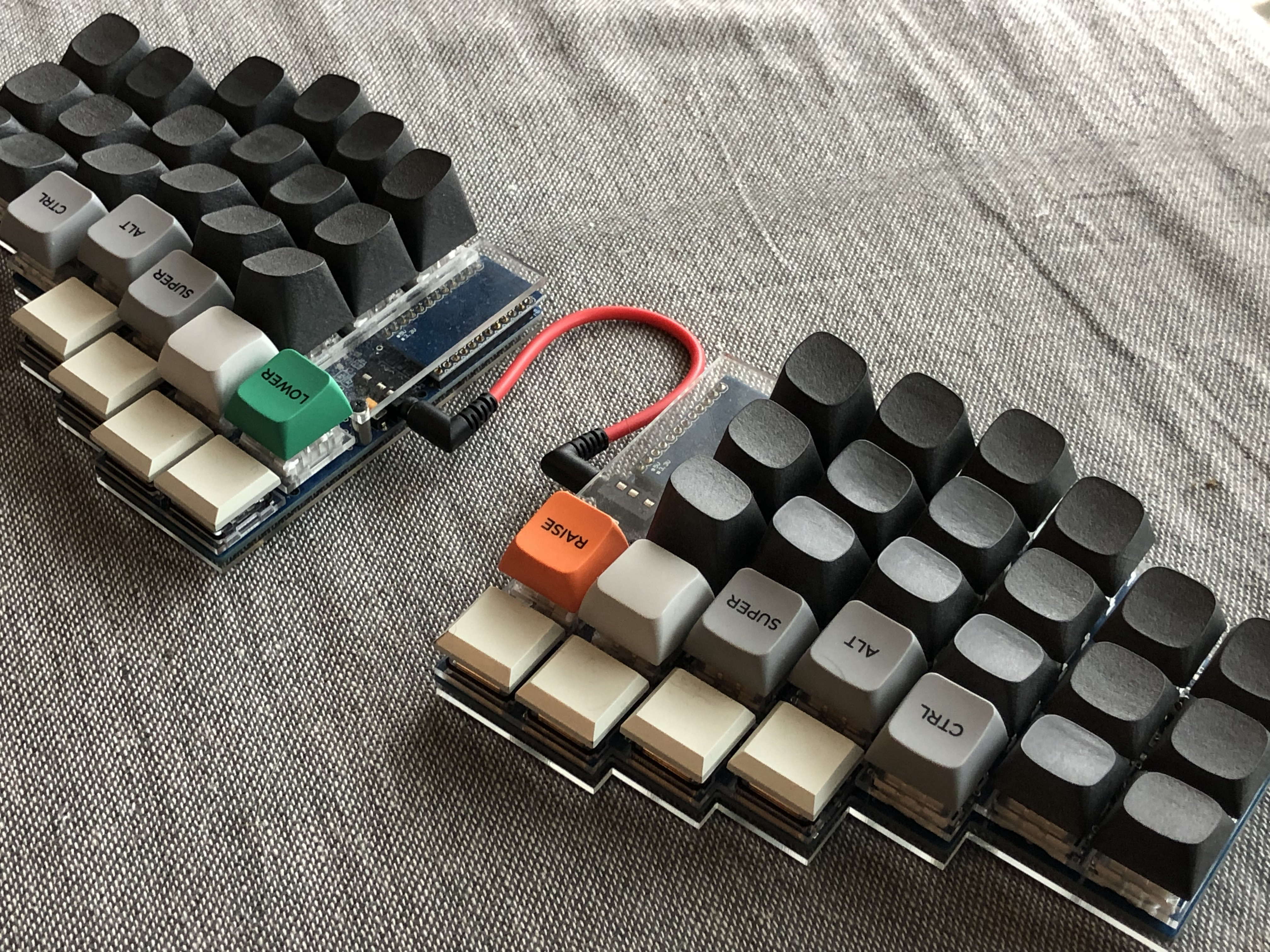

Xenon with MDA BigBang and 3D printed keycap
