README

Siemens 6ES7 274-1XF30-0XA0 – KiCad + Gerber

Een reverse engineering van de Siemens 6ES7 274-1XF30-0XA0 module.

Dit project is uitsluitend bedoeld voor educatieve doeleinden.
Er is geen sprake van inbreuk op auteursrechten.
Alle rechten zijn voorbehouden aan de oorspronkelijke eigenaar.

Inhoud:

  • KiCad-ontwerpbestanden
  • Gerberbestanden

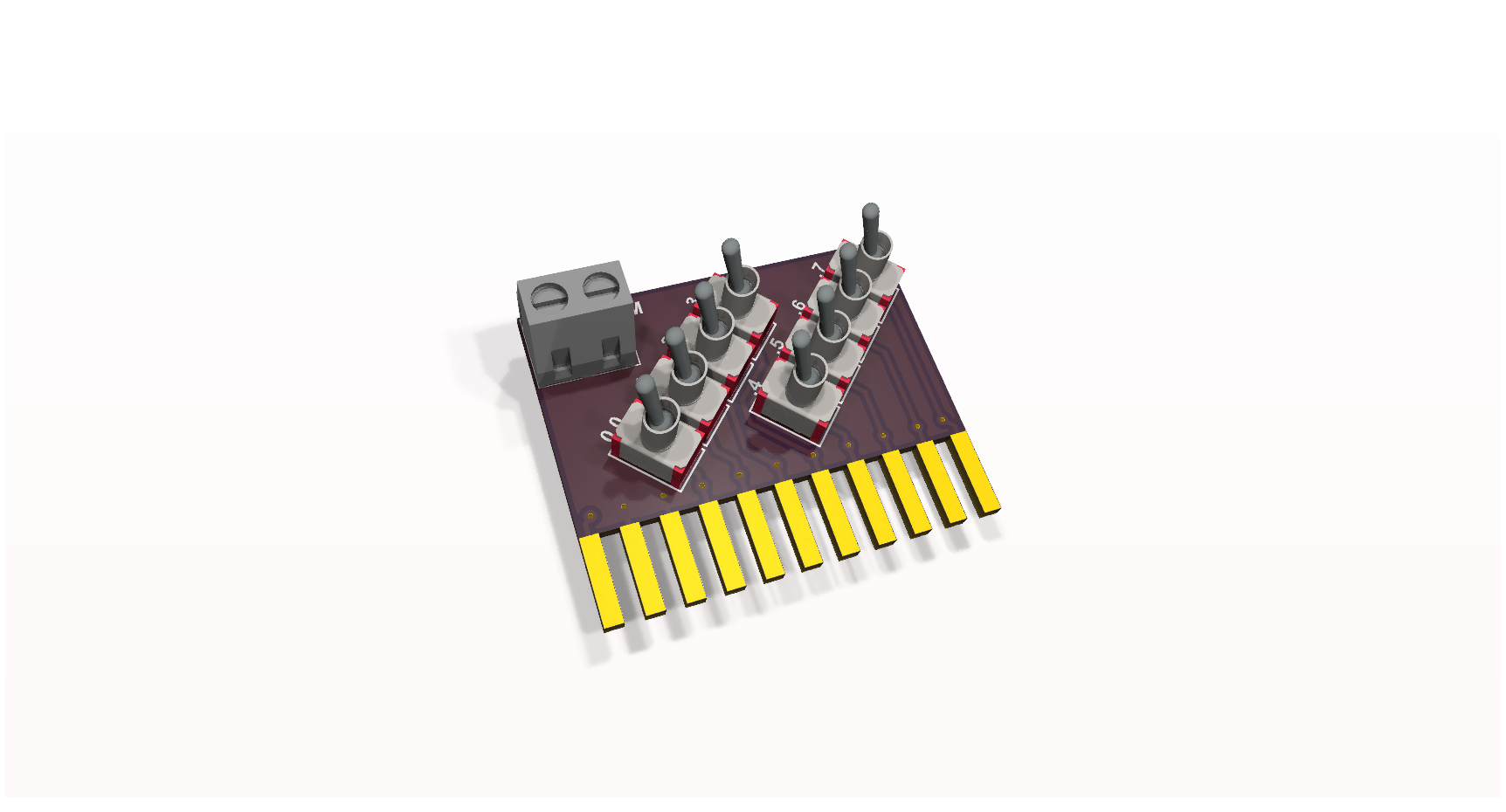

Render / Afbeelding:
