README

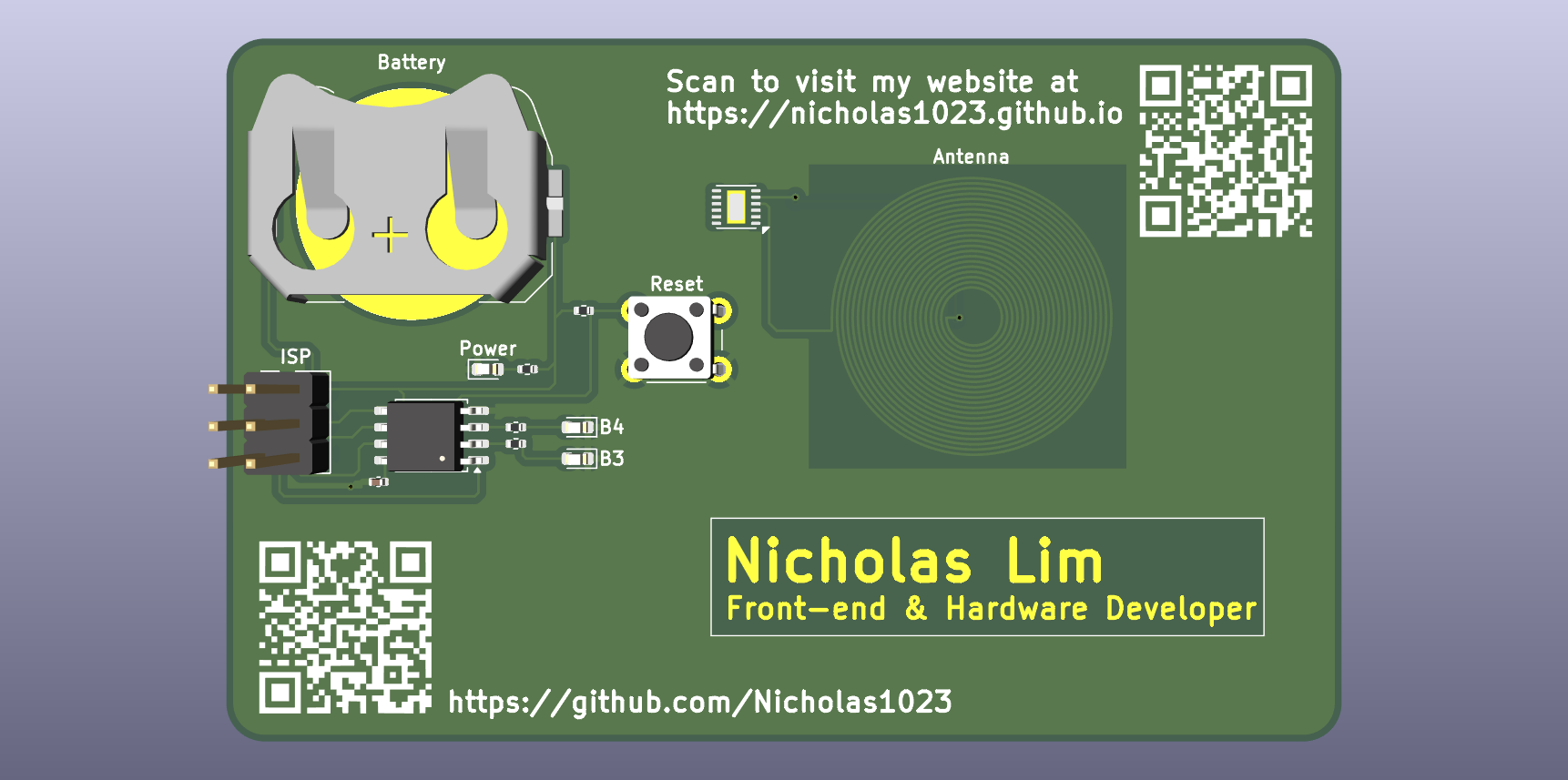

My PCB Name Card

My PCB name card has a microcontroller that lights 2 LEDs as it's output. It also has wireless capabilities on it. The card uses a 3V CR2032 battery to power it.

Schematic

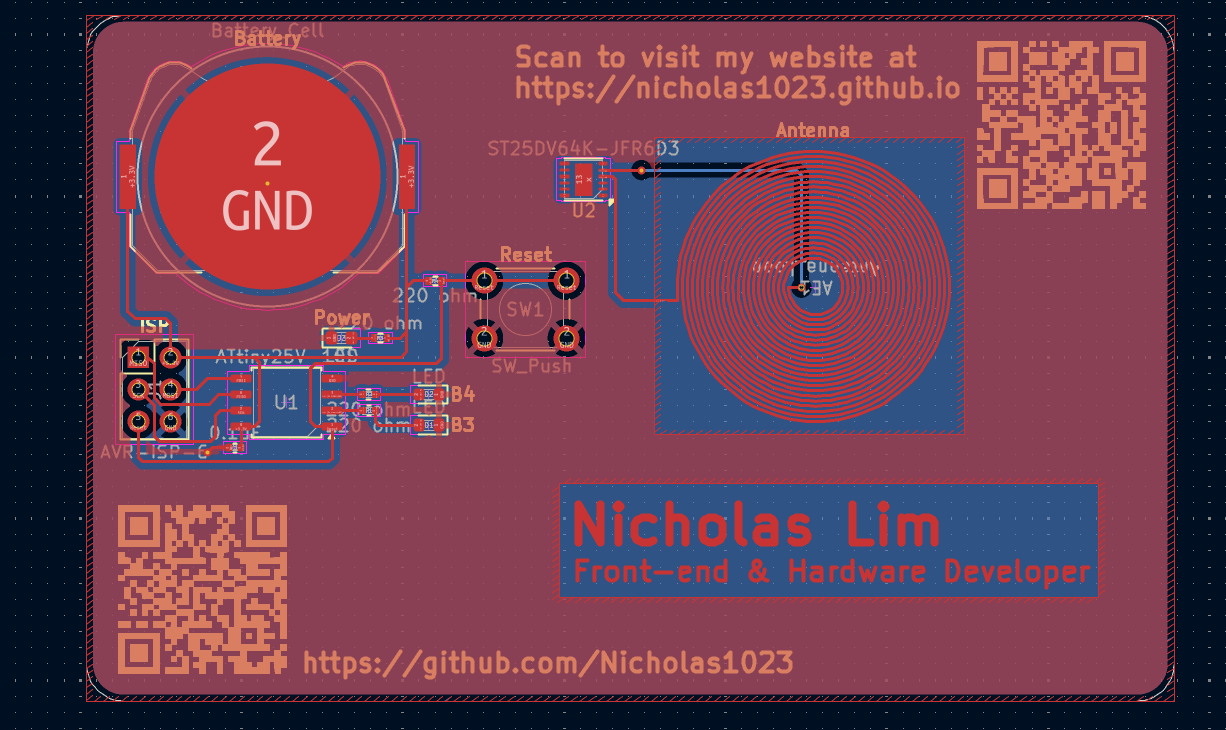

PCB
