Imported from GitHub: niklasekstrom/flickerfixer · commit 2949a73 · license CC0-1.0

Description

An open source flicker fixer for Amiga 500/2000

README

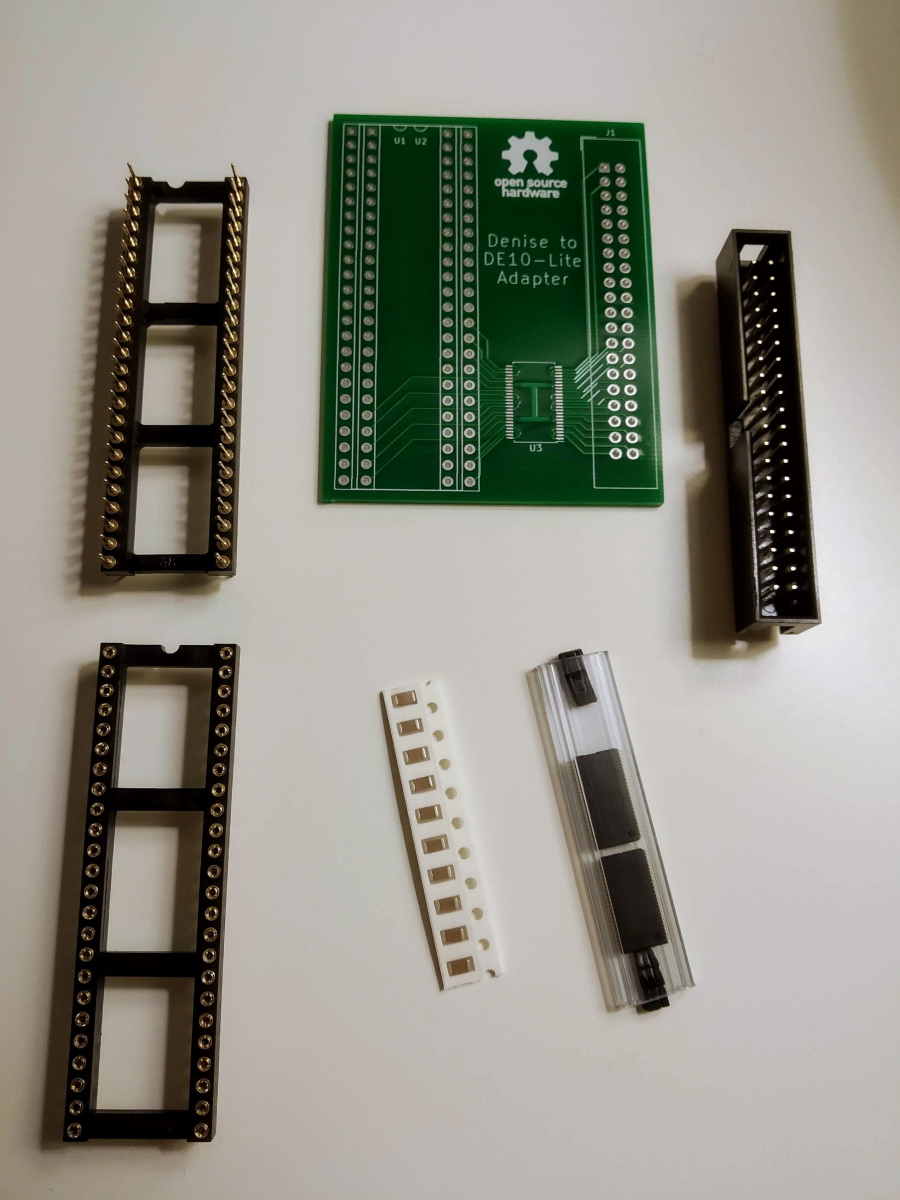

Components

• A single 74LCX16244 buffer chip is used to translate 5V to 3.3V.
• Four 100 nF decoupling capacitors, 1206 size, are mounted on the back of the PCB.

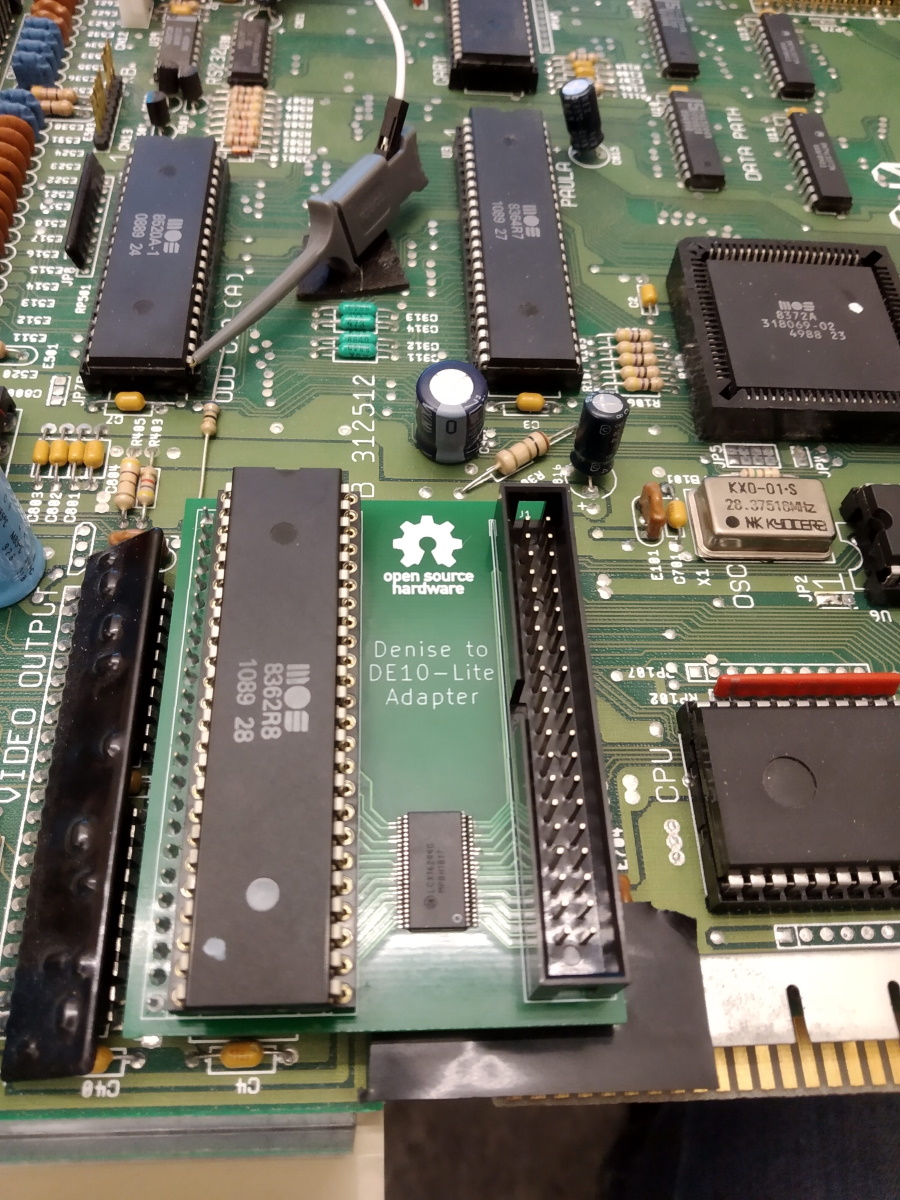

• A 48 pin DIP socket.
• A 48 pin DIP socket whose pins going both up and down, and the legs going down are thinner.

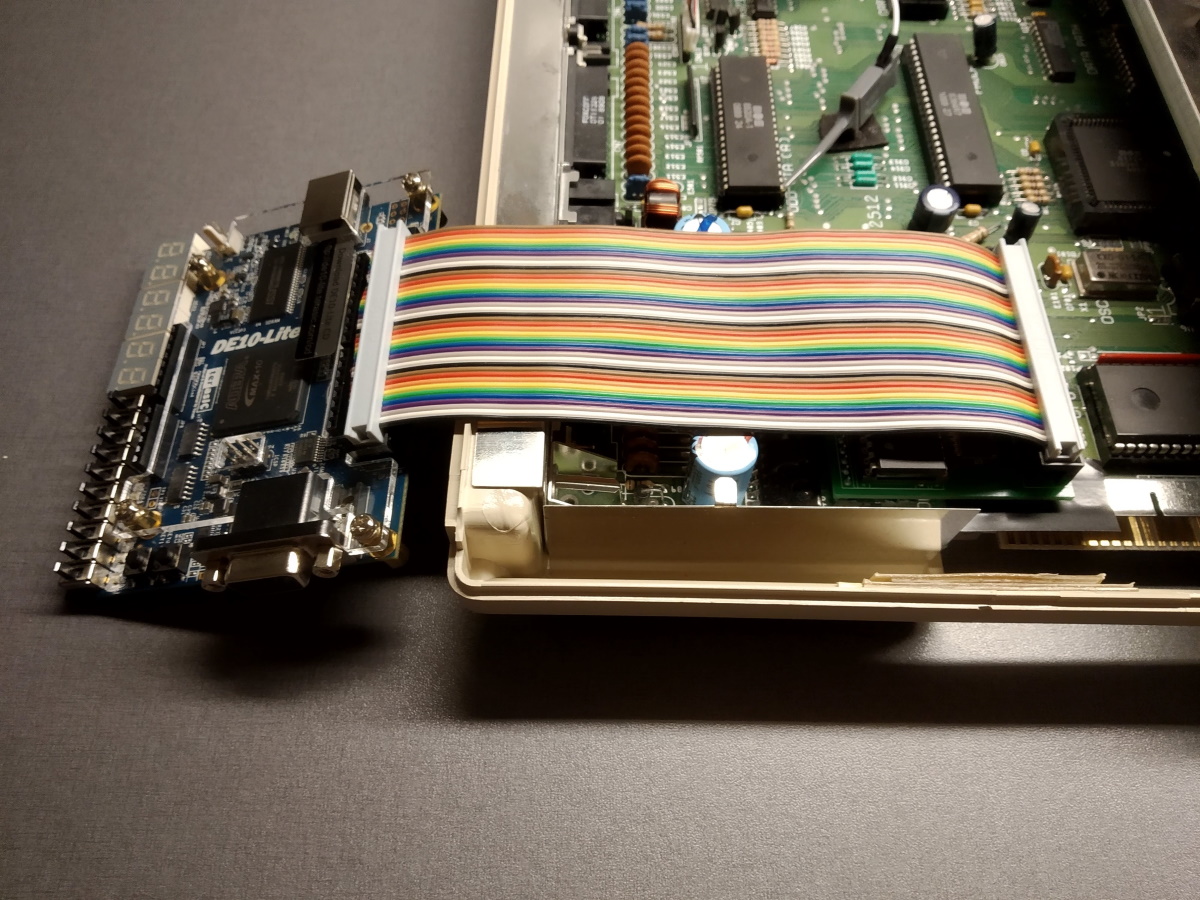

• A 2x20 pin ribbon cable connector.
